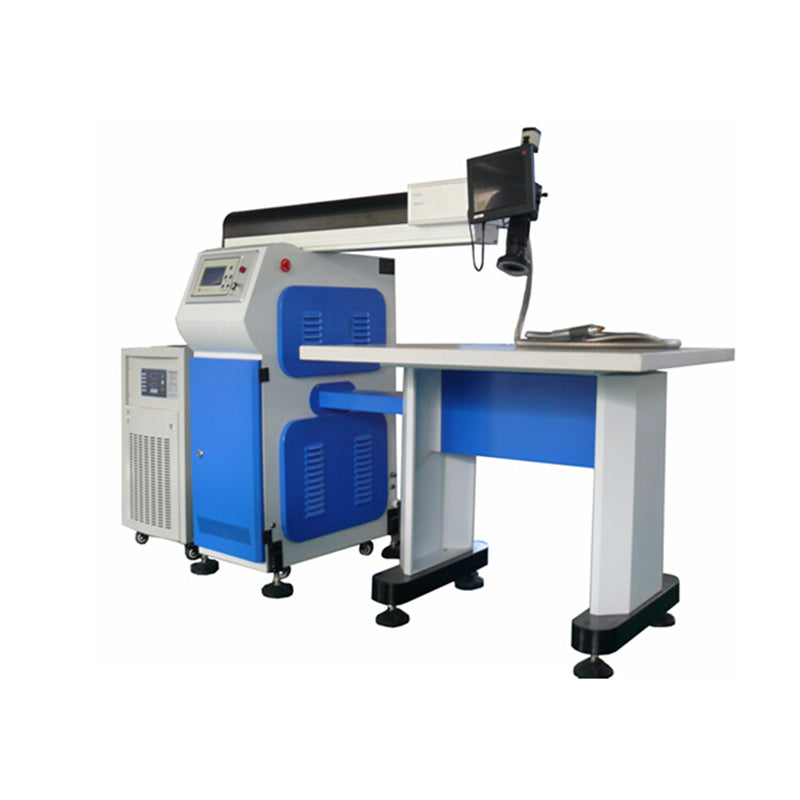

Ving 300W Dual Optical Path Laser Welding Machine for Fine Metal Channel Letter Making

Original price $12,299.00 - Original price $12,299.00
Original price
$12,299.00
$12,299.00 - $12,299.00
Current price $12,299.00

Note: This laser welder can weld small, big size and complex metal letters, LED illuminated letters, customized metal signage, and exterior billboards.

Description:
1 Standard YAG Laser Welding Head + 1 handheld Fiber Transmission Laser Welding head with 5m fiber line.
Standard welding head can weld small size metal channel letters within 80cm, and the handheld fiber head can weld big size (Up to 80cm size) metal letters, and place difficult to welding.
With CCD camera, Ceramic focusing cavities, laser head can 360 degree rotate.
Applicable these materials: Stainless steel, Iron, Galvanized sheet, Titanium, Aluminum, thickness is within 1.2mm. (For welding aluminum, You’d better choose 400W laser welder)
This Laser Welder includes four parts: laser beam+ power box, cooling system, marble table

Advantages:
Red light spot fast positioning, CCD display, microscope optional.
Fast working speed; professional jig ensures the focus fixed and makes welding easier without using CCD or microscope.
Slight distortion and affect by heating.
Capable of partial heating process.
Able to deal with complex, profiled, or tiny letters welding.
Low noise and no pollution.
Ultrafine positioning rod makes the welding of tiny corner easier without changing spot position.
New metal processing technology brings higher quality of end products.
