Experts on Printing Quality

test image

test image

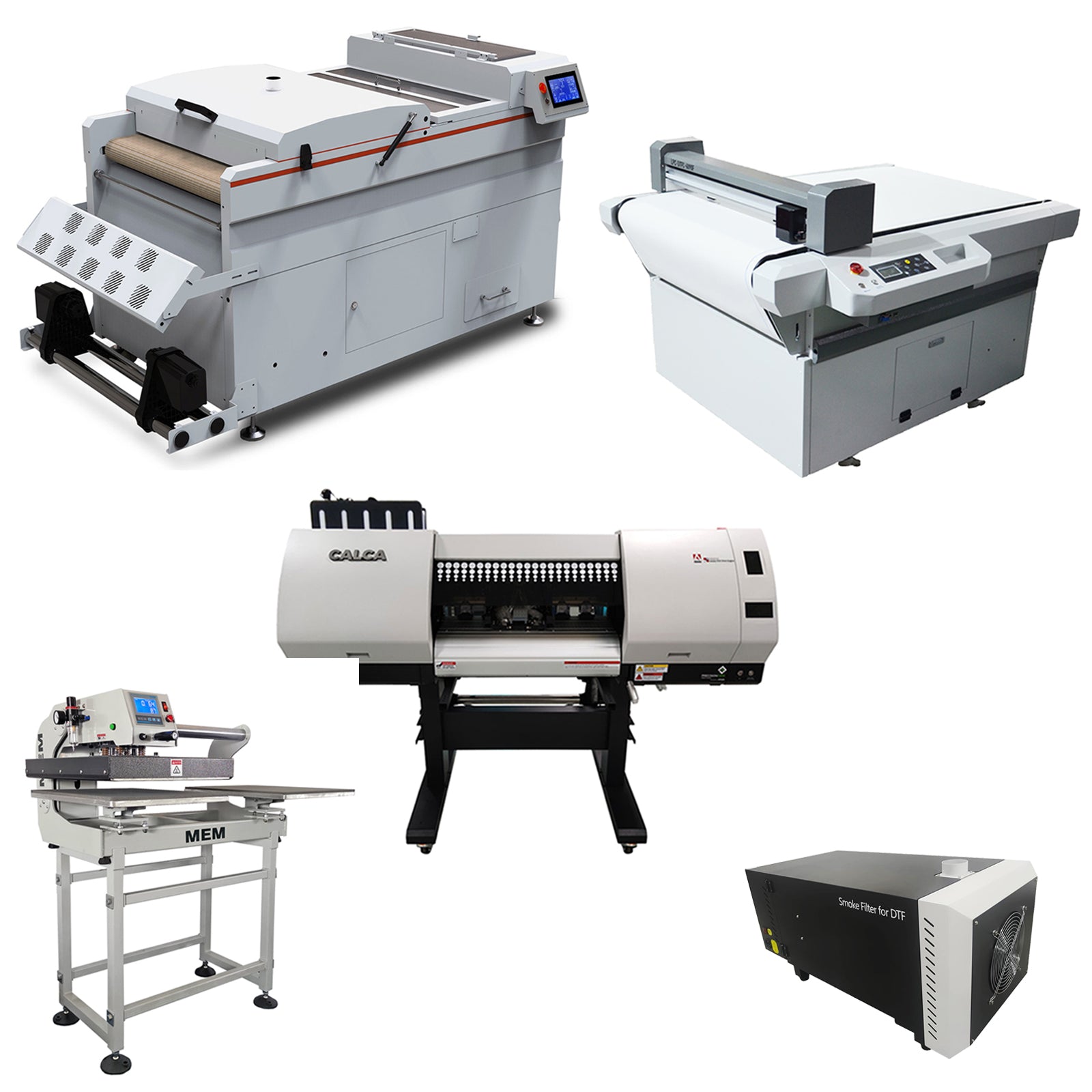

CALCA Ultra PRO II 24-inch DTF Ultimate Bundle (with MEM)

Original price $33,899.00 - Original price $33,899.00
Original price
$33,899.00
$33,899.00 - $33,899.00
Current price $33,899.00

CALCA Ultra series DTF printer is built for production workshops & factories.
This DTF printer leads the development of technology and durable products in the DTF markets, drive performance and efficiency in DTF products.

Features
√ CALCA control system, the leading brand from independent R&D team.
√ Self-developed control system and RIP Software.
√ Touch screen control panel makes everything easier.
√ Ultra-high stability, from unified development, not patchwork.
√ Processional, Obtain the Adobe PDF Print Engine certificate, maximum efficiency performance, control, automate and optimize full-gamut rendering.
√ Perfect combination of RIP and printing management in same software.
√ Durable housing, high efficiency output.
√ Dual-head technology, designed for high volume production.
A dual print-head system prints colors in perfect sequence to achieve maximum life and vibrancy. The first Print Head lays down a mix of CMYK colors, while the second print head prints a perfect white underbase on top of the colors, ensuring you don’t see any white ink.

Technical Specs:

24in (620mm) maximum print width
Dual Epson I3200-A1 Printheads (CMYK - WWWW)
1.8 Liter per color ink bottle capacity
4 Pass 6 Pass and 8 Pass Print Resolution
Printing Speed: 4 pass: 12m²/ h; 6 pass: 8m²/ h; 8 pass: 6m²/ h
Printing Resolution: 720 x 1200dpi; 7200 x 1800dpi; 720 x 2400dpi (4Pass, 6Pass, 8Pass)
Printing Software: DTF Fairy RIP Software
Control System: CALCA Control System
print head cleaning: Automatic
Rewinding Function: Automatic
Printer Size: 69.5in x 27.6in x 53.3in (1765mm x 700mm x 1355mm)
Printer Weight: 396lbs (180kg)
Packing Size: 73.6in x 39.4in x 28.7in (1870mm x 1000mm x 730mm)
Gross Weight: 440.9lbs (200kg)

Requirements:
• Working Power Supply: AC110V, 50HZ / 60HZ, 1 phase.
• Current: 11A, 1200W
• Operating System: XP / Win7 / Win10
• Interface: Gigabit Ethernet

• Temperature control set to 20-35°C (68°F-95°F) and 45% - 65% humidity

CALCA PLUS 24in Automatic DTF Powder Shaker and Dryer with Vacuum Absorption Conveying Platform and Touch Screen

CALCA PLUS 24in automatic DTF powder shaker and dryer with vacuum absorption conveying platform and touch screen display, suitable for 2 heads high speed DTF printers.
With a touch screen display controller, simple to use.
Infrared drying and heating improves and protects color reproduction.
With a absorption conveying platform secures the printing material to avoid bulging, run-offs, adhesion and media waste.
CALCA DTF powder shaker and dryer unit can handle up to 24in wide DTF film.
With the advancement in DTF technology, there is no denying that DTF is taking the printing industry by storm. It is quickly becoming one of the most popular technologies for textile printing compared to traditional printing methods.
This all in one dtf powder shaker unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
The vacuum absorption conveying platform secures the printing material to avoid bulging, run-offs, and media waste.
Applicable Medium: Nylon, Chemical Fiber, Cotton, Leather, Swimsuit, Diving Suit, PVC, EVA, etc.

Specifications:
CALCA Brand: USA registered
Maximum Shake Powder Width: 600mm (23.6inches)
Functions: Shake powder control, dusting control, PID setting of curing temperature
Heating Element: 4pcs Quartz infrared heat drying tube
Rewinding Function: Automatic induction rewinding
Heating and Drying Mode: Front guide plate heating, upper drying curing
Cooling Mode: 9 fan air cooling (2 row)
Machine Size: 76.9in x 39.5in x 43in (1953mm x 1002mm x 1092mm)
Power Shaker and Dryer Weight: 528lbs (240kg)
Packaging Size: 70.5in x 44.1in x 44.5in (1790mm x 1120mm x 1136mm)
Gross Weight: 638lbs (290kg)
Powder spreading structure: The motor drives the brush to rotate to brush the hot melt powder out of the powder box.
Powder shaking device: the motor drives the powder shaking lever to beat the film to clean up excess hot melt powder.
Requirements:
Working Power Supply: AC110V, 50hz / 60hz, 1 phase.
Current: 45.5A, 5000W
With CALCA DTF film, power and Inks, you can easily and quickly create custom t-shirts and apparel.
Remarks:
CALCA DTF powder shakers do not have automatic powder recycling function, in order to avoid hot melt powder moisture.

Features:
· With a warming inlet platform, automatic powder dispenser, paddle to remove excess powder, 4 bulb tunnel dryer and roll up at the end.
· This all in one unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
· Infrared drying and heating improves and protects color reproduction.
· Customized powder recycling drawer, increases effectiveness.
· Shake powder control, dusting control, PID setting of curing temperature.
· Automatic powder feeding, evenly spreading powder.
· The vacuum absorption conveying platform secures the printing material to avoid bulging, run-offs, and media waste.

CALCA Universal Filterless Electrolytic Fume Extractor, 330m³/h for DTF Powder Shakers and Sublimation Heater

Applications:
CALCA Electrolytic smoke lampblack filter / electrolyte fume filter is designed to effectively discharge and eliminate smoke and oil in the drying process from the DTF powder applicator / powder shaker, sublimation printer and heater. This will improve the quality of processed dtf transfers, and provide a clean and smoke-free working environment.

Features:
• Filter free
• Brushless motor
• Electrolytic filtration technology: No consumables, no extra cost, worry-free after sales.
• No change in suction power for several years of continuous use.

Specifications:
Rated Voltage: AC /220V± 5%
Rated Current: 1.5A
Rated Power: 325W
Max air amount: 330m³/h
Negative Pressure: 350pa
Internal Air Inlet and Outlet Diameter: Φ59mm
Filter Effect: Up to 0.5μm99.9%
Noise: ≤ 64db
Machine Size: 32.7in x 17.5in x 16.5in (830mm x 445mm x 420mm)
Machine Weight: 70.5lbs (32kg)
Package Size: 35in x 18.5in x 17.3in (890mm x 470mm x 440mm)
Gross Weight: 72.8lbs (33kg)

Package Includes:
• 1 x Fume Extractor
• 1 x Extraction pipe
• 1 x Power cord

Workflow:


CALCA 24" x 35" Auto Fed Flatbed Digital Cutter Roll Cutter For DTF Printing Film (6090G)
Flatbed cutter with conveyor feeding, a special purpose auto fed flatbed digital cutter for DTF industry with features optimized according to characters of material applied in the DTF field.
Super easy installation, one-key operation and high efficiency make CALCA 6090G a right-hand man for DTF, Heat transfer apparel industries.

Note:
The device has a CCD camera and does not have barcode scanning function. The yellow button is the standby button. If you need to scan the barcode, please contact customer service.

MEM 16" x 20" Semi-Automatic Pneumatic Double Station Heat Press with Laser Positioning System

The design of the MEM double station presses combines a heavy -duty solid industrial grade pressing framework with high quality electric components. This provides the operator with the best possible features and equipment needed for today's various heat transfer applications.
Using the MEM TQ -4050 double station heat press, all common heat transfer processes (flock, flex, sublimation, transfer, Inkjet - ­flex etc.) can be conducted professionally and with highes productivity. The desired settings can be set easily with the temperature controller. The pneumatic pressure can be regulated smoothly with the air reducing valve. With the restriction valve on the solenoid valve, the press and lift speed could be adjusted.

Features:
1.Pneumatic double station transfer press for medium and large batches.
2.Pressure balancing system on heat plate and bottom plate.
3.Operates in semi-automatic or manual modes.
4.Adjustable air pressure by air reducing valve with water separator.
5.Two-hand operation for safety use.
6.CE certificated and RoHS certificated.
7.Powered by an air compressor (not included)
8.Includes teflon sheet on the heat palte.
9.Table and bottom stand included.
10.Laser Positioning System included.
11.Lifetime factory on-line service.

Specifications:
Voltage and power :110V /1800W/17A
Check voltage at back side of the head
Time Range: 0-999sec.
Max. Temp. 500°F /260°C
Heat plate size: 16"x 20"(40cm x 50cm)
Dimensions(LxWxH): 42"x28"x23"(108cm x 73cm x 59cm)
Shipping Dimensions(LxWxH): 49"x31"x25"(123cm x 77cm x 65 cm)
Shipping Weight: 320lbs(145kg)
