3000DG Thermolysis Industrial Water Chiller for CO2 Glass Tube of Engraving Machine, AC 1P 110V, 60Hz
Description

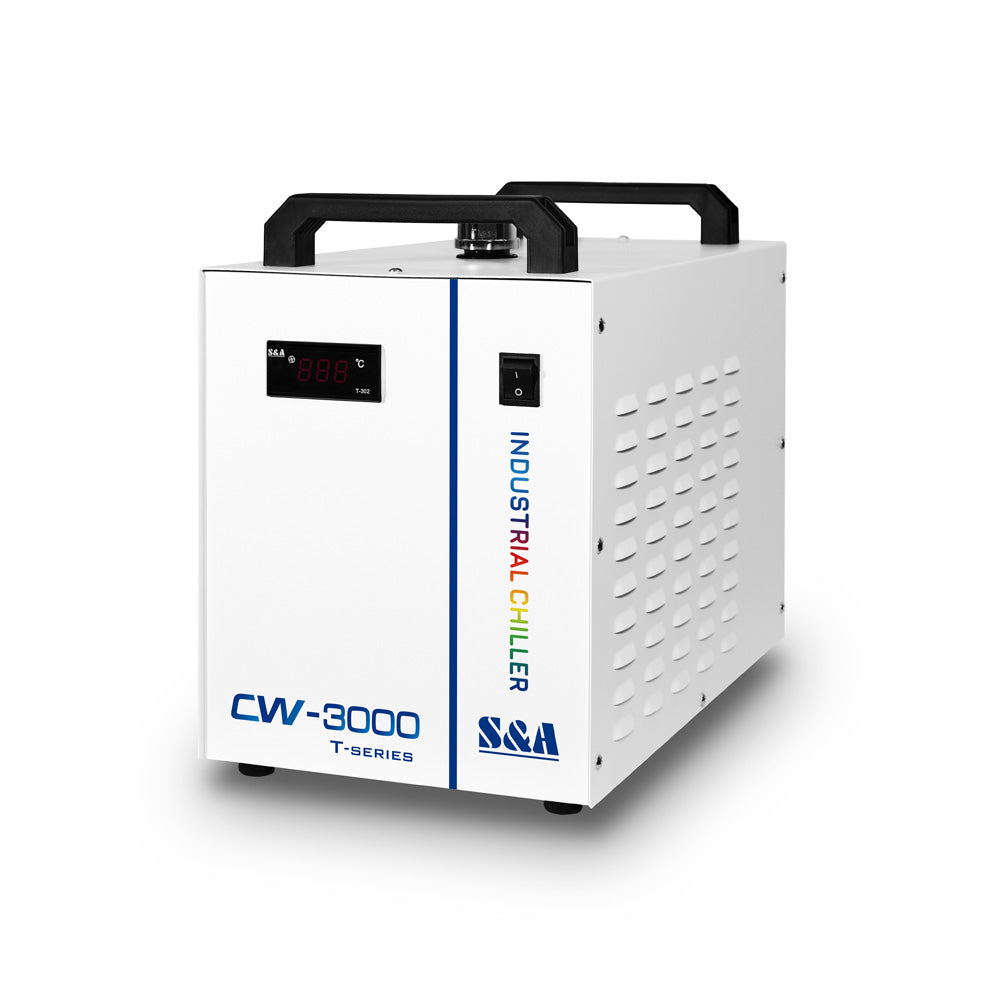

S&A CW-3000 series thermolysis type water cooler has compact design,with energy saving,high cost performance,good protection and alarm system.This Water Chiller has been sold largely to Europe, South America, Asia and other markets;
Economic cooling equipment, easy to install and operate, compact and easily movable.
Used for:
Features：
- Specific disconnection alarm securing protection;
- High cost performance, low failure rate;
- Radiating Capacity is 50W / ℃;
- Forces circulation, 9L cooling tank capacity;
- It can extend the using life of laser tube and ensure the engraving effect better.
- Comprehensive reference to the international radiator - type cooling system;
- Small thermolysis water cooler;
- With completed water flow and over high temperature alarm functions;
- Professional forced air - cooled radiator;
- CW-3000 Laser Water Chiller is suitable for small water cooling device;
- Provide stable working conditions for laser devices;
- High heat dissipating capacity and not easy to be blocked.
Specifications
| Model | CW-3000DGTY | ||
|---|---|---|---|
| Voltage | AC 1P 110V | ||
| Frequency | 50/60Hz | ||
| Current | 0.4~0.9A | ||
| Machine power | 0.07kW | ||
| Radiating capacity | 50W/℃ | ||
| Pump pressure | 1bar | ||
| Max.flow | 10L/min | ||
| N.W | 9Kgs(19.8lb) | ||
| G.W | 11 Kgs(24.3lb) | ||
| Protection | flow alarm | ||
| Tank capacity | 9L | ||
| Inlet and outlet | OD 10mm barbed connector | ||
| Dimension | 49cm x 27cm x 38cm (19.3" x 10.6" x 15") | ||
| Package dimension | 55cm x 34cm x 43cm (23.2" x 15.4" x 18.9") | ||
CONTOUR AND PARTS INTRODUCTION
Adopt IPG fiber laser for welding and cutting sheet metal, adopt minimize risks of water and refrigerant leakage and improve quality
Digital temperature display
The digital temperature display is able to indicate water temperature and alarm codes.
Ease of moving and water filling.
The firm handle can help move the water chillers easily.
Inlet and outlet connector equipped. Multiple alarm protection.
The laser will stop working once it receives alarm signal from the water chiller for protection purpose.
High speed fan
The high speed fan is installed to ensure high cooling performance.
Easy water draining
It is suggested to replace the cooling water(distilled water or purified water as cooling water) every 3 to 6 months.
Connection diagram between water chiller and laser machine
Water outlet of the water tank connects to water inlet of the laser machine while water inlet of the water tank connects to water outlet of the laser machine. Aviation connector of the water tank connects to the aviation connector of the laser machine.
FLOW ALARM AND OUTPUT PORTS
In order to guarantee the equipment will not be damaged while cooling water circulation is out of control, CW-3000series water cooler possess a low flow alarm protection.
(1) Flow alarm output ports and the wiring diagram
(2) ALARM DESCRIPTION
Causes of the cooling water circulation alarm and the working condition table
Note: The flow alarm is connected to the normally open relay and normally closed relay contacts, requiring operating current less than 5A, working voltage less than 300V.
MAINTENANCE
Method of exchanging water in the water tank and the exchanging frequency
Method of exchanging water in the water tank
Drain the waste water out of the water tank through the drain outlet and fill the clean water into the tank through the filling hole
Exchanging Frequency
The purified water should be exchanged once a month and the running water should be exchange twice a month. The quality of the circulating water will directly influence the service life the laser tube.It is recommended to use purified water.
Installation
It is very simple to install this industrial cooling machine. The first time installation of the new machine can be carried out by following steps.
Open the package to check if the machine is intact and all the necessary accessories are completed. |
Open the injection port to feed cooling water. (Do not let the water spill over!) |
According to system conditions, please connect the water inlet and outlet pipe well. |
Plug in power, turn on the power switch. (Do not start up without water in the water tank!)(2) After the first boot, you must immediately check whether the water pipe leaks. |
Check the water level of the water tank again. (It should be 80-150cm from the surface of water to the injection port) |
Cautions
Please ensure that the power supply and electrical outlet are in good contact and the earth wire must be firmly grounded! |
Please make sure there is stable and normal voltage for the working chiller! |
Unmatched power frequency can cause the chiller damage! |
To protect the pump, it’s strictly forbidden to run the chiller without water in the storage water tank!To drain through circulating pump is strictly prohibited! |
Please be sure that the air inlet and air outlet are in good ventilation! |
The cooling water must be drained if the cooler is out of use for long time or before being transported. |
|
