Xerox Drive Module (XDM) M-Series, HDMI

$2,566.54
$2,566.54
Shipping calculated at checkout.
    Xerox Drive Module (XDM) M-Series, HDMI
    Xerox Drive Module (XDM) M-Series, HDMI

    Tech Specs

    Description

    This Drive Module (XDM) W-Series, HDMI is suitable for Xerox M-Series printheads. This is the original Xerox part (number 109K02911).

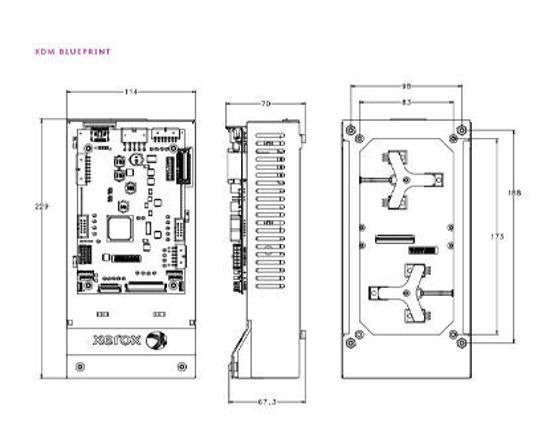

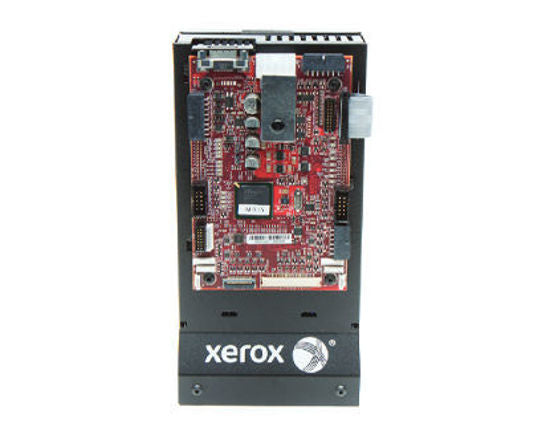

    The XDM is a complete electronics drive system for Xerox® printheads. It features the waveform amplifier and the printhead interface board, and can control many other valves, solenoids or motors.

    Features and benefits:

    • Enables System Integrators to connect the drive module to either the M-Series or W-Series Heads — daisy chain up to 8 heads.
    • Control components in the solution delivery system, such as pump/valve control.
    • Automatically send printhead executable commands
    • Monitor and control thermals of the printheads
    • Interfaces with the printhead to hide missing jets

    Specifications

    • Compatible Heads : Xerox ® M-series
    • Thermal Control: with optional daughter board
    • Interface:  PCIe 1 lane over standard HDMI cables, 180MB/s transfer
    • Software: Custom Xerox® Driver and API, Microsoft Windows OS only
    • Page Timing Inputs: Quadrature encoder, dot clock and page start, RS422 differential or single ended
    • Motor Control: Drives two small stepper motors
    • Solenoid Control: Up to 4 solenoids, PWM drive voltage
    • Analog I/O: 2 inputs, 3 outputs, 0v-10v
    • Digital I/O: 6 general purpose 3.3v I/O signals
    • Power Supply Requirements:
      • + 5v @ 1.2A
      • +15v @ 1.2A
      • -15v @ 400mA
      • +50v @ 2.2A
      • -50v @2.2A
