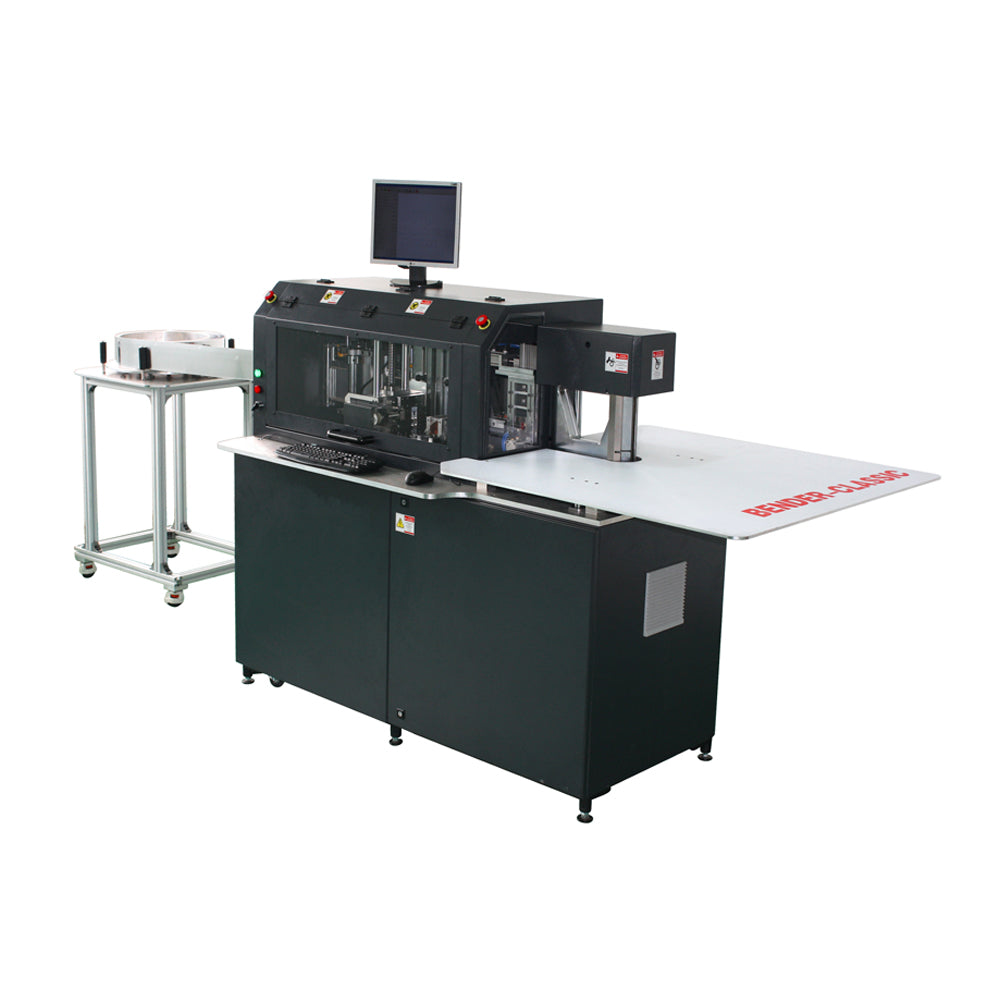

Ving Multifunction Automatic CNC Metal Channel Letter Bending Machine (with notching and flanging function)

$39,000.00
$39,000.00
Shipping calculated at checkout.
    Ving Multifunction Automatic CNC Metal Channel Letter Bending Machine (with notching and flanging function)

    Tech Specs

    Important:
    The air pump and computer is not included, please prepare it by yourself.The air pump should be above 0.6Mpa and computer should be XP or W7 32/64-bit with PCI slot.

    Specifications

    • Material height: 70mm - 180mm (2.756in - 7.09in)
    • Material thickness: 0.6mm - 2.0mm (0.024in - 0.0787in)
    • Width of flange: 6mm-14mm (0.24in - 0.55in)
    • Notch depth: 10mm - 12mm (0.39in - 0.47in)
    • Notch size: 30º and 105º
    • Bending angle:  0º - 120º degree
    • Feeding speed: 36m / min (118ft / min)
    • Min radius for circle: R10
    • Cutting: Air - oil boost up cylinder
    • Air: 90psi (6bar) at 1cfm
    • Power: 220V / 380V, 3Phase, 50 or 60 HZ, 15Amp
    • Machine Physical layout: 3700mm x 1200mm x 1500mm (146in x 47in x 59in)
    • Net weight: 700kg (1540lbs)
    • Packing Size: 1980mm x 1030mm x 1500mm (78in x 40.6in x 59in)
    • Gross weight: 860kg (1892lbs)
