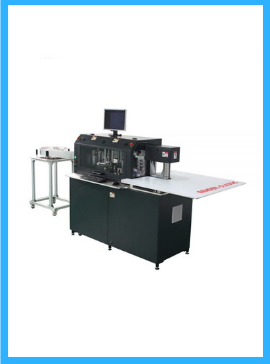

Ving Multifunction Automatic CNC Channel Letter Bending Machine

Automatic CNC Metal Channel Letter Bending Machine
BENDER CLASSIC CNC metal channel letter bender is the machine with full function: auto feeding, auto notching, auto flanging, auto bending and auto cutting. BENDER CLASSIC is the enhanced version of BENDER A. Besides all the functions of BENDER A, it can work with 2mm Aluminum.
All the mechanical structure, hydraulic system is designed to 2mm Aluminum.
Automatic CNC BENDER Function Comparison

Features
• 1. The interface of the software is very friendly. It can accept all kinds of DXF files such as created by ILLUSTRATOR, CASMATE, TYPE3, ARTCAM, FLEXISIGN, ENROUTER, CORELDAW etc.
• 2.The times and the depth of the v-slotting can be adjusted in the software. It’s very easy to use.
• 3. Hydraulic station controls the notching and flanging function. It’s very powerful and fast and the cutting surface is very smooth without any burrs.
• 4. Servo system controls the bending and slotting functions with high speed and high precision.

Specifications
Material height: 70mm-180mm
Material thickness: 0.6--2.0mm
Width of flange: 6mm-14mm
Max bending angle: 120
Feeding speed: 36m/min
Min radius for circle: R10
Cutting: Air-oil boost up cylinder
Air: 90psi（6bar）at 1cfm
Power: 220V , 3Phase 60 HZ, 15Amp
Machine Physical layout: 3700L x 1200W x 1500H
Net weight: 700kg
Packing Size: 1980mm x 1030mm x 1500mm
Gross weight: 750kg

Remark:
The computer is not included, please prepare it by yourself.
