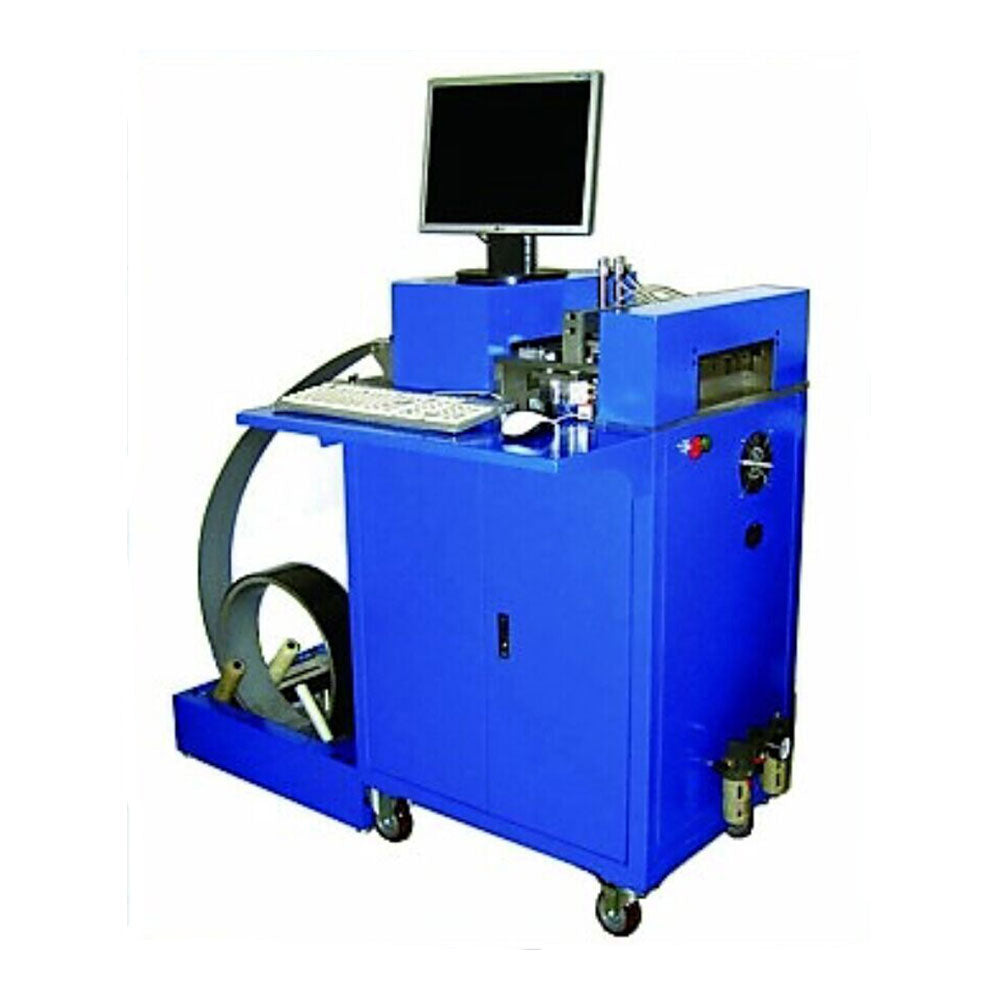

Ving CNC Notching Machine Notcher for Metal Channel Letter, Single Side Notch

Description:
1.This Metal Channel Bender Making CNC Notcher is Single Side Notch, its' Notch angle: 30° and 105°, Notch depth: 4mm-16mm.
2.This CNC Notcher is especially used for channel letter notching. Input the design or letter in DXF into the machine, CNC Notcher will fully automate notching accurately.

Material handling capabilities:
Width: 60-180mm (2.36-7.09in)
Aluminum Coil Thickness: 0.016-0.047"(0.4mm~1.2mm)

Specification:
Notch angle: 30°and 105°
Notch depth: 0.16-0.63"(4mm-16mm)
Notch sides: One side
Voltage: Single phase AC110V/220V
Frequency: 50/60HZ
Air pressure: 0.8Mpa
Air flux: 0.1 m3/min
Physical layout: 86.6*63*31.5"(L2200*W1600*H800*mm)
Net Weight: 440.9lb(200kg)
Packing Size: 40.5*32.7*58.3"(1030*830*1480mm)
Gross Weight: 633lb (287kg)

Characteristic:
1: Flexible to notch any letter height and any design on a standard. DXF file;
2: Auto notch in two different degrees;
3: Cut the letter to the size of your break automatically leaving no waste;
4: Stipple the location and direction of bend;
5: Can identify inside and outside of the figure;
6: Total job length, or single letter length can be calculated for a job estimating.
7: Can enter multiple break-points at your convenience for large letters;
8: Can change the position and direction of the fibulae at your convenience;
9: Whole job can be processed at one time, or one letter processed multiple time.
