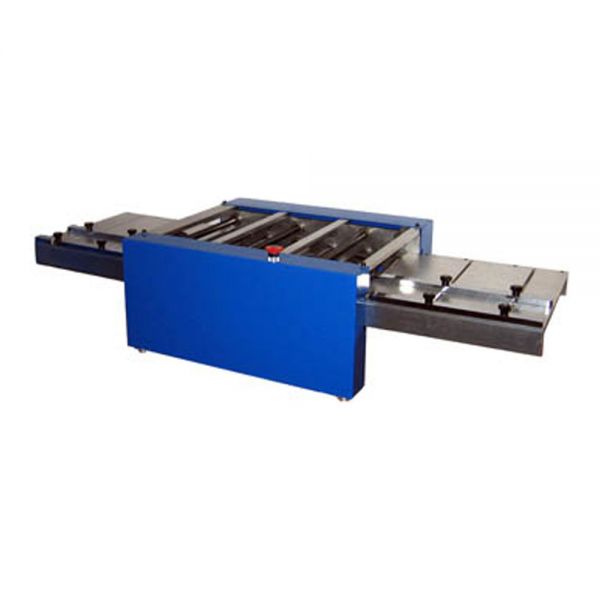

Ving Automatic Flanging Machine Flanger for Metal Channel Letter Making (Flang Right Angle)

Original price $2,799.00 - Original price $2,799.00
Original price
$2,799.00
$2,799.00 - $2,799.00
Current price $2,799.00

Features:
Easier set up; Easy use;
Smaller Footprint conserves space;
Used on a bench top or with stand;
No special power requirements. Uses standard household power.

Specifications:
Material width: 60-180mm (2.36-7.09in)
Aluminum Coil Thickness: 0.4mm~1.2mm(0.016-0.047in)
The regulation for the Flanger Esp: >10mm(0.39in)
Voltage: AC110V/220V
Frequency: 50/60HZ
Air pressure: 0.8Mpa
Air flux: 0.1 m3/min
Physical layout: 47.2*17.3*12.2in(1200*440*310mm)
Weight: 114.6lbs(52kg)
Packing Size: 52.7*22.8*18.5in(1340*580*470mm)
Gross Weight: 209lbs(95kg)

* Material can be processed width: 60mm~180mm, Aluminum Coil Thickness: 0.4mm~1.2mm
