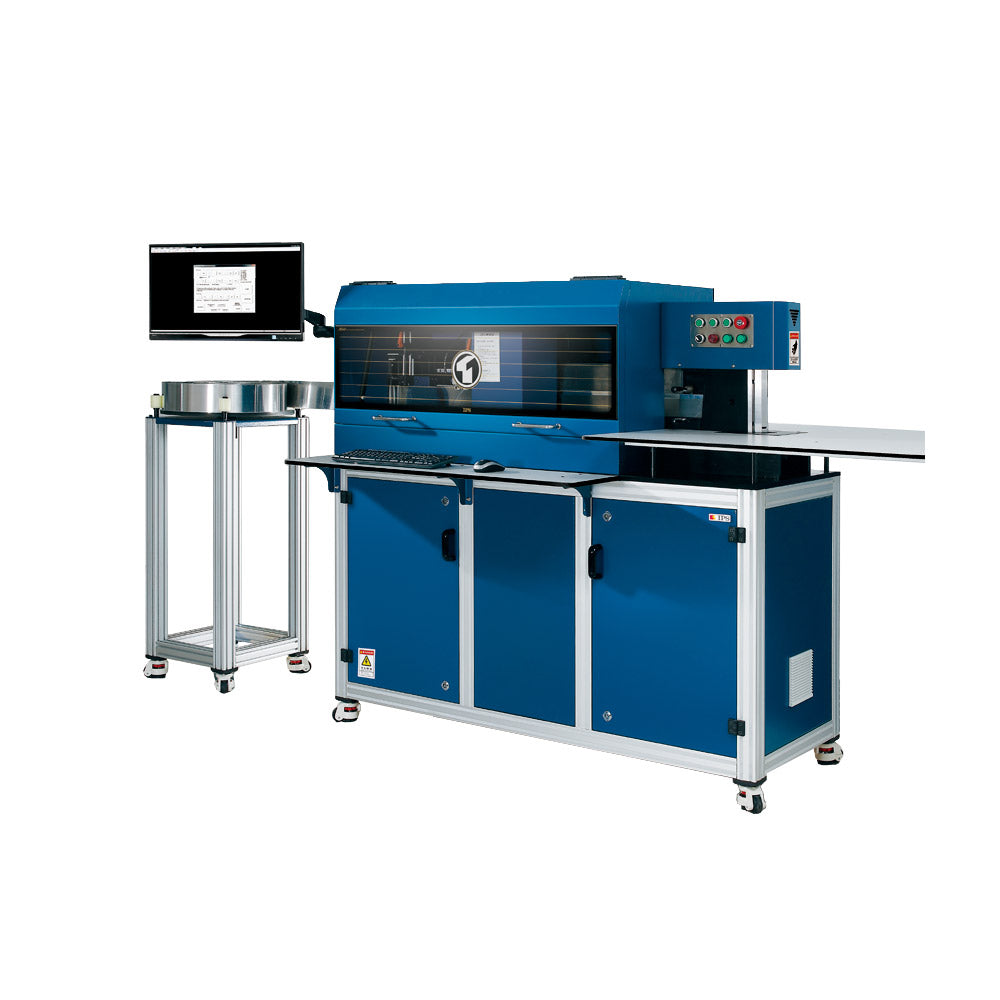

Ving Automatic Channel Letter Bending Machine with Slotting, Notching and Flanging Functions

$45,977.00
$45,977.00
Shipping calculated at checkout.
    Ving Automatic Channel Letter Bending Machine with Slotting, Notching and Flanging Functions

    Tech Specs

    Specification
    Power Supply AC200V
    Power 4.0KW
    Compressed air 0.4—0.6MPa
    Axis Quantities 5pcs
    Min. Curving radius R7mm
    Min. Distance between interal and external angles 4.5mm
    Start to Bend Distance 3mm
    Applied Materials Stainless steel,Galvanized sheet,Aluminum Coil（Flanging and notching function only for aluminum）
    Material Thickness 0.6-1.0mm
    Processing Height Stainless steel（20-175mm）Aluminum Coil（50-175mm）
    Material Feeding Method Alternating doubel screw rails feeding
    Notching Method C controlled by servo motor
    Notching Angle  30°/120°
    Flanging Method Pneumatic flanging for right angle
    Flanging edge width 14mm
    Servo Motor Quantities 4PCs
    Step Motor Quantities 1PC
    N.W./G.W. 800Kgs/900kgs
    Dimension（L W H） 2290×860×1560mm
