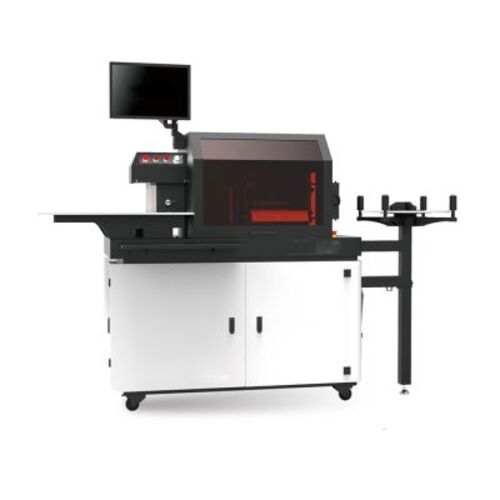

Ving Automatic Channel Letter Bending Machine Plate Full Function Bending Machine

Ving Automatic Channel Letter Bending Machine Plate Full Function Bending Machine

by Wide Image Solutions
$7,240.00 - $7,240.00
$7,240.00
$7,240.00 - $7,240.00
$7,240.00

Specifications

Item  MBM-JY-A130
 Feeding system  Circulation-typed clamp feeding system
 Slotting system  Plane cutter slotting system
 Bending system  Double blade alternating bendingsystem
 Material Apecification  Stainless steel, Galvanized board, Aluminum ≤1.2mm
 Material Height  25-130mm (0.98-5.12in)
 Accuracy  ±0.1mm
 Input File format  *.dxf
 Power supply  AC220V/50HZ/3.5KW
 Air supply  0.6m³/min
 Dimensions  L1426*W698*H435mm
 Machine weight  480kg
