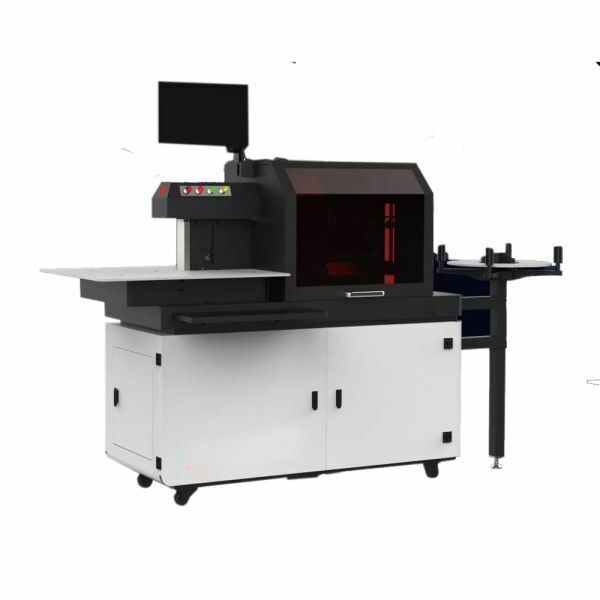

Ving Automatic Channel Letter Bending Machine High Edge Full Function Bending Machine

Original price $12,068.00 - Original price $12,068.00
Original price
$12,068.00 - $12,068.00
Current price $12,068.00


1. Bending system
Double knife alternating bending, specially designed cutlasses and edge structure, compatible with plate and profile processing. More suitable for small Angle small radian bending.

2. Slotting system
Double tool slotting, stainless steel galvanized board selection of planer slotting, aluminum profile and aluminum plate switch to large Angle alloy knife slotting.

3. Feeding system
The design of circulating clamping feeding, manipulator circulating clamping feeding, the configuration of servo drive + high quality ball screw and linear guide rail makes the feeding smooth and smooth without causing deformation to the material, and the closed-loop control composed of length encoder and system makes the finished products perfectly match with the source files.


1. 18cm processing range, equipped with fixed cutlery with a small Angle of 44°. In the higher processing range, to achieve high speed, stable bending
2. Part of the structure adopts precision casting, making the bending machine precise and efficient (casting includes: fixed scimitar, fixed scimitar safety, encoder, manipulator, feeding bracket, feeding bracket presser, etc.)
3. Plate, profile processing in one, can produce stainless steel, galvanized board, aluminum plate, aluminum profile and other materials


 Item  MBM-JY-A200S
 Feeding system  Circulation-typed clamp feeding system
 Slotting system  Plane&milling cutter slotting system
 Bending system  Double blade alternating bendingsystem
 Material Apecification  Stainless steel, Galvanized board≤1.2mm ;Aluminum≤1.5mm;Aluminum profiles ≤1mm
 Material Height  20-200mm
 Accuracy  ±0.1mm
 Input File format  *.dxf
 Power supply  AC220V/50HZ/3.5KW
 Air supply  0.6m³/min
 Dimensions  L1577*W703*H1543mm
 Machine weight  510kg
