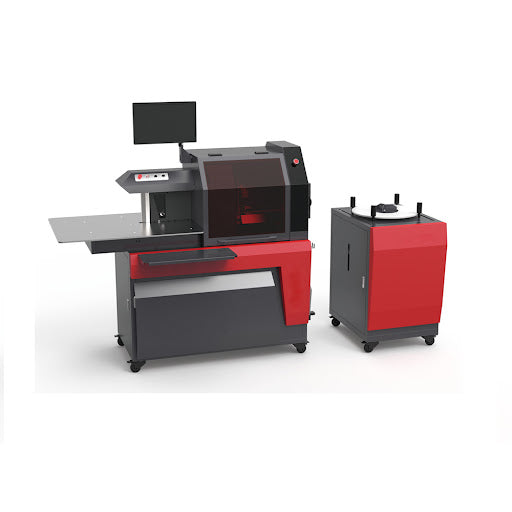

Ving Automatic Channel Letter Bending Machine Advanced High Edge Full Function Bending Machine

Ving Automatic Channel Letter Bending Machine Advanced High Edge Full Function Bending Machine

by Wide Image Solutions
$16,666.00 - $16,666.00
$16,666.00
$16,666.00 - $16,666.00
$16,666.00

Specifications

 Item  MBM-JY-AT3
 Feeding system  Circulation-typed clamp feeding system
 Slotting system  Plane&milling cutter slotting system
 Bending system  Double-blade alternating bending system
 Material Apecification  Stainless steel, Galvanized board≤1.2mm ；Aluminum≤1.5mm；Aluminum profiles ≤1mm
 Material Height  25-200mm
 Accuracy  ±0.1mm
 Input File format  *.dxf
 Power supply  AC220V/50HZ/3.5KW
 Air supply  0.6m³/min
 Dimensions  L1325*W903*H1583mm
 Machine weight  510kg
