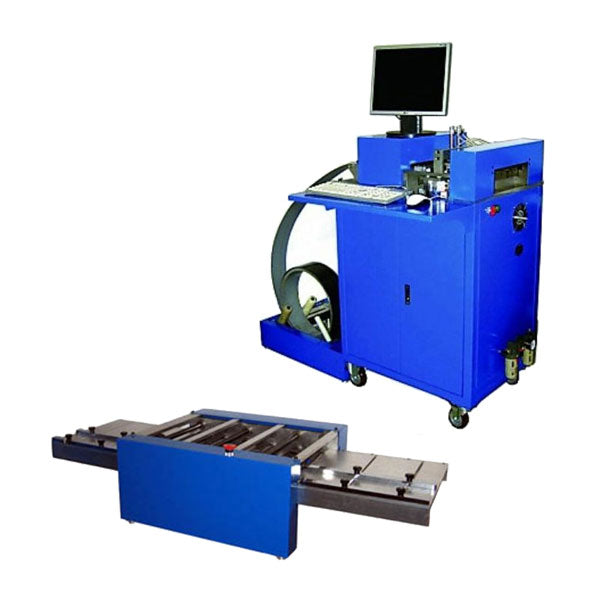

US Stock, Ving Metal Channel Letter Making Solution Starter Sets (1 Notcher, 1 Flanger)

$12,062.00
$12,062.00
Shipping calculated at checkout.
    US Stock, Ving Metal Channel Letter Making Solution Starter Sets (1 Notcher, 1 Flanger)

    Tech Specs

    Package includes:
    1 x CNC Notching Notcher Machine for Metal Channel Letter, Single Side Notch
    1 x Automatic Flanging Machine Flanger for Metal Channel Letter Making
    1 x Steel and Stainless Steel Coil Strip Rounded Corner Bending Tools

    Remark:
    The computer is not included, please prepare it by yourself.
    The windows system should be win XP or win7-32bit and have PCI solt.

    Here is a list of items included in this package:

    CNC Notching Notcher Machine for Metal Channel Letter, Single Side Notch
    1.This Metal Channel Letter Making CNC Notcher is Single Side Notch, its' Notch angle: 30° and 105°, Notch depth: 4mm-16mm.
    2.This CNC Notcher is especially used for channel letter notching. Input the design or letter in DXF into the machine, CNC Notcher will fully automate notching accurately.
    Material handling capabilities:
    Width: 60mm~180mm
    Aluminum Coil Thickness: 0.4mm~1.2mm

    Specification:
    Notch angle: 30°and 105°
    Notch depth: 4mm-16mm
    Notch sides: One side
    Voltage: AC110V/220V
    Frequency: 50/60HZ
    Air pressure: 0.8Mpa
    Air flux: 0.1 m3/min
    Physical layout: 2200(L)x1600(W)x800(H)mm
    Net Weight: 200kg
    Packing Size: 1030mm x 830mm x 1480mm
    Gross Weight: 287kg

    Automatic Flanging Machine Flanger for Metal Channel Letter Making
    This cnc automatic flanger eliminates any restriction on channel letter return lengths imposed by brake size. Returns can be flanged as a continuous part of your channel letter production, minimizing labor and manufacturing costs.
    Features:
    Easier set up; Easy use;
    Smaller Footprint conserves space;
    Used on a bench top or with stand;
    No special power requirements. Uses standard household power.

    Specifications:
    Material width: 60mm~180mm
    Aluminum Coil Thickness: 0.4mm~1.2mm
    Voltage: AC110V/220V
    Frequency: 50/60HZ
    Air pressure: 0.8Mpa
    Air flux: 0.1 m3/min
    Physical layout: 1200(L) x 440(W) x 310(H) mm
    Weight: 52kg
    Packing Size: 1340mm x 580mm x 470mm
    Gross Weight: 95kg

    Description:
    This metal coil strip round corner bending tool can bend iron 1.0 mm, aluminum: 1.2 mm, stainless steel: 0.8mm, effective flanging height is 150mm.
    Max Height: 150mm
    Three rolls with different diameters
    The rolls with low friction material, easier to use
    Can be surface or flush mounting with the bottom
    Packing Size: 9.0" x 5.2" x 6.5"(230 x 132 x 165mm)
    Gross Weight: 3200g/set
