Experts on Printing Quality

test image

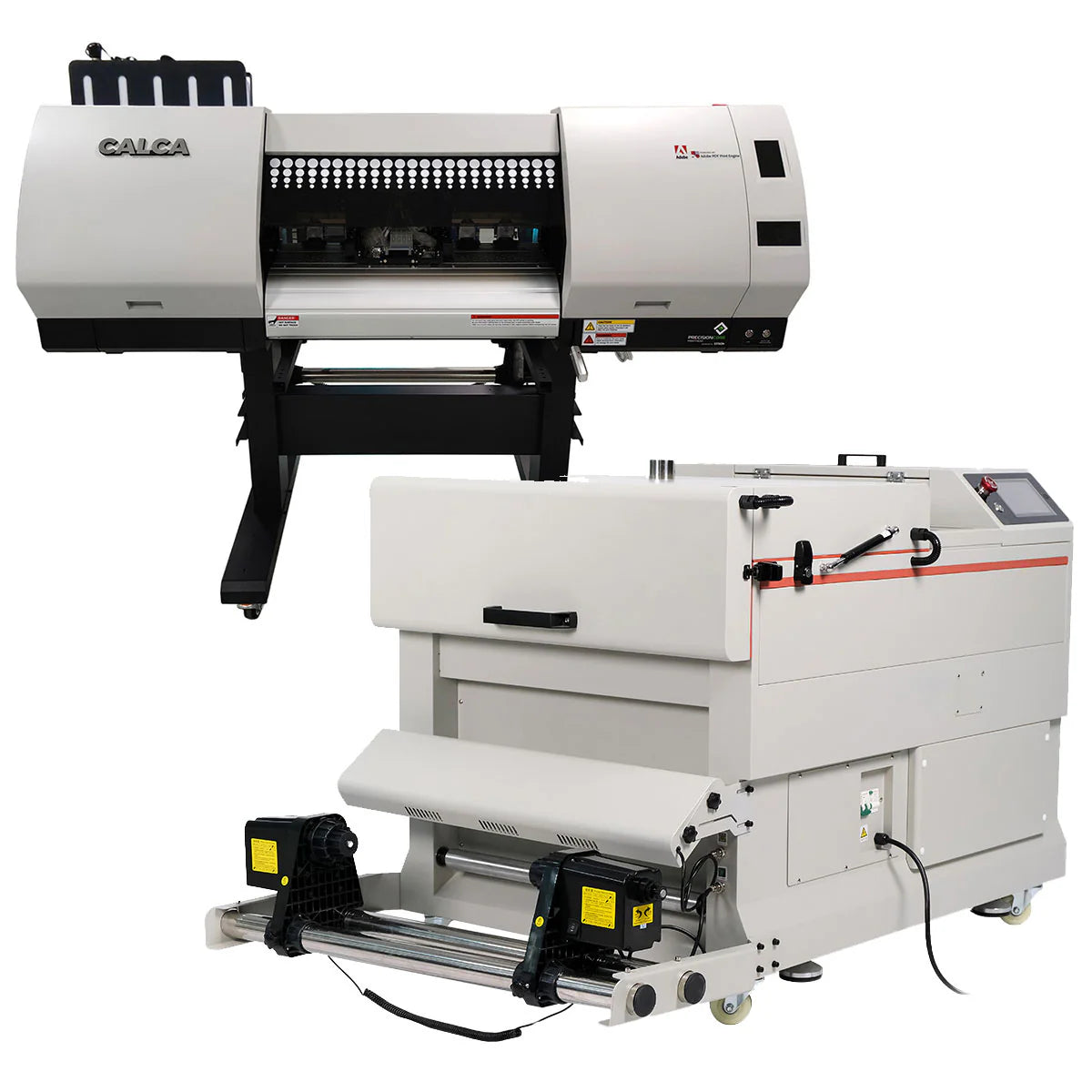

CALCA PRO 24inch (600mm) DTF Printing System (Dual Epson I3200-A1 Heads, Automatic Recyling Powder Shaker and Dryer)

Original price $18,899.00 - Original price $18,899.00
Original price
$18,899.00 - $18,899.00
Current price $18,899.00

CALCA Ultra II 24inch (600mm) DTF Printer (Direct to Film Printer) with Dual Epson I3200-A1 Printheads

Technical Specs:
24in (620mm) maximum print width
Dual Epson I3200-A1 Printheads (CMYK - WWWW)
Ink Sort: Textile Pigment Ink
1.8 Liter per color ink bottle capacity
Media: PET Film
Thickness: 0.06in to 0.24in (1.5mm to 6mm) Adjustable
Maximum Roll Weight: 396lbs (20kg)
Media Heater: Pre / Rear Heater (Can be controlled separately)
4 Pass 6 Pass and 8 Pass Print Resolution
Printing Speed: 4 pass: 12m²/ h; 6 pass: 8m²/ h; 8 pass: 6m²/ h
Printing Resolution: 720 x 1200dpi; 720 x 1800dpi; 720 x 2400dpi (4Pass, 6Pass, 8Pass)
Interface: USB Port
Printing Software: Flexi PhotoPrint RIP

Print Head Cleaning: Automatic
Rewinding Function: Automatic
Printer Size: 70.3in x 31.1in x 63.5in (1785mm x 790mm x 1613mm)
Printer Weight: 396lbs (180kg)
Height of Working Platform: 41.8in (1062mm)
Packing Size: 74in x 38.2in x 29.1in (1880mm x 970mm x 740mm)
Gross Weight: 440.9lbs (200kg)

• Working Power Supply: AC110V, 50HZ / 60HZ, 1 phase.
• Current: 11A, 1200W
• Operating System: XP / Win7 / Win10
• Temperature control set to 20-35°C (68°F-95°F) and 45% - 65% humidity

CALCA Brand: USA registered
Maximum Shake Powder Width: 600mm (23.6inches)
Functions: Shake powder control, dusting control, PID setting of curing temperature
Heating Element: Quartz infrared heat drying tube
Rewinding Function: Automatic induction rewinding
Heating and Drying Mode: Front guide plate heating, upper drying curing
Cooling Mode: 4 fan air cooling (single row)
Machine Size: 63.8in x 35.9in x 39.1in (1620mm x 912mm x 992mm)
Powder Shaker and Dryer Weight: 419lbs (190kg)
Packaging Size: 55.9in x 44.1in x 43.8in (1420mm x 1120mm x 1113mm)
Gross Weight: 529lbs (240kg)
Automatic powder recycle gear: There are 1-5 gears to choose from, and the 3rd gear is used by default, which can meet most printing speeds.
Powder box cleaning function: Press and hold for 5 seconds to start the cleaning function.
Compatible with media within a width of 23.6inches: Meet the printing speed of 6-20 square meters per hour.
Powder spreading structure: The motor drives the brush to rotate to brush the hot melt powder out of the powder box.
Powder shaking device: the motor drives the powder shaking lever to beat the film to clean up excess hot melt powder.

Working Power Supply: AC220V, 50hz / 60hz, 1 phase.
Current: 24A, 5200W
With CALCA DTF film, powder and inks, you can easily and quickly create custom t-shirts and apparel.


√ New automatic powder recycle function, more convenient and labor saving.
√ Longer folding dryer, more energy efficient.
√ Compact size / small footprint.
√ Touch screen control panel makes everything easier.
√ Infrared drying and heating improves and protects color reproduction.
√ Absorption conveying platform secures the printing material to avoid bulging, run-offs, adhesion and media waste.
√ Manual/automatic dusting switchable, new function of the powder box cleaning, one-click automatic cleaning of the powder box.
With the advancement in DTF technology, there is no denying that DTF is taking the printing industry by storm. It is quickly becoming one of the most popular technologies for textile printing compared to traditional printing methods.
