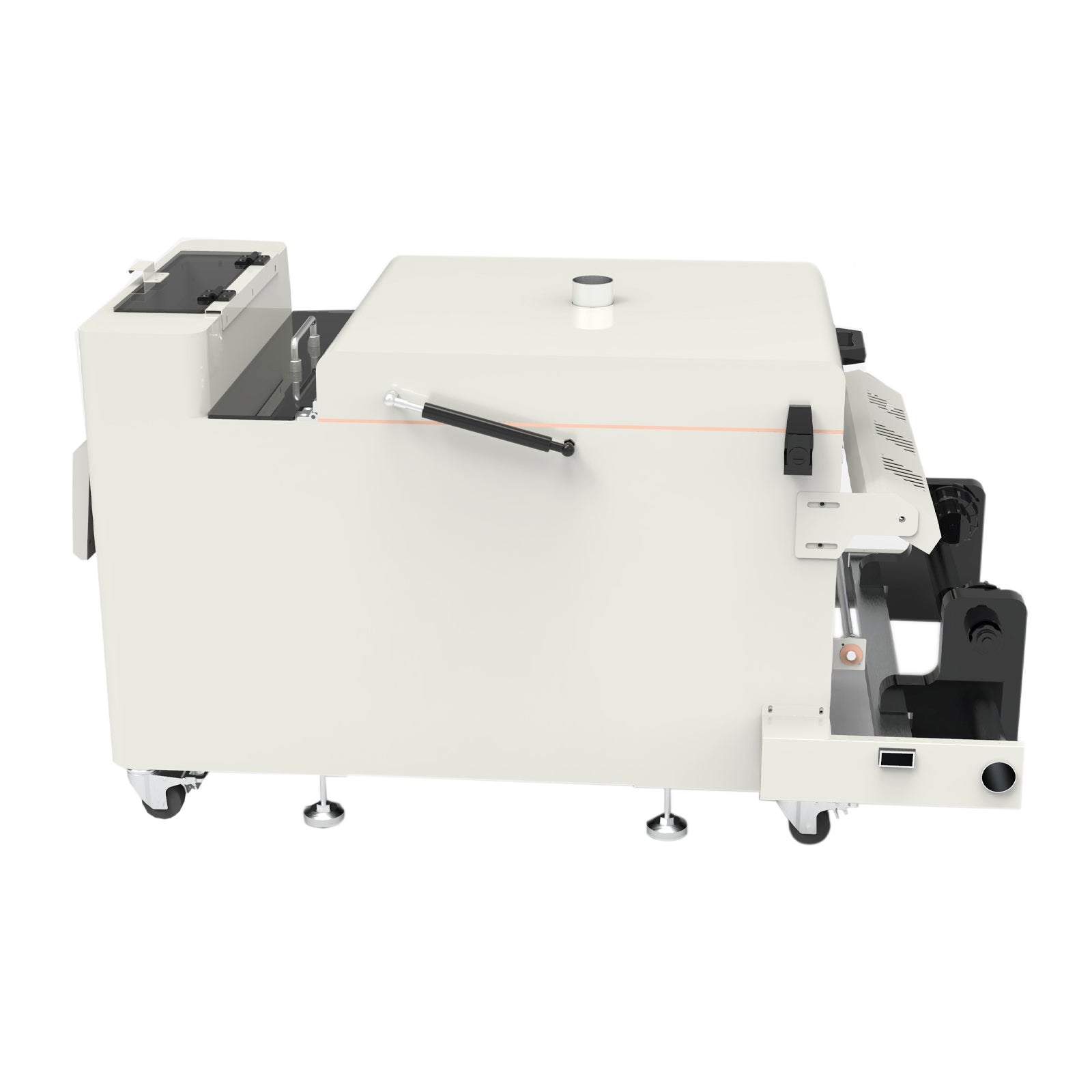

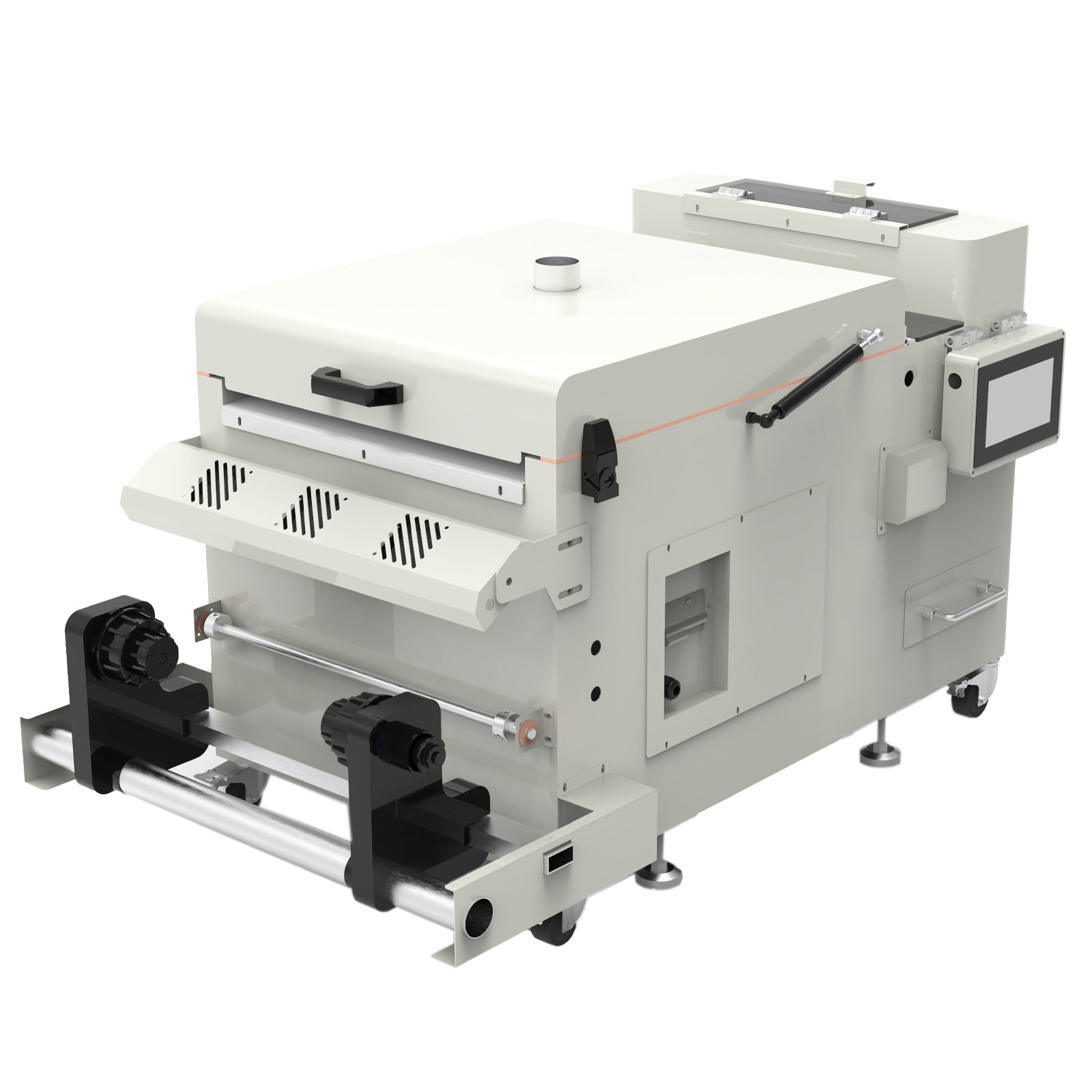

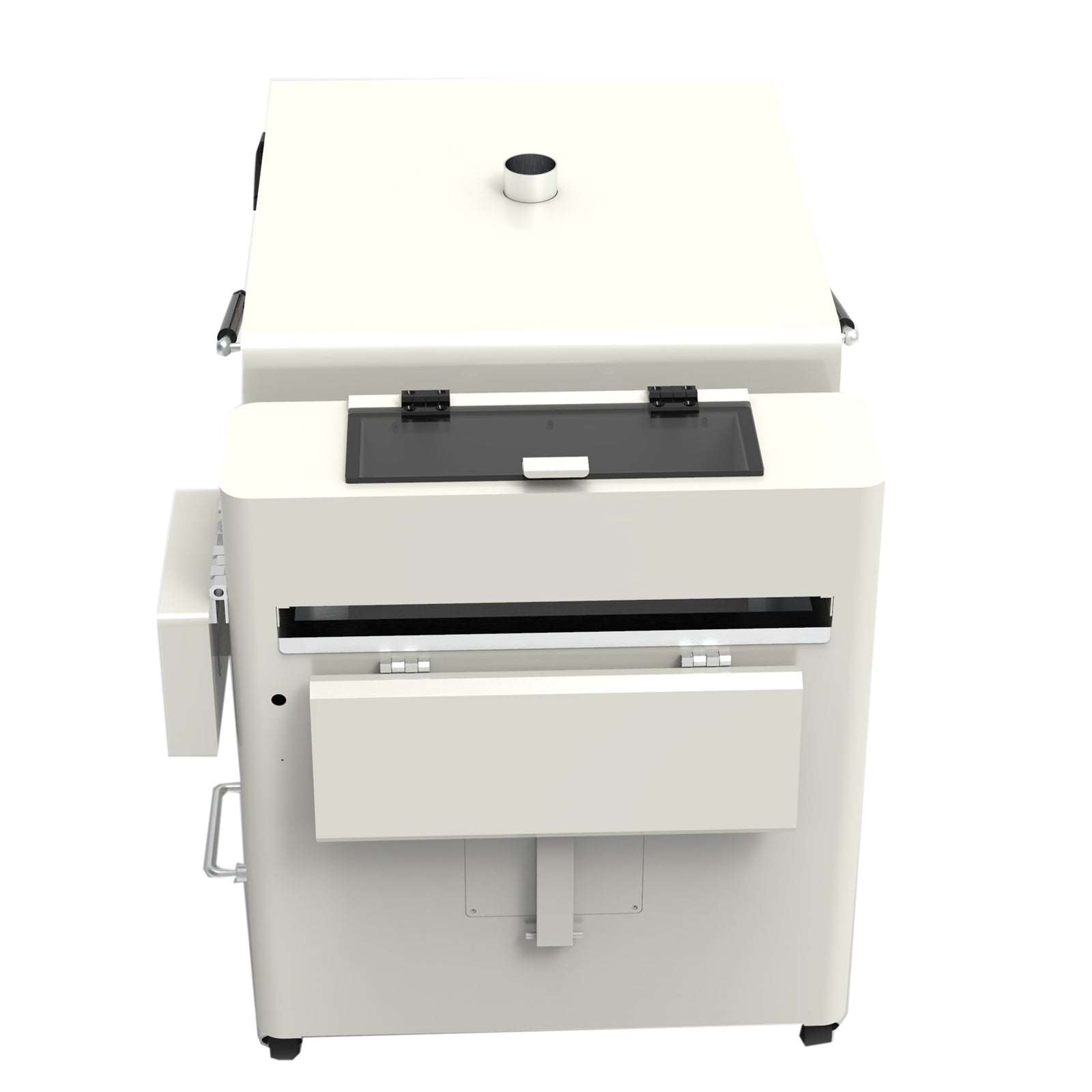

CALCA 15in (380mm) Deluxe Automatic TPU Adhesive Powder Shaker and Dryer Machine with Touch Screen

Description

CALCA DTF powder shaker and dryer unit can handle up to 15in wide DTF film.
DTF opens the door to a wide range of choices and is capable of printing onto non-treated cotton, silk, polyester, denim, nylon, leather, 50/50 blends, and more. It works equally well on white and dark textiles.
This all in one dtf powder shaker unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.

Applicable Medium: Nylon, Chemical Fiber, Cotton, Leather, Swimsuit, Diving Suit, PVC, EVA, etc.

Powder spreading structure: The motor drives the brush to rotate to brush the hot melt powder out of the powder box.

Powder shaking device: the motor drives the powder shaking lever to beat the film to clean up excess hot melt powder.

Specifications:

CALCA Brand: USA registered
Maximum Shake Powder Width: 380mm (15inches)
Functions: Shake powder control, dusting control, PID setting of curing temperature
Heating and Drying Function: 6pcs Quartz infrared heat drying tube
Rewinding Function: Automatic induction rewinding
Heating Mode: Upper drying heating
Cooling Mode: 3 fan air cooling (Single row)
Machine Size: 46.7in x 26in x 25.2in (1185mm x 660mm x 641mm)
Powder Shaker and Dryer Weight: 110.2lbs (50kg)
Packaging Size: 45.3in x 27.6in x 27.6in (1150mm x 700mm x 700mm)
Gross Weight: 180.8lbs (82kg)

Requirements:
Working Power Supply: AC110V / 220V, 50hz / 60hz, 1 phase.
Current: 20A / 10A, 2200W

Features:

• With a heat-insulating mesh belt, which effectively reduces the powder entering the platform and sticks the film to the platform after high-temperature baking.
•Suitable for Epson I1600-A1 Print Head, meeting the printing speed of 3-5㎡/h.
• The longer drying stroke of 600mm can make the material more fully heated and make the pattern more perfect.
• This all-in-one unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
• Infrared drying and heating improves and protects color reproduction.
• Shake powder control, dusting control, PID setting of curing temperature.
