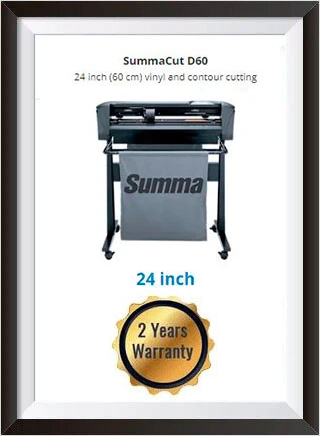

SummaCut D60 24 inch (60 cm) vinyl and contour cutting - New + 2 YEARS WARRANTY

Save $450.00 Save $450.00
Original price $3,995.99
Original price $3,995.99 - Original price $3,995.99
Original price $3,995.99
Current price $3,545.99
$3,545.99 - $3,545.99
Current price $3,545.99



MODELS

D60

D75

D120

D140

D160

CUTTING TYPE Drag knife with TurboCut and Tangential Emulation Modes
TOOL COMPATIBILITY Blade, Pen, Pounce Tool
CUTTING WIDTH 23 inch (60 cm) 29 inch (74 cm) 47 inch (120 cm) 53 inch (135 cm) 62 inch (158 cm)
CUTTING SPEED All SummaCut models cut at speeds up to 44 inches per second (113 cps) diagonal
AXIAL SPEED Up to 2 G
ALIGNMENT TYPE
  • OPOS X
  • Barcode job recognition
  • Up to 2 x 64 marks on the X-line
  • Y-Line compensation
MAXIMUM ACCELERATION Up to 3 G diagonal
TRACKING PERFORMANCE Within ± 0.004 in. (± 0.1 mm) on plots up to 26 ft. long (8 m) on rolls up to 760 mm wide
Within ± 0.004 in. (± 0.1mm) on plots up to 13 ft. (4 m) long on rolls over 760 mm wide
CUTTING FORCE 0-400 grams of down-force, in 5 gram increments
REPLOT MEMORY 4 MB (buffer size: 16 MB)
DISPLAY LANGUAGES English; French; German; Dutch; Italian; Spanish; Polish; Lithuanian
CONNECTIVITY USB, Serial RS232, Ethernet (only on SummaCut D120, D140 - not FX - & D160)
POWER REQUIREMENTS 100-120 / 220-240 VAC, 50/60 Hz, 85 VA maximum
DIMENSIONS 39 (W) x 13.8 (D) x 11 (H) in. (100 (W) x 35 (D) x 30 (H) cm) 45 (W) x 13 (D) x 11 (H) in. (115 (W) x 35 (D) x 30 (H) cm) 63 (W) x 26.8 (D) x 45 (H) in. (160 (W) x 68 (D) x 114.5 (H) cm) 68 (W) x 26 (D) x 45 (H) in. (175 (W) x 68 (D) x 114.5 (H) cm) 77 (W) x 26 (D) x 45 (H) in. (198 (W) x 68 (D) x 114.5 (H) cm)
WEIGHT 33 lbs (15 kg) 37 lbs (17 kg) 92 lbs (42 kg) 106 lbs (48 kg) 119 lbs (54 kg)
OPERATING TEMPERATURE 59˚ to 95˚F (15˚ to 35˚C)
STANDARD ACCESSORIES WinPlot or MacSign Cut Software, CutterControl Parameter Software, CD w/ Manuals and Drivers, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), 1 Spare Fuse, Standard 36˚ Blade Holder, 2 Standard 36˚ Blades, Cut-off Knife (Manual Slitter), 2 Cut-off Razor Blades.
OPTIONAL ACCESSORIES Stand or Basket for SummaCut D60 / SummaCut D75
