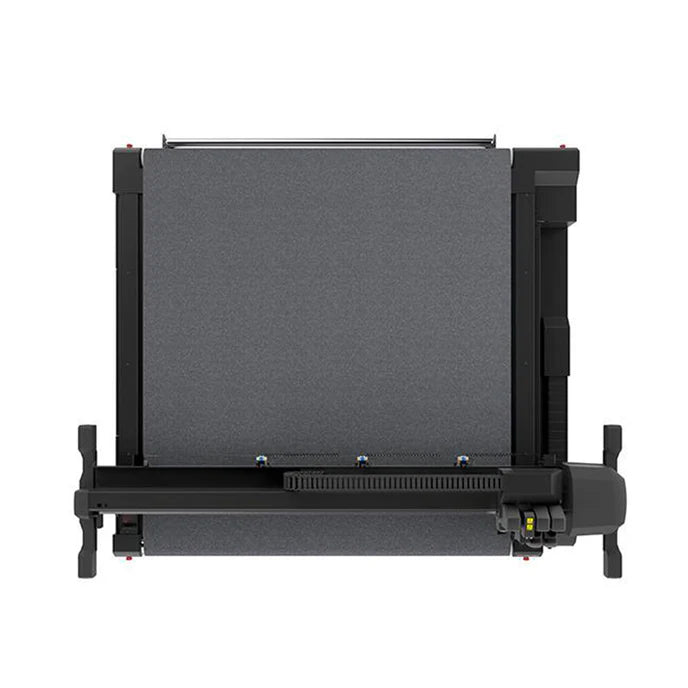

Summa F1612 Professional Flatbed Finishing System (Working Area 63" x 47")

Description

The F1612 is Summa’s smallest F Series flatbed cutter, fitting effortlessly into many production area’s. It represents the ideal cutting solution for sign makers who want to automate their cutting workflow or extend their cutting applications.

Key Benefits

• Small footprint
• Straightforward installation
• Media handling options
• Modular tooling system
• Integrated Safety System
• Future-proof

Ideal to cut:

• Cardboard material
• Roll stock
• (Technical) textile
• Synthetic material
• Foamboard
• Wood

Modules & Tools

All F Series models can be equipped and retrofitted with various modules and tools. This makes the F Series ideal to grow with your business and open up new markets at any given time.

• High-Frequency Router
• High Torque Rotary module
• Tangential module
• V-Cut tools, Creasing tools, Heavy-Duty Cutout tool, etc.

Media Handling & Workflows

The flatbed cutter is standard equipped with a range of convenient media handling features. For the F 1612 model special media handling options are available to further enhance the use of this compact flatbed.
Enjoy an automated workflow and ease-of-use:

• Twin Workflow
• Operator Zone
• Poster Trim
• Barcode Workflow

Media Handling Add-Ons

• Conveyor extension
• Roll-up system
• Extension tables
• Basket

Technical Specifications

• Model: F1612
• Dimensions: 97 x 86 x 43 in.
• Media Width: Up to 65 in.
• Working Area: 63 x 47 in.
• Vacuum: 1.3 kW (50Hz) / 1.75 kW (60Hz)
• Vacuum Zones: Variable over width of machine

Requirements:

• Standard: 3 x 400V + N, 50Hz, max 20A
• Or: 3 x 208V + N, 60Hz, max 30A
• Or: 3 x 230V, 50Hz, max 20A

Standard Solution includes:

• F Series Flatbed System
• Conveyor System with Pneumatic Media Clamps and Roll Support
• Safety Pack
• Camera System
• Axis Control Software
• Drag Module
• ADC Left & Right
• GoProduce software
• Speed: up to 1000 mm/sec
• Acceleration: Up to 1G
