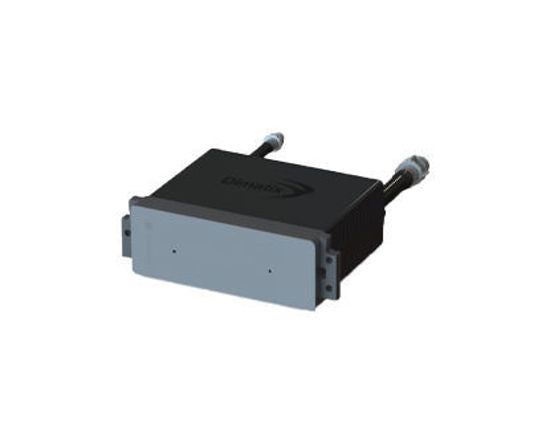

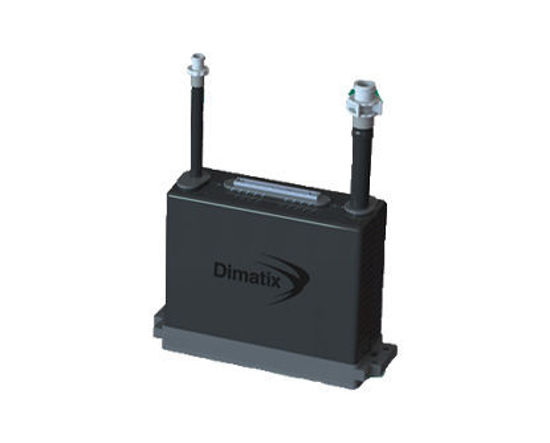

StarFire™ SG1024/HFL Printhead

The StarFire™ SG1024/HFLis a compact, self-contained unit compatible with oil & solvent based ceramic ink formulations.

The SG1024/HFL is also known as SF1024/LCHF. We recommend to change the head cables when installing a new printhead.

Features

• Number of addressable Jets per module: 1024
• Print width: 64.96mm (2.55 in)
• Native resolution: 400 dpi
• Firing Frequency (kHz): 20/8
• Versadrop Max Productivity (ng-kHz): 1500
• Native Drop Size / Largest Drop Size (pL): 80/200
• Nozzle Plate Technology: Metal
• Compatible Fluids: Oil & solvent based ceramic inks
• Viscosity Range (cP): 8-20 (10-14 for highest productivity)
• Temperature control: yes
• Inkjet Operating Temperature Range (C/F): Up to 50°C / 122°F
• Integrated Temperature Sensor: Included
• OEM Accessible Non-volatile Memory : 64-byte rewritable
