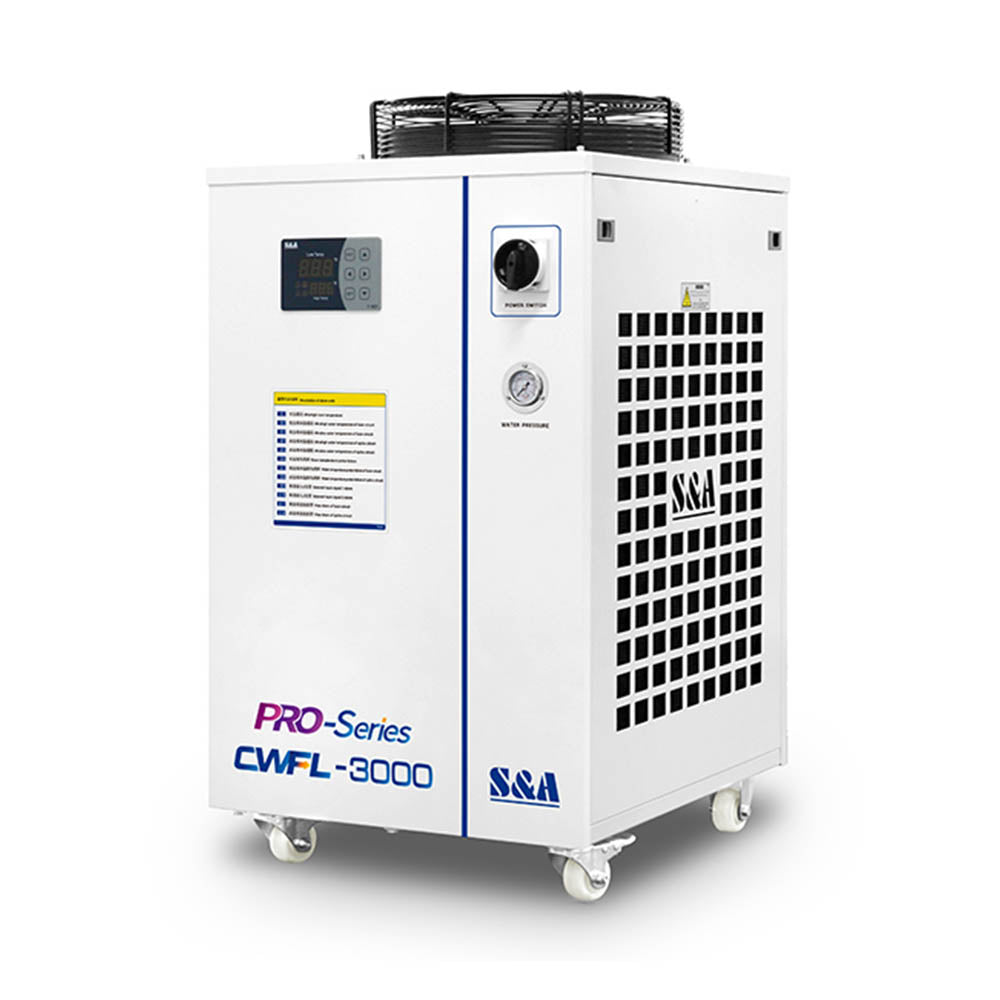

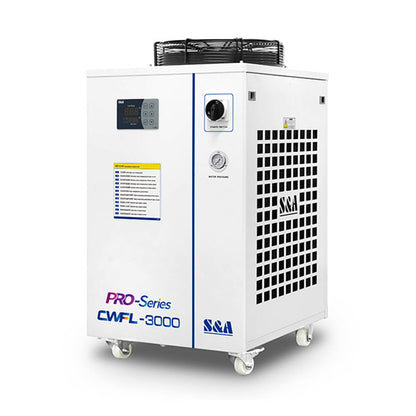

S&A CWFL-3000BN Industrial Water Chiller for 3000W Fiber Laser AC 1P 220V, 60Hz

$2,999.00
$2,999.00
Shipping calculated at checkout.
    S&A CWFL-3000BN Industrial Water Chiller for 3000W Fiber Laser AC 1P 220V, 60Hz
    S&A CWFL-3000BN Industrial Water Chiller for 3000W Fiber Laser AC 1P 220V, 60Hz

    Tech Specs

    Description:

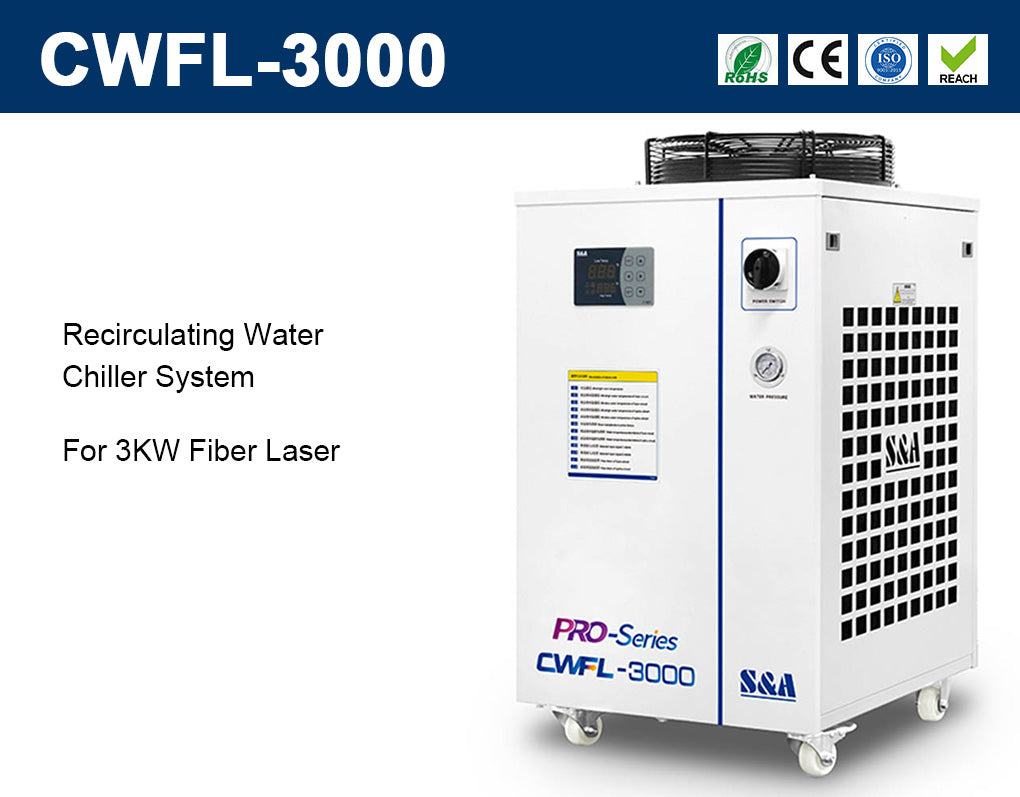

    CWFL-3000 water chiller developed by S&A is made especially for fiber laser applications up to 3KW. It highlights a dual circuit configuration. Two temperatures can be supplied from one single chiller unit for the fiber laser and the laser head, indicating up to 50% space saving comparing with the two-chiller solution.
    With temperature stability of ±0.5℃, this industrial water chiller is efficient in mitigating the heat that is generated during the fiber laser operation. Reducing the operating temperature can help reduce maintenance and extend the lifespan of the fiber laser system. Being Modbus-485 capable, CWFL-3000 high power water chiller can communicate with the fiber laser very easily.

    Features:
    1. Dual channel design for cooling fiber laser and the laser head, no need of a two-chiller solution;
    2. ±0.5℃ precise temperature control;
    3. Temperature control range: 5-35 ℃;
    4. Modbus-485 capable, easy communication with the fiber laser system;
    5. Constant temperature and intelligent temperature control modes;
    6. Built-in alarm functions to avoid water flow problem or temperature problem;
    7. CE, RoHS, ISO and REACH compliant;
    8. User-friendly temperature controller for easy operation;
    9. Optional heater and water filter.

    Specifications

    Model CW-FL-3000BNPTY
    Voltage AC 1P 220~240V 60Hz
    Current 3.6~30.9A
    Power consumption 6.05KW
    Heater power 600W+1400W
    Precision ±0.5℃
    Reducer Capillary
    Pump Power 1.0KW
    Tank Capacity 22L
    Inlet and Outlet Rp1/2"+Rp1"
    Max. Pump pressure 5.9bar
    Refrigerant R-410a
    Rated flow 2L/min+>20L/min
    Net Weight 87Kg (191.8lb)
    Gross Weight 103Kg (227.1lb)
    Dimension 30" x 21.7" x 40.6" (77 x 55 x 103cm)
    Package Dimension 31" x 25.6" x 46" (78 x 65 x 117cm)

     Note:
    1. The working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product;
    2. Clean, pure, impurity free water should be used. The ideal one could be purified water, clean distilled water, deionised water, etc.;
    3. Change out the water periodically (every 3 months is suggested or depending on the actual working environment);
    4. Location of the chiller should be well ventilated environment. There must be at least 50cm from the obstacles to the air outlet which is on the top of the chiller and should leave at least 30cm between obstacles and the air inlets which are on the side casing of the chiller.
