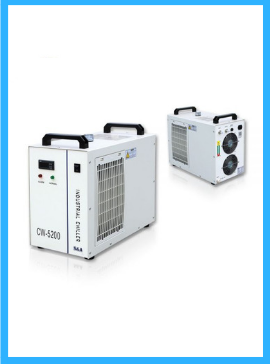

S&A CW-5200BH Industrial Water Chiller for One 8KW Spindle / Welding Machine / One 130-150W CO2 Glass Laser Tube Cooling, 0.68HP, AC 1P 220V, 60Hz
CW-5200BH industrial water chillers have been popular for over 16 years with the annual output of 30,000 units.It is designed for cooling the one CO2 glass laser tube under 150W of the laser engraving and cutting machine. (Its emitting rate is higher than 60%.)
Cooling capacity is 1400W.
Have design patent Certificate, CE and RoHS Certificate.
This has been sold largely to Europe, South America, Asia and other markets.
Economic cooling equipment, easy to install and operate, compact and easily movable.
- It is suitable for cooling the laser tube under 150W, and the temperature can be adjusted precisely.
- You can choose different models according to local voltage and frequency.
- It can extend the using life of laser tube and ensure the engraving effect better.
- With completed water flow and over high temperature alarm functions
- It can control the water temperature, precision is ±0.3℃, which provide stable working conditions for laser devices.
- Multiple alarm function: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
- This series of water chillers adopt intelligent controller, which need not adjust the control parameters under normal
- circumstances, it will automatically adjust control parameters according to room temperature changes, to meet the cooling requirement.
- CW-5200 water chiller has unique low flow alarm protection function, which ensures the cooling water cycle working safely.
- Specific disconnection alarm securing protection.
- Enclosed water tanks, water used for a long time.
- Equipped with alarm output port, can quickly protect sensitive components.
- High cost performance, low failure rate.
- Multiple power specifications; CE approval; REACH approval; RoHS approval.
|Voltage||AC 1P 220V|
|Nominal cooling capacity|
|Refrigerant||R-22 / R-134a / R-410a|
|Protection||Overcurrent protection for compressor, flow alarm, over temperature alarm|
|Tank capacity||6 L|
|Inlet and outlet||External Ø10mm brass connector|
|Dimension||58X29X47 cm (L X W X H)|
|Package dimension||70X43X58 cm (L X W X H)|
