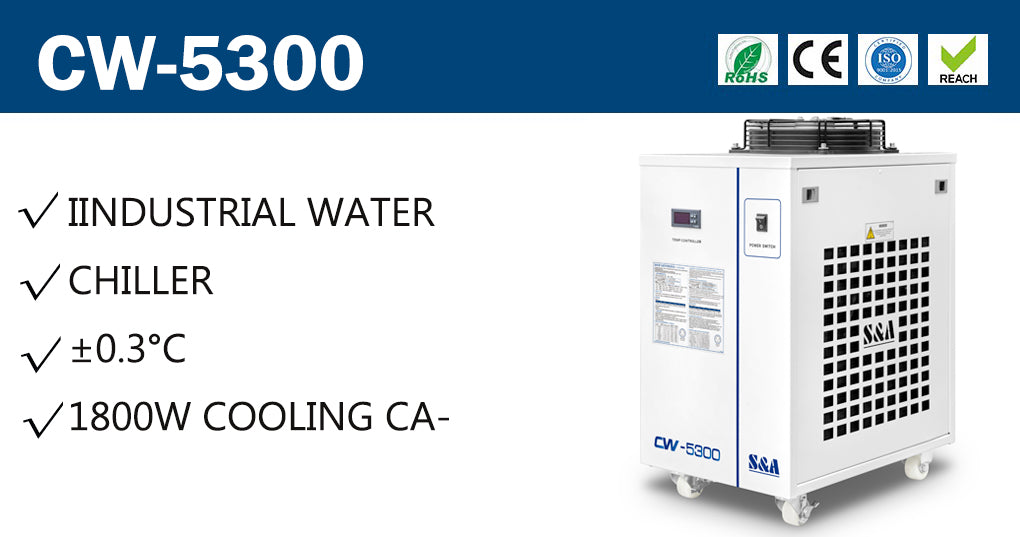

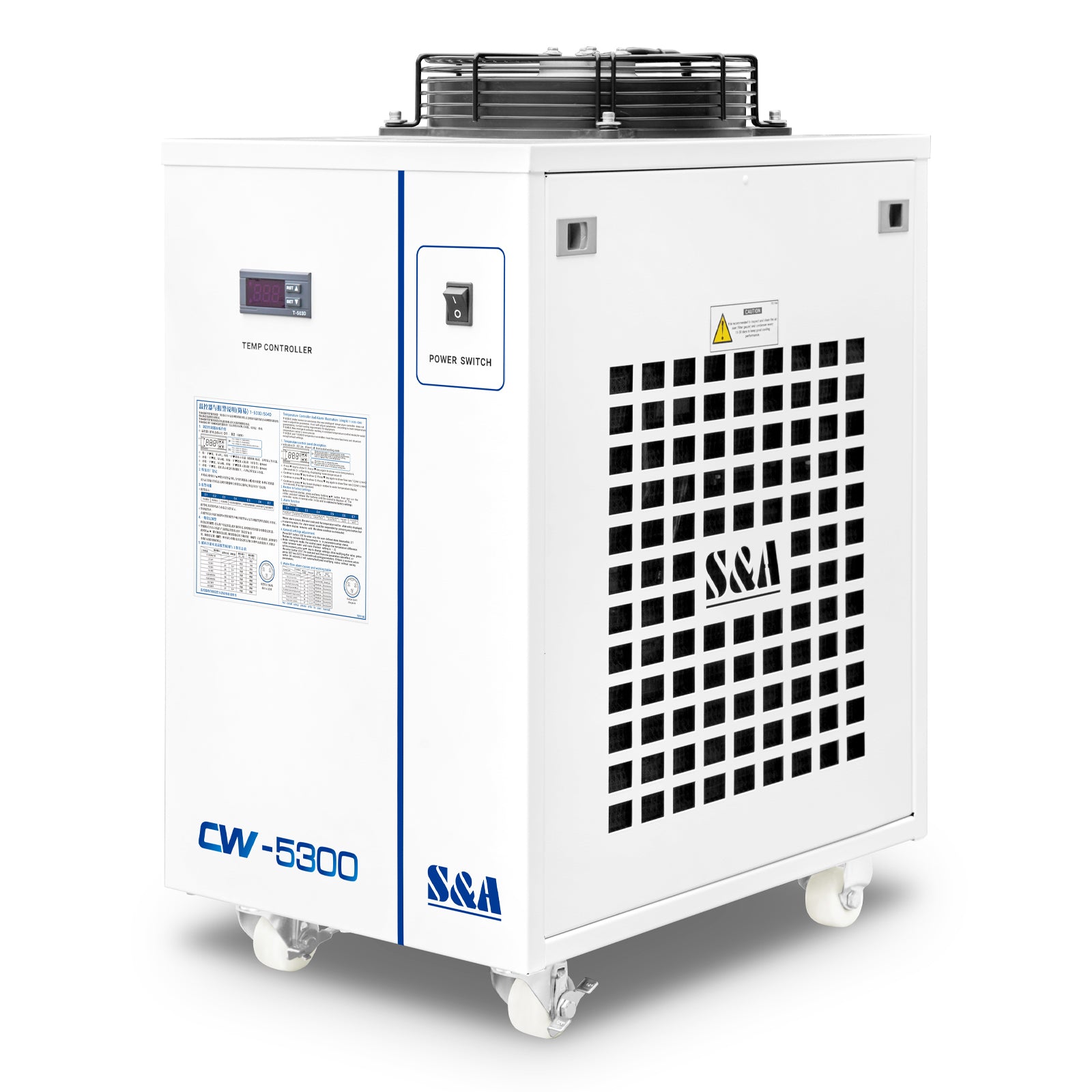

S&A 5300BN Industrial Water Chiller for 18KW CNC Spindle or Welding Machine, AC 1P 220-240V 60Hz

Original price $1,369.00 - Original price $1,369.00
Original price
$1,369.00 - $1,369.00
Current price $1,369.00

S&A CW-5300 series is high-precision compression refrigeration small water chiller,with intelligent temperature control,completed configuration,perfect protection and alarm system. S&A industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. With that 1 key solution, customers no longer need to worry about the water temperature adjustment of seasonal changes.

• 1800W cooling capacity; optional environmental refrigerant;
•  ±0.3°C precisely temperature control;
• The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
• Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
• Multiple power specifications; CE approval; RoHS approval;
• Long working life and simple operation;
• Optional heater and water filter;
• High-precision compression refrigeration water chiller, with intelligent temperature control, completed configuration, perfect protection and alarm system.


Model CW-5300BN
Voltage 220V
Frequency 60Hz
Current 2.1~6.1A
Machine power 1.31kW
Compressor Power 0.88kW, 1.18HP
Capacity 8188Btu/h
Refrigerant R-410a
Refrigeration Charge 540g
Pecision ±0.5℃
Reducer Capillary
Protection Overcurrent protection for compressor, flow alarm, over temperature alarm
Pump Power 0.37KW
Tank Capacity 10L
Inlet and outlet Rp1/2"
Pump pressure 2.7bar
Max. flow 70L/min
Net Weight 44Kgs(97lb)
Gross Weight 52Kgs(114.6lb)
Product Dimension 23.2" x 15" x 29" (590 x 380 x 740mm)
Package Dimension 26.8" x 21" x 36.2" (680 x 530 x 920mm)
