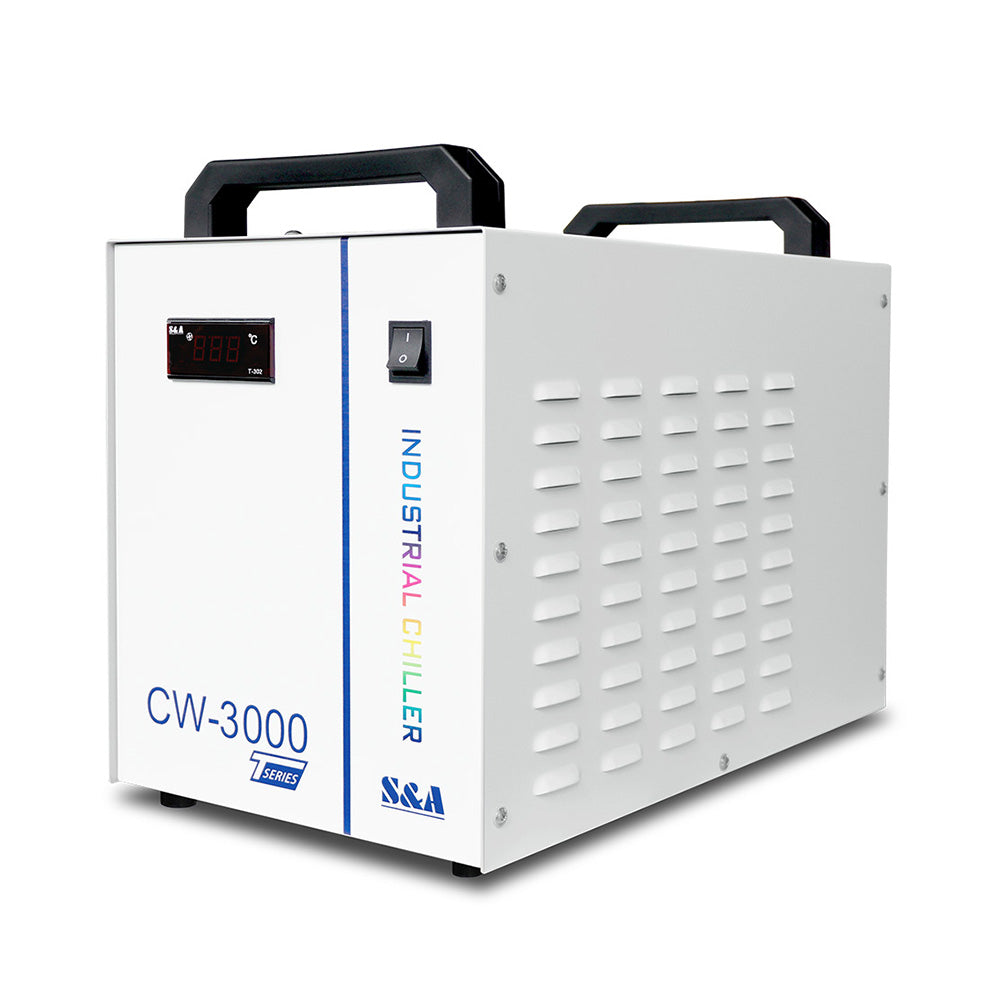

S&A 3000TG Thermolysis Industrial Water Chiller for CO2 Glass Tube of Engraving Machine, AC 1P 220-240V, 50Hz

$219.90
$219.90
Shipping calculated at checkout.
    S&A 3000TG Thermolysis Industrial Water Chiller for CO2 Glass Tube of Engraving Machine, AC 1P 220-240V, 50Hz
    S&A 3000TG Thermolysis Industrial Water Chiller for CO2 Glass Tube of Engraving Machine, AC 1P 220-240V, 50Hz

    Tech Specs

    Description

    S&A CW-3000 series thermolysis type water cooler has compact design,with energy saving,high cost performance,good protection and alarm system.
    This Water Chiller has been sold largely to Europe, South America, Asia and other markets;
    Economic cooling equipment, easy to install and operate, compact and easily movable.
    Remarks: CW3000 water chillers are equipped high speed fans inside, NOT able to control the water temperature. Please confirm before place an order. The products are nonrefundable after selling, only if quality issue.
    Used for:
    It is designed for cooling the one CO2 glass laser tube under 80W of the laser engraving and cutting machine. (Its emitting rate is lower than 60%, you can choose CW5000 water Chiller if you want the emitting rate higher than 60 %.)

    Features：

    • Specific disconnection alarm securing protection;
    • High cost performance, low failure rate;
    • Radiating Capacity is 50W / ℃;
    • Forces circulation, 9L cooling tank capacity;
    • It can extend the using life of laser tube and ensure the engraving effect better.
    • Comprehensive reference to the international radiator - type cooling system;
    • Small thermolysis water cooler;
    • With completed water flow and over high temperature alarm functions;
    • Professional forced air - cooled radiator;
    • CW-3000 Laser Water Chiller is suitable for small water cooling device;
    • Provide stable working conditions for laser devices;
    • High heat dissipating capacity and not easy to be blocked.

    Specifications

    Model CW-3000TGTY
    Voltage AC 1P 220~240V
    Frequency 50/60Hz
    Current 0.4~0.7A
    Machine power 0.07kW
    Radiating capacity 50W/℃
    Pump pressure 1bar
    Max.flow 10L/min
    N.W 9Kgs(19.8lb)
    G.W 11Kgs(24.3lb)
    Protection flow alarm
    Tank capacity 9 L
    Inlet and outlet OD 10mm barbed connector
    Dimension 490mm x 270mm x 380mm (19.3" x 10.6" x 15")
    Package dimension 550mm x 340mm x 430mm (22" x 13.4" x 17")
