RTL Hard Disk HDD for the Designjet 5500 Printers (Q1251-60067, Q1251-60323, Q1251-60090) - Refurbished

*Q1251-60323 Replaces Q1251-69306 / Q1251-60306 / Q1251-60284 / Q1251-60282*

Note: Ordering this part, you can also have the service manual for $19.99

DESCRIPTION

Q1251-60323 - RTL Version (not PostScript)

Replacing the hard disk drive is a simple task. Remove the rear panel from the rear cover that has 6 screws. The HDD is housed in a stiff foam holder. Remove the old disk drive and disconnect the data and power cables. Install the new hard disk drive and put the panel back on.  That's it!  No adjustments or calibrations are needed.

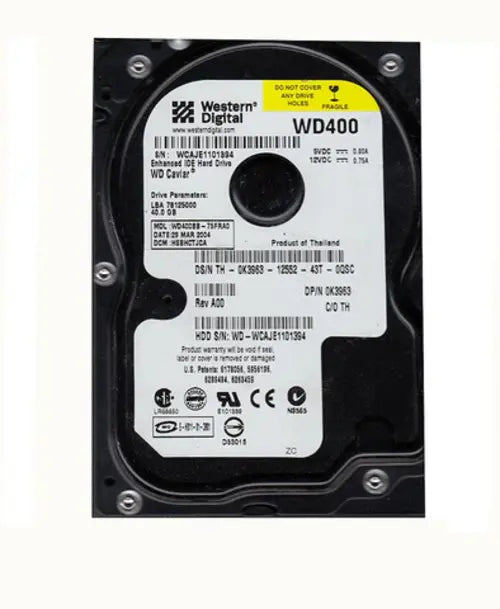

This part is the Internal Hard Disk Drive containing software, firmware for booting the system and stores the settings , and allows queuing and nesting. This is the 40GB HDD Western Digital, preloaded with HP format and software. Version 05.00.51 and must be used with a version 05.00.nn boot ROM (most common version). Correct boot ROM can be ordered here.This part is the Internal Hard Disk Drive containing software, firmware for booting the system and stores the settings , and allows queuing and nesting. This is the 40GB HDD Western Digital, preloaded with HP format and software. Version 05.00.51 and must be used with a version 05.00.nn boot ROM (most common version).

System errors related to the HDD:

• Error 1f500XX Boot Fail (May also be caused by a failing power supply unit)

Condition: Refurbished
