Tech Specs
Description

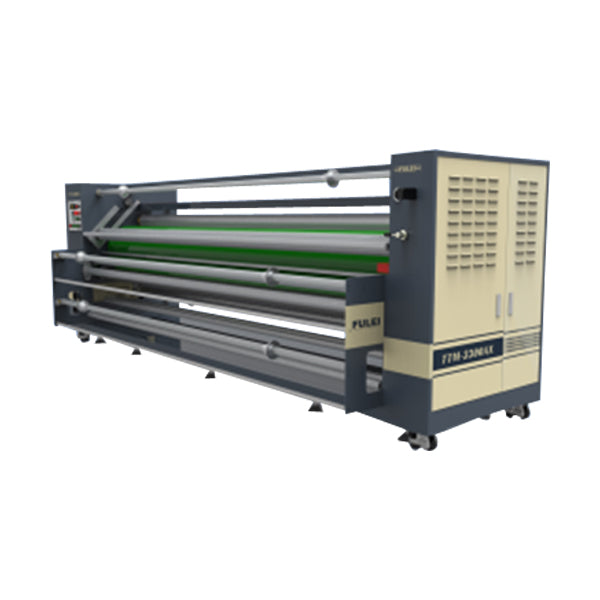

The Large Format Roll to Roll heat transfer machine 3300 (oil-warming machine) is the new larger drum type of largest heat transfer equipment, available for dye sublimation ink prints, oil heating. It fully represents the advantage of the speed and good elect in transfer printing. It adopts the oil heating mode to control the temperature, achieving speed in warming and good effect in the heat preservation, as well as improving the productivity. In addition, it has functions such as automatic blanket, automatic lifting backing paper and automatic rolling picture etc.
Features
Working width: 3300mm
Drum OD: 420mm
Speed: 0-4.8m/min
Power consumption: 36Kw
Stainless steel Heater Qty: 12pcs
Rated current: 56A
Motor: 2.2Kw
Net Weight: 3000kg
Blanket: Φ3360X3460Xδ6mm
Max OD unwind/rewind: 300mm
Size: 4420*1650*1545mm
Air expanded shaft of unwind for Prints and fabric / Others multi core shaft
With air compressor
