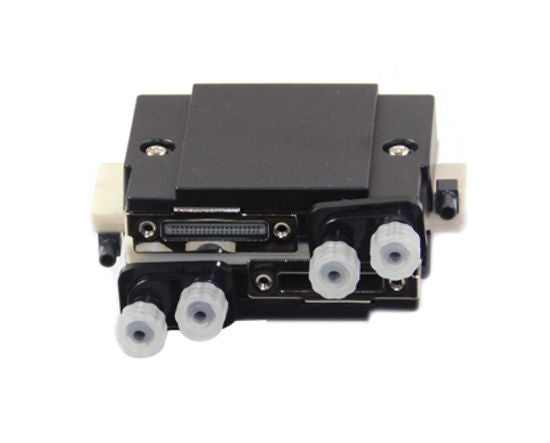

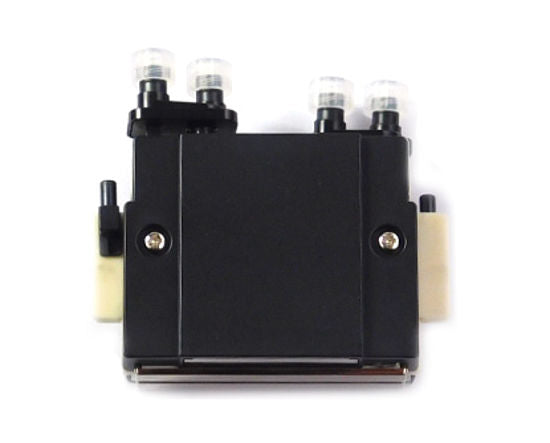

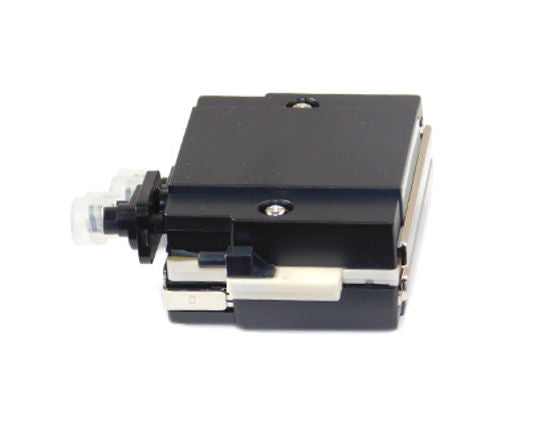

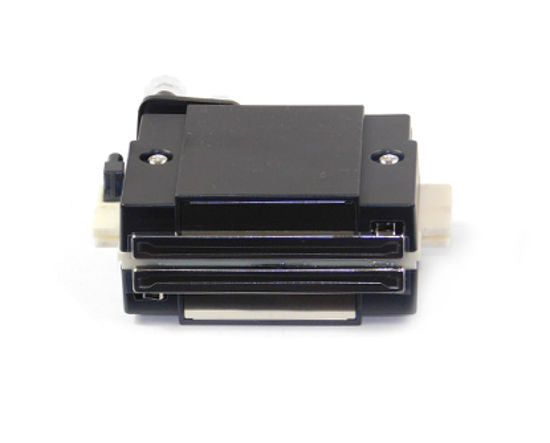

Rastek H652 Printhead CE4 Toshiba TEC 01-0068 - 45129144

This printhead is suitable for EFI Rastek H652 printers. This is the original EFI part (number 45129144). We recommend to change the head cables when installing a new printhead.

Product Specifications

• Technology: Multi-drop grayscale micro-piezo
• Grayscale levels: 16
• Active nozzles: 636
• Print swathe width: 53.6 mm
• Nozzle pitch: 169 μm
• Native resolution: 150 dpi
• Printhead weight: 148 g
• Dimensions: 85 x 70 x 23 mm
• Drop volume: 6 - 90 pl
• Typical firing frequency: 2.8 - 28 kHz
• Ink Compatibility: oil-based pigment ink and UV curable pigment ink
