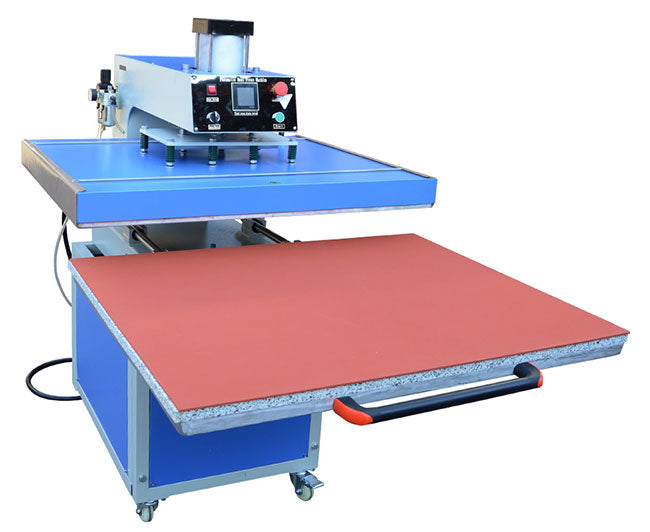

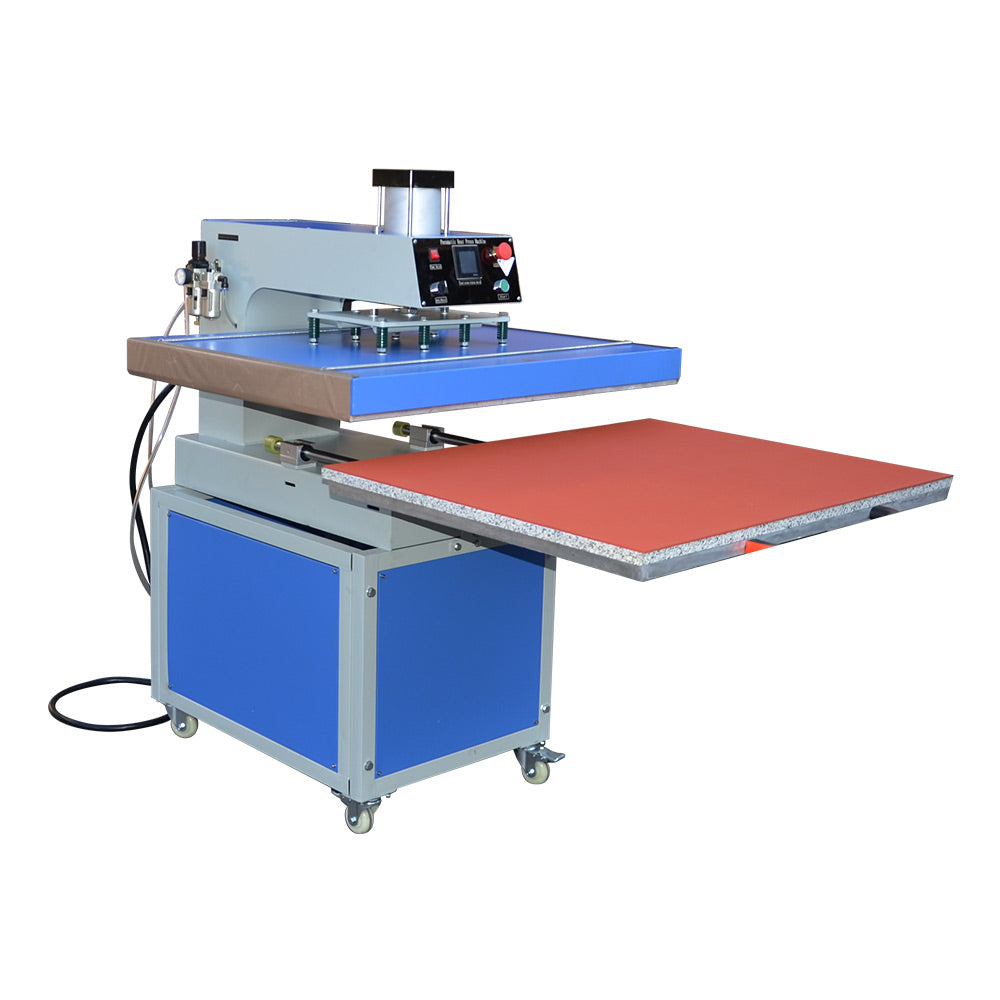

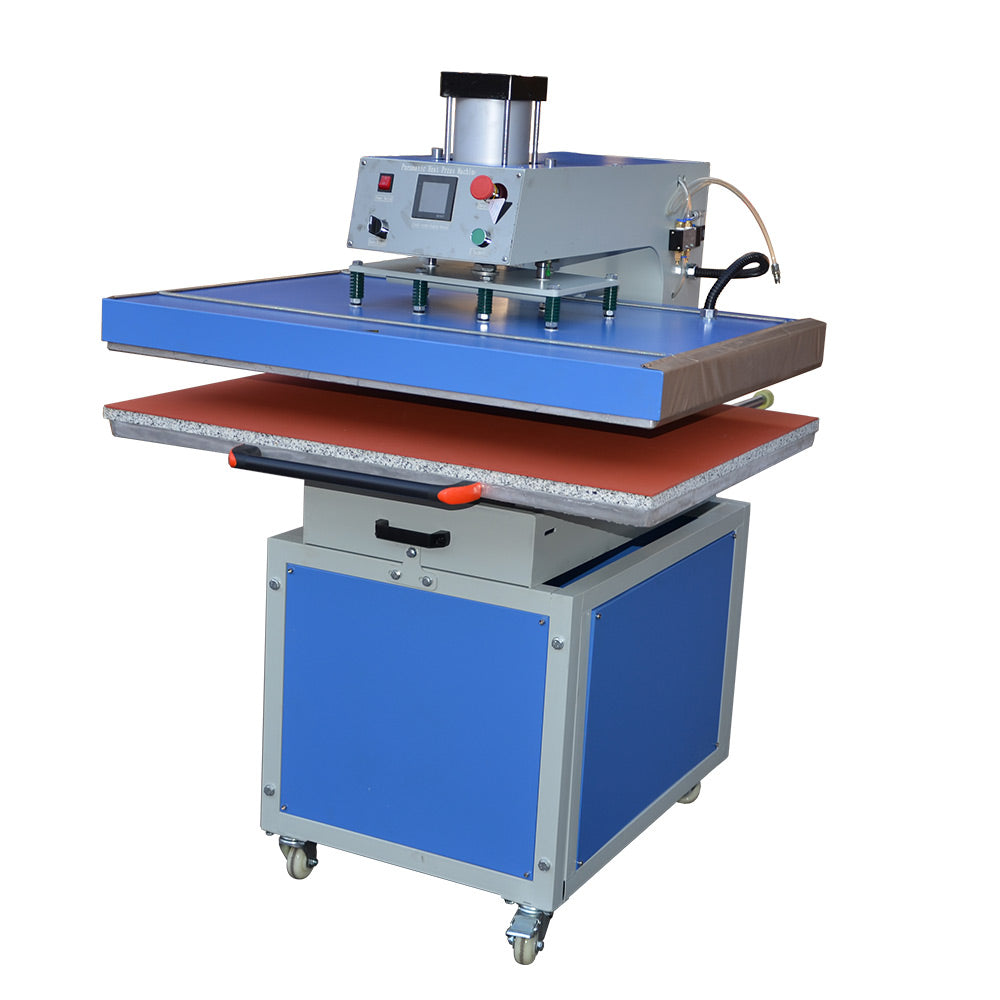

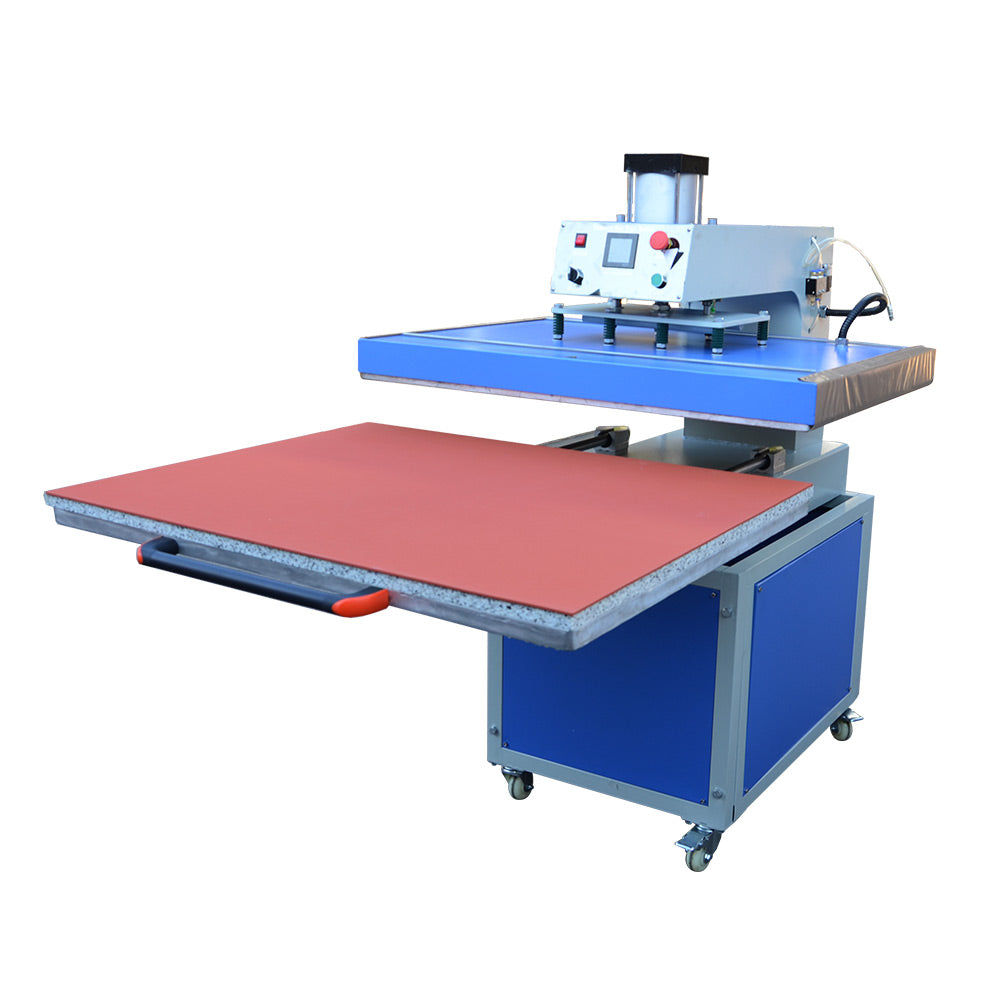

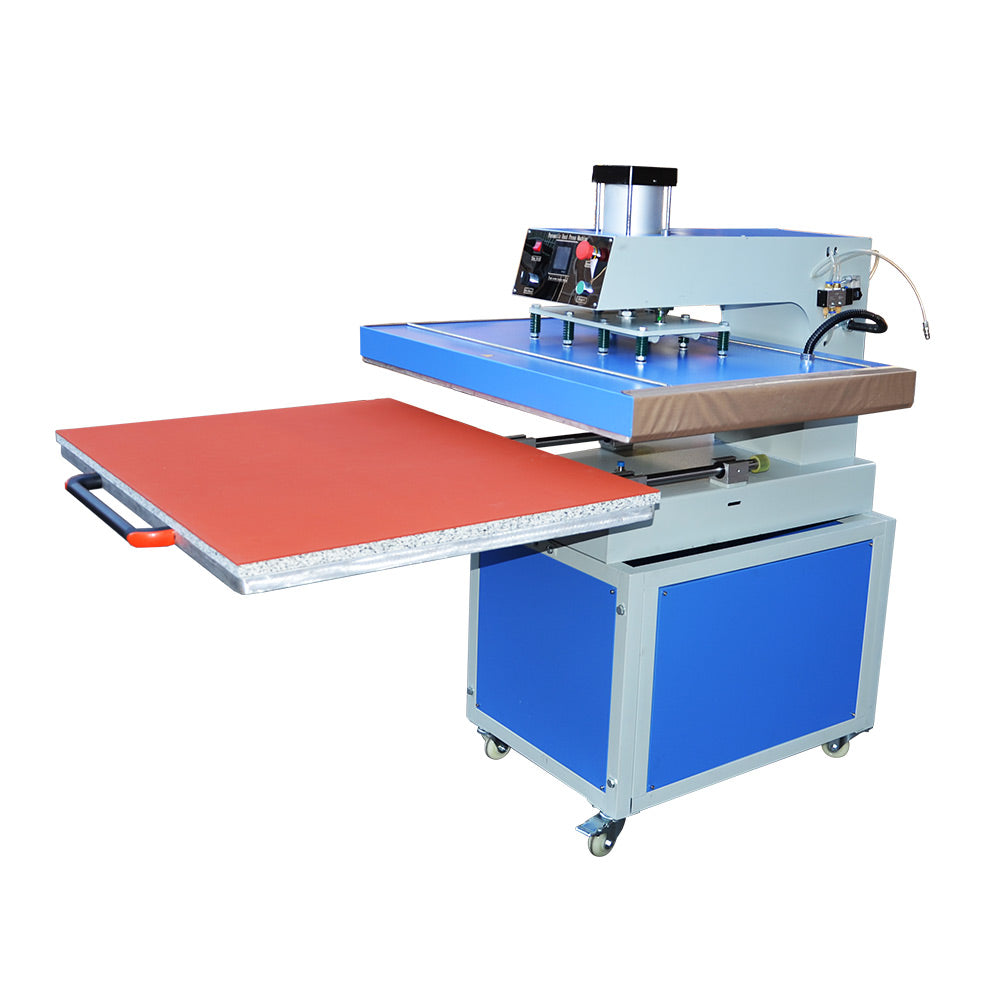

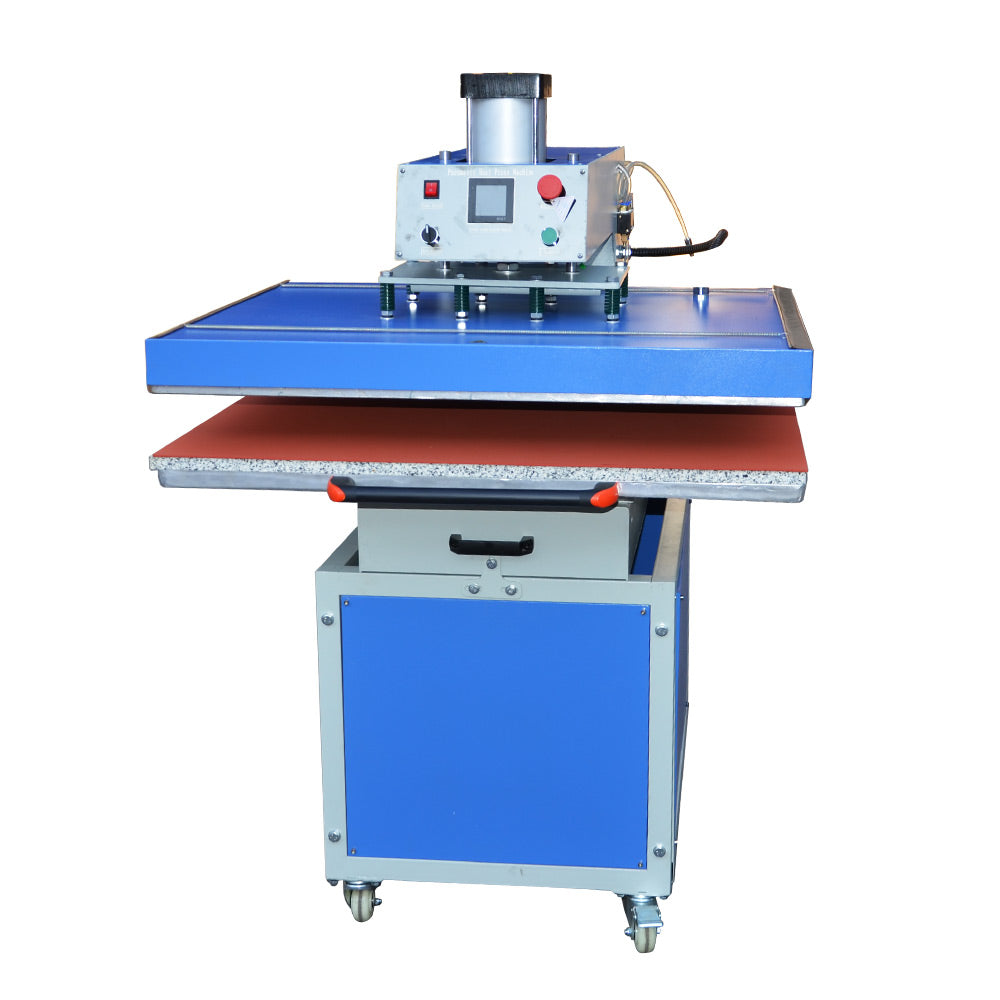

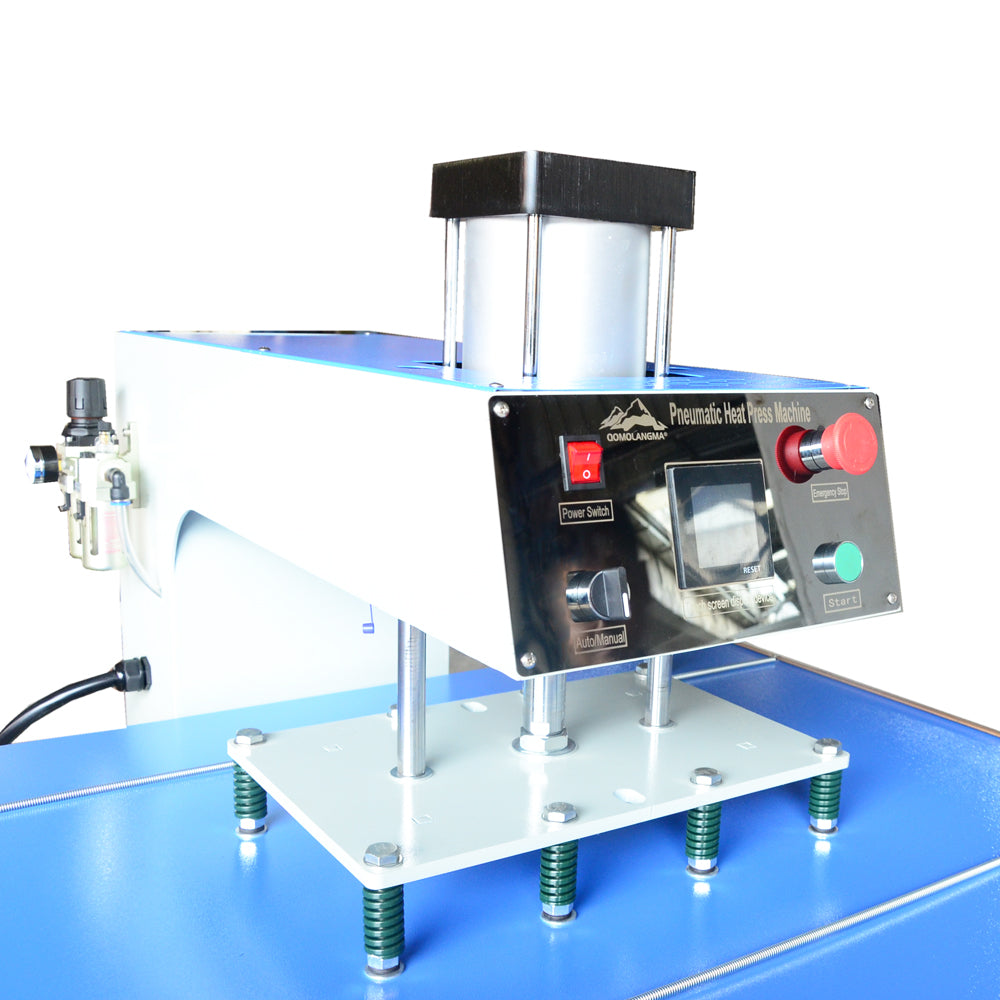

Qomolangma 31" x 39" Pneumatic Drawer-Type Large Format Heat Press 220V 1P 30A
Original price
$3,499.99
-
Original price
$3,499.99
Original price
$3,499.99
$3,499.99
-
$3,499.99
Current price
$3,499.99
Specifications:
WorktableSize: 31in x 39in (800mm x 1000mm)
Voltage: 220V, 50hz / 60hz,1P,30A
Power: 6600W
Time range: 0-999 Seconds
Temperature range: 32℉ - 482℉/0°C - 250°C ,suggested temperature under 428℉/220℃
Pressure: 0-114 Psi
Preheating Time:±30 minutes
Machine Size: 40 in(L) x 36.6 in(W) x 58 in(H)/1010 mm(L)x 930 mm(W) x 1470 mm(H)
The heat press can be taken apart , make sure the width of door is larger than 32.3 in/820 mm
Package Size: 60.2 in x 42.5 in x 37 in/1530 mm x 1080 mm x 940 mm
Gross Weight: 649 lbs /295kg
Warm Tips:
1.You need to prepare one air compressor. And the suggested specification is that power greater than 1.5 KW, capacity about 50 L, pressure more than 1 MPa.
2.The heat press is delivered without a power plug, connection to the electrical power source shall be done by a licensed electrician. The electrician can either install a suitable amperage, phase and voltage rated plug for whatever country the unit is being installed.
Attentions
1. This machine must connect to reliable ground wire, then come into use, to ensure safety operation and production.
2. The pressure should be chosen appropriately , do not adjust the pressure arbitrary, so as not to damage the machine due to over pressure.
3. Do not put your hands under the heating plate during the pressing process, so as to avoid scald.
4. During the pressing process, in the case of special circumstances, press the emergency stop button ,then the heating plate will automatically rise, so accident can be avoid.
5. At the end of the work, the staff must cut off the main electricity supply and turn off the gas source before leave.
Temperature and time requirements of different materials:
Pure cotton: 180-220 ℃ (356-428℉), 25sec
Polyester: 180℃ (356℉), 15sec
Pearl board: 180℃ (356℉), 120-180sec
Metal pendant: 180℃ (356℉), 60sec
Mouse pad: 180℃ (356℉), 15sec
Vitrolite: 220℃ (428℉), 180sec
Key ring pendant: 180℃ (356℉), 100sec
Ceramics: 180-220 ℃ (356-428℉), 180sec
Time and Temperature settings
1.Temperature setting: press the "SET" button, then the numbers on the lower line blink, temperature-setting mode starts. You can press ▲and ▼ to adjust the temperature, press and hold the "SET" button for 2 seconds to confirm the setting.
2.Time setting: press the increase and decrease button to set time. The letter "H" stands for "hour", "M" for "minute", and "S" for "second".
Details:
WorktableSize: 31in x 39in (800mm x 1000mm)
Voltage: 220V, 50hz / 60hz,1P,30A
Power: 6600W
Time range: 0-999 Seconds
Temperature range: 32℉ - 482℉/0°C - 250°C ,suggested temperature under 428℉/220℃
Pressure: 0-114 Psi
Preheating Time:±30 minutes
Machine Size: 40 in(L) x 36.6 in(W) x 58 in(H)/1010 mm(L)x 930 mm(W) x 1470 mm(H)
The heat press can be taken apart , make sure the width of door is larger than 32.3 in/820 mm
Package Size: 60.2 in x 42.5 in x 37 in/1530 mm x 1080 mm x 940 mm
Gross Weight: 649 lbs /295kg
Warm Tips:
1.You need to prepare one air compressor. And the suggested specification is that power greater than 1.5 KW, capacity about 50 L, pressure more than 1 MPa.
2.The heat press is delivered without a power plug, connection to the electrical power source shall be done by a licensed electrician. The electrician can either install a suitable amperage, phase and voltage rated plug for whatever country the unit is being installed.
Attentions
1. This machine must connect to reliable ground wire, then come into use, to ensure safety operation and production.
2. The pressure should be chosen appropriately , do not adjust the pressure arbitrary, so as not to damage the machine due to over pressure.
3. Do not put your hands under the heating plate during the pressing process, so as to avoid scald.
4. During the pressing process, in the case of special circumstances, press the emergency stop button ,then the heating plate will automatically rise, so accident can be avoid.
5. At the end of the work, the staff must cut off the main electricity supply and turn off the gas source before leave.
Temperature and time requirements of different materials:
Pure cotton: 180-220 ℃ (356-428℉), 25sec
Polyester: 180℃ (356℉), 15sec
Pearl board: 180℃ (356℉), 120-180sec
Metal pendant: 180℃ (356℉), 60sec
Mouse pad: 180℃ (356℉), 15sec
Vitrolite: 220℃ (428℉), 180sec
Key ring pendant: 180℃ (356℉), 100sec
Ceramics: 180-220 ℃ (356-428℉), 180sec
Time and Temperature settings
1.Temperature setting: press the "SET" button, then the numbers on the lower line blink, temperature-setting mode starts. You can press ▲and ▼ to adjust the temperature, press and hold the "SET" button for 2 seconds to confirm the setting.
2.Time setting: press the increase and decrease button to set time. The letter "H" stands for "hour", "M" for "minute", and "S" for "second".
