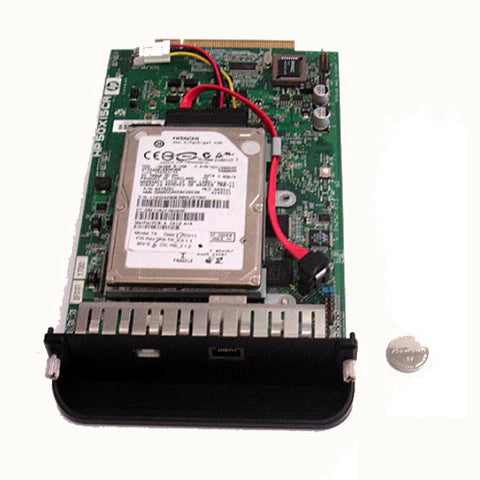

Formatter Board & New 160gb Upgrade Hard Disk Drive HDD for the HP Designjet Z3100 Series (Q5669-60175)

Original price $265.00 - Original price $265.00
Original price
$265.00
$265.00 - $265.00
Current price $265.00

*$50.00 Back With Prepaid Return - Final Price $214.00*

DESCRIPTION

This the direct replacement part the SATA type hard disk drive formatter, compatible with all variants of the Designjet Z3100 (including PostScript). Replacing this part resolves Error 08:10, 59.0 and many 79:04 errors. Replacing the formatter is a very easy affair. With the power cord removed from the plotter, undo the 2 thumb screws (a small flat blade screwdriver may be needed). Remove the formatter by pulling straight up on it. Install the new formatter by inserting it in the opening. It will drop it until it hits the connector on the main logic board. Press on the formatter until you feel it seat in the connector. Nothing to it! The formatter will assume your plotter's ID and Password.

Please note that formatters and hard disk drives that have been installed on other Designjet Z3100 plotters will not work because their ID and Passwords will be wrong.

  • Virgin HDD & Firmware - never installed on a plotter (very important)
  • New Firmware Rev. TR12_MVL_7.0.0.3 on 160GB Hard Disk Drive
  • New 3V Lithium Battery for non-volatile memory
  • Truly Plug & Play Repair - No tools or setup needed
  • Formatter works in the 24" and 44" Designjet Z3100 PostScript and RTL versions
  • Prepaid Return Shipping Label
  • 12 Month Warranty

Other Options:

System error codes related to the formatter:

  • Error 06:YZ
  • Error 08:11



COMPATIBILITY

  • HP DesignJet Z3100 24-IN Photo Printer
  • HP DesignJet z3100 gp 24-in photo printer/advanced profiling solution bundle
  • HP DesignJet Z3100 44-IN Photo Printer
  • HP DesignJet Z3100 24-In Photo Printer
