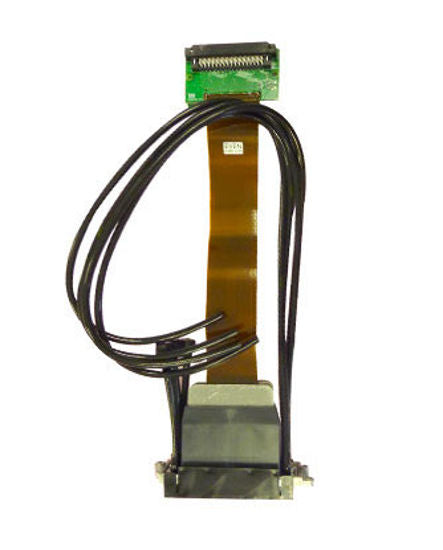

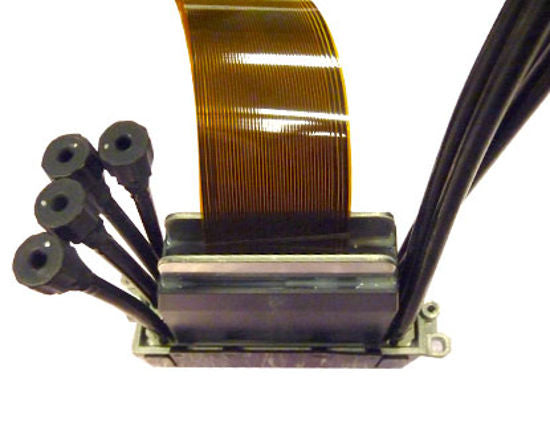

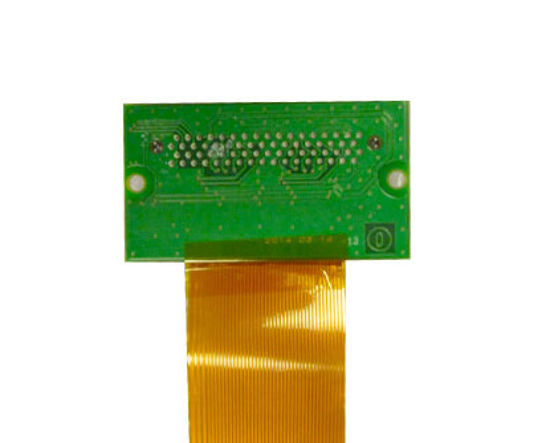

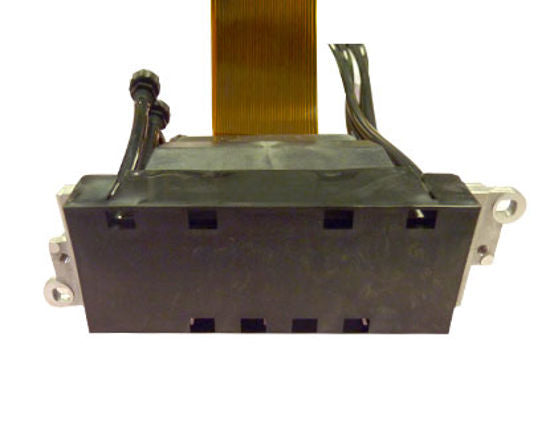

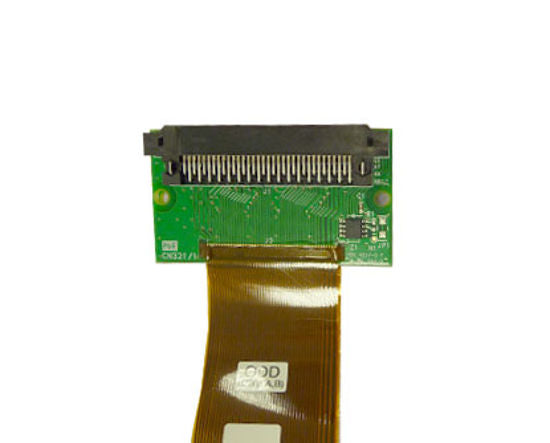

Mimaki JFX500-2131 / UJV500-160 Printhead GEN5 Assy - M022626
Original price
$2,156.58
-
Original price
$2,156.58
Original price
$2,156.58
$2,156.58
-
$2,156.58
Current price
$2,156.58
Description
This printhead GEN5 (MH5420/5440) is suitable for Mimaki JFX500-2131 & UJV500-160 printers. It has two and four colour support, 8 levels of grayscale and up to 600 npi nozzle density. This is the original Mimaki part (number M022626 replacing M013497, M016979 and M015068).
Compatible Printer: Mimaki JFX500-2131 / UJV500-160 / UJV55-320
Product Specifications
- Dimensions: 89 x 25 x 69 mm (excluding cables)
- Head materials: SST, Nickel alloy and Epoxy Adhesive
- Nozzle plate surface: Coated SST
- Number of nozzles: 4 x 320 nozzles
- Nozzle spacing: 0.1693 mm
- Nozzle density: up to 600 npi
- Piezo yype: D33 Stacked PZT
- Temperature control: Integrated Heater and Thermistor
- Operator temperature range: Up to 80° C
- Native drop volume: 7 pl
- Drop volume range: 7 - 35 pl
- Drop velocity: 7 m/s
- Jetting frequency: Up to 60 kHZ
- Life: 100 billion actuations per nozzle
Compatible firmware:
- UJV55-320 FW Ver. 2.5 or later
- SIJ-320UV FX Ver. 1.90 or later
- SWJ-320EA FW Ver. 1.30 or later
- UJV500-160 FW Ver. 2.00 or later
- JFX500-2131 FW Ver. 3.40 or later
