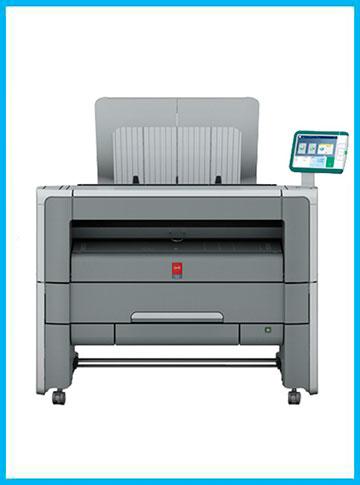

OCE 340

Original price $6,499.99 - Original price $6,499.99
Original price
$6,499.99 - $6,499.99
Current price $6,499.99





    Touch the new way of black & white large format printing!

    The Océ ClearConnect color touchscreen interface on this large format printer model supports multi-touch gestures for intuitive control. It's ideal for decentralized printing environments featuring workgroups of CAD professionals who require both productivity and ease-of-use. Walk-up users will appreciate the ability to access technical document files from their cloud of choice, preview files on the color screen, and print – all from the printer's touchscreen.

    Now, printing is as clear and easy as using a tablet

    With the new Océ ClearConnect color user panel, you can pan, zoom, swipe, spread and much more. Pull up a document, zoom and pan to different areas. See the orientation of documents with a live preview while scanning or copying to avoid errors. Save time with easy shortcuts.

    Access the Cloud Directly at the Printer

    You can access your documents directly at the printer whether your files are in the cloud, on a USB stick, or on a network location. Just browse and swipe to your files, and print them. In addition, you can scan directly to virtually unlimited destinations in the cloud or your Intranet.

    When you have a file on your iPad® mobile device, just use the Wi-Fi infrastructure of your company to access the Océ Publisher Mobile app. Or, print your large format documents from your desktop PC via Océ Publisher Select software to manage more complex document sets.

    From Cold Sleep To Print-in-Hand in Less Than 40 Seconds

    No tradeoff between energy consumption and getting a fast first print thanks to the energy-efficient Océ Radiant Fusing technology. Compared to a slow 4 minutes with conventional printers, this printing technology easily saves you an hour a day in printing delays, increasing your effective speed up to 300%. Print up to 4 or 6 D-size plots/ minute with virtually no warm-up time. Work faster by minimizing waiting time and using less energy.

    Get better color scanning results with Océ Color Image Logic technology

    This technology automatically compensates for wrinkles and light colors to produce superior results. Originals are inserted face-up and paper width is detected automatically to minimize errors and waste.


    Océ PlotWave 340/360 Large Format Printer Technology
    Description Black & white all-in-one large format print/copy/scan system with color scanner
    Imaging Technology Electrophotography (LED), organic photoconductor (OPC), clean closed toner system, Océ Radiant Fusing technology
    Toner Océ black toner: 400 grams per bottle
    Speed Black & White:
    Océ PlotWave 340: 4ppm (D-size/A1)
    Océ PlotWave 360: 6ppm (D-size/A1)
    Resolution 600 x 1200 dpi
    Configuration Multifunctional or printer only
    Warm-Up Time Less than 1 second, thanks to Océ Radiant Fusing Technology
    First Print Time 31 seconds (D-size/A1)
    From sleep mode: 40 seconds (D-size/A1)
    Size Main Engine
    (W x D x H)
    60.6" x 31.5" x 58.9" (1,527 x 800 x 1,495 mm)
    including top delivery tray
    Weight Main Engine 397 lbs. (180 kg)
    Certifications EPA ENERGY STAR®, FEMP, TüV GS, CETECOM, CE, UL, cUL, CB, FCC Class A, RoHS
    Paper Handling
    Paper Rolls 1 or 2 rolls
    Maximum Paper Capacity Up to 1,300 ft., 650 ft. on a roll (up to 400 m, 200 m per roll)
    Paper Weight 18 - 28 lb. Bond; 60 - 110 g/m 2
    Roll Width 11" - 36" (297 - 914 mm)
    Output Length 16.5" - 577.4 ft. (419 mm - 176 m)
    Output Delivery Top delivery tray with air separation technology; up to 50 E/A0-size plots collated
    Media Type Paper: Plain paper, Transparencies, Recycled paper, Colored paper

    Film: Polyester, Antistatic, Contrast
    Description Océ PowerM® controller with Windows® Embedded Standard 7
    Client Operating System Support Océ print driver for Windows® 7 (32 & 64-bit)/Windows Vista® (32 & 64-bit)/Windows XP®/Windows Server 2003®/ Windows Terminal Server®, Citrix® Metaframe and Presentation Server Adobe® Postscript® 3™ driver for Windows XP® and Server 2003®, Mac® OS v9, OSX (only Adobe® Postscript® 3/ PDF driver supported)
    Processor Intel Celeron T3100 @1.90GHz
    Memory 4 gb DDR2
    Hard Disk 500 gb
    Interface Ethernet 100 Mbits/s, 1 Gbit/s
    Page Description Language TIFF, JPEG, HP-GL, HP-GL/2, DWF, Calcomp 906/907/951, CALS, NIRS, NIFF, ASCII, C4
    Security E-shredding, IPSec, HTTPS, extended security protection for administrator, audit logging
    Options Adobe PostScript 3/PDF file interpreter
    Cloud WebDAV
    Description Contact Image Sensor (CIS) with Océ Color Image Logic™ technology
    Scan Resolution 600 x 600 dpi
    Scan Speed Copying: Up to 31.8 ft./min. (9.7 m/min.) Black & white scanning: Up to 47.9 ft./min. (14.6 m/min.) Color scanning: Up to 15.7 ft./min. (4.8 m/min.)
    Scan Format TIFF, PDF, PDF/A, JPEG, CALS, multi-page PDF, multi-page PDF/A and multi-page TIFF
    Scan Destination Local USB flash drive, FTP, SMB, Controller, mobile device via Océ Mobile WebTools
    Original Width 8.2" - 36" (208 - 914 mm)
    Original Length 8.2" - 52.5 ft. (208 mm - 16 m)
    Original Thickness Maximum 0.03" (0.8 mm) non-rigid documents
    Zoom Scale to standard format
    Custom: 10 - 1,000%
    Preset Modes Lines & text, Lines & text draft, Folded lines & text, Photo, Colored, Dark original, Blueprint
    Size Scanner
    (W x D x H)
    43" x 12" x 5.5" (1,097 x 308 x 140 mm)
    Weight Scanner 54 lbs. (24.5 kg)
    Description Concurrent print, copy and scan of single documents or sets
    Printer drivers Microsoft® certified Windows® driver 2.0, Adobe® Postscript 3™ driver
    Job submission software USB flash drive, Océ Mobile WebTools for iOS, Android, Symbian and BlackBerry®, Océ Publisher Mobile for iPad, Océ Publisher Express, Océ Publisher Select software
    Job management Personalized Smart Inbox with history, Manage queue, Océ Express WebTools, Secure controller access, remote shutdown and restart
    Accounting Option: Océ Account Center
    Hardware Océ Scanner Express II, second roll unit, front original tray, Océ Estefold 2400 fanfold, Océ 4312 Estefold fullfold with Extended Stacker, Removable Hard Drive Kit with optional additional Hard Drive, and Rear Delivery Tray
    Software Océ View Station, Océ Client Tools™ software, Adobe® Postscript 3/PDF file interpreter, Océ Repro Desk® Studio, Océ Repro Desk Web Client, Océ Repro Desk Professional
