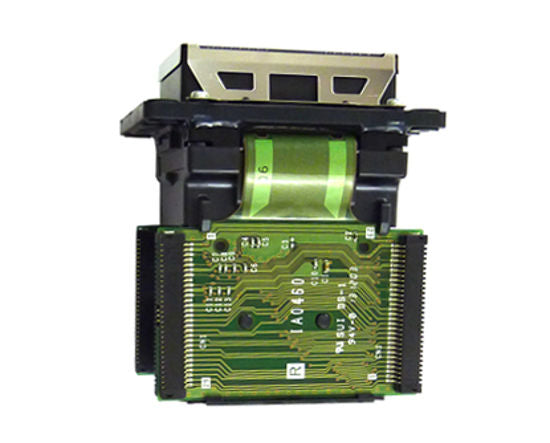

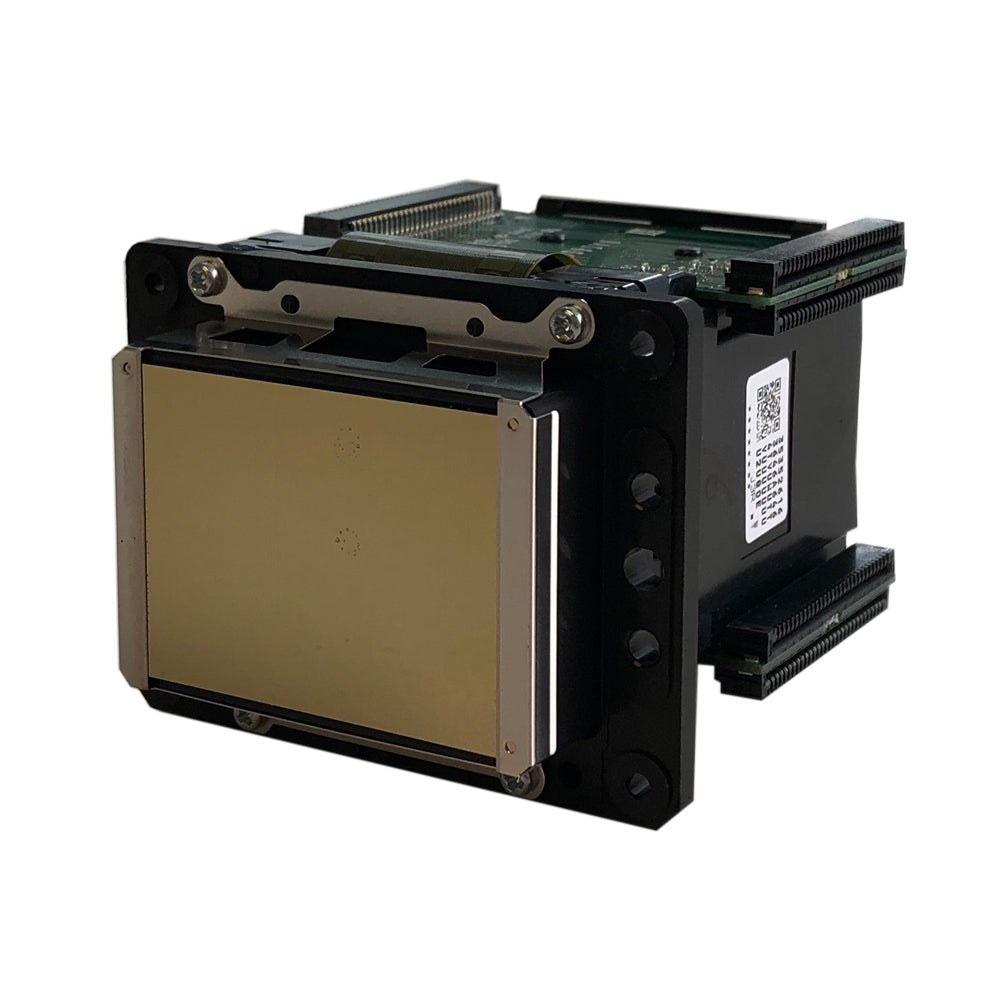

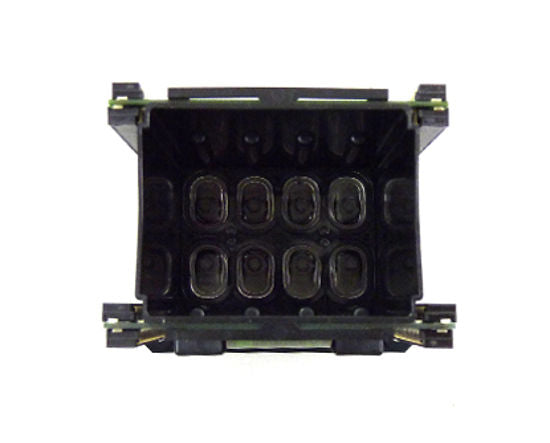

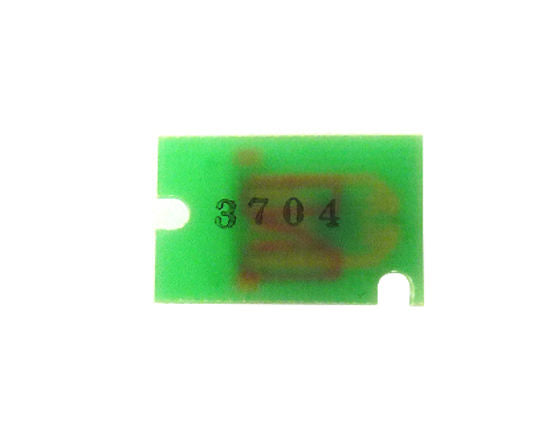

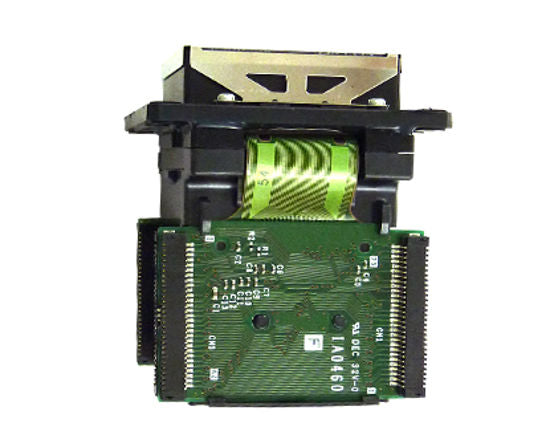

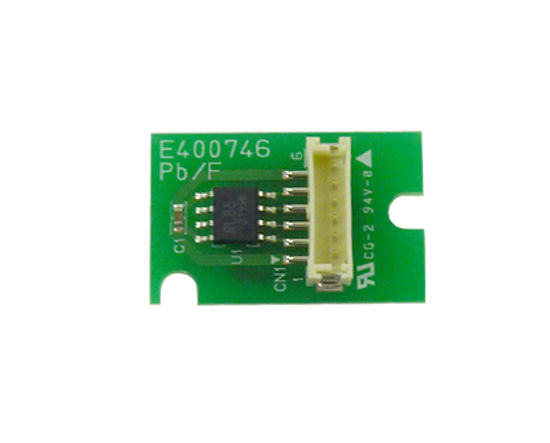

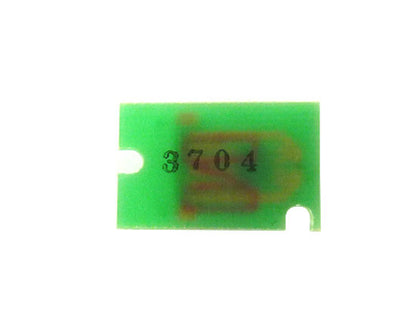

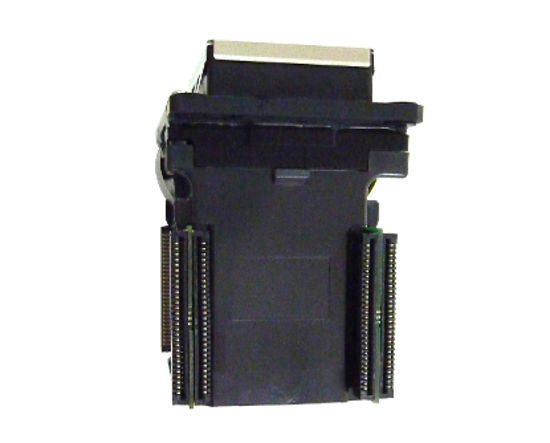

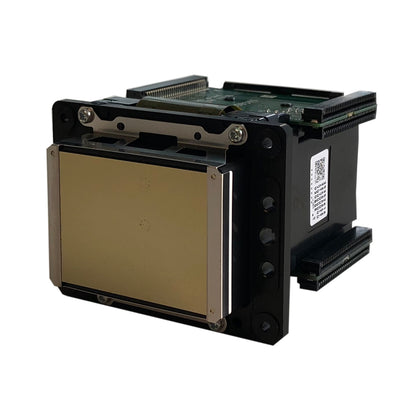

Mimaki JV34 / TS34 Printhead ID Set - M010792
Description
This printhead assy is suitable for the Mimaki JV34-260 printers. The JV34-260 Printhead ID Set has a native resolution of 360 dpi, 8 nozzle lines (corresponding with 8 independent ink channels) and 180 nozzles per line.
The JV34-260 Printhead ID Set can be used in 4-colour or 8-colour printers and has a minimum, variable droplet size of 1.5 pico litre (max. droplet size is 21 pico litre). The typical firing frequency for the JV34-260 Printhead ID Set is 8 kHz.
The JV34-260 Printhead ID Set solvent printhead is based upon the most recent Epson technology. This is the original Mimaki part (number M010792).
To be used with: Mimaki JV34-260 / Mimaki TS34-1800A
Specification:
Model
|
PRH-MIM-002
|
Technology | Micro-Piezo |
Native resolution | 360 dpi |
Min. Droplet Size | 1.5 pico litre |
Tot. Amount of Nozzles | 1440 (8 lines x 180 nozzles) |
Firing Frequency | 8 kHz |
Ink Compatibility | Eco-solvent and mild solvent |
Damper type | Requires DX6 Valve Dampers |
