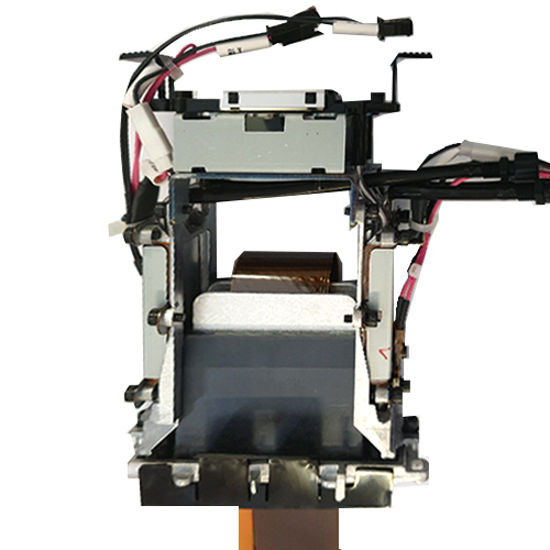

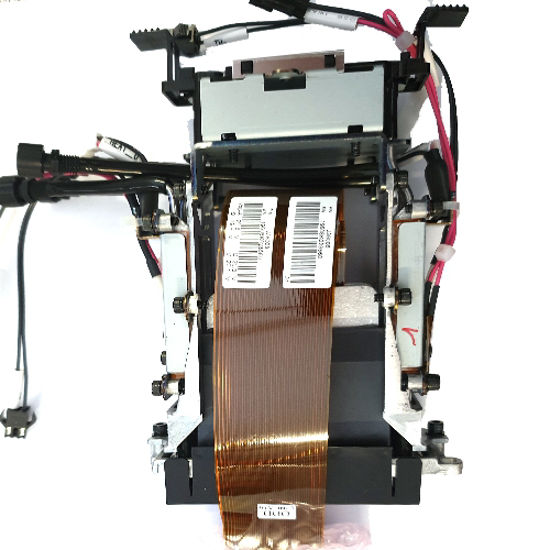

Mimaki JFX200 Printhead - M022625

Original price $2,493.70 - Original price $2,493.70
Original price
$2,493.70
$2,493.70 - $2,493.70
Current price $2,493.70

Description

This printhead GEN5 is suitable for Mimaki JFX200-2513 printers. It has two and four colour support, 8 levels of grayscale and up to 600 npi nozzle density. This is the original Mimaki part (number M022625 replacing M017004 and M015028). We recommend to change the head cables when installing a new printhead.

Product Specifications

  • Dimensions: 89 x 25 x 69 mm (excluding cables)
  • Head materials: SST, Nickel alloy and Epoxy Adhesive
  • Nozzle plate surface: Coated SST
  • Number of nozzles: 4 x 320 nozzles
  • Nozzle spacing: 0.1693 mm
  • Nozzle density: up to 600 npi
  • Piezo yype: D33 Stacked PZT
  • Temperature control: Integrated Heater and Thermistor
  • Operator temperature range: Up to 80° C
  • Native drop volume: 7 pl
  • Drop volume range: 7 - 35 pl
  • Drop velocity: 7 m/s
  • Jetting frequency: Up to 60 kHZ
  • Life: 100 billion actuations per nozzle

Printer compatibility
