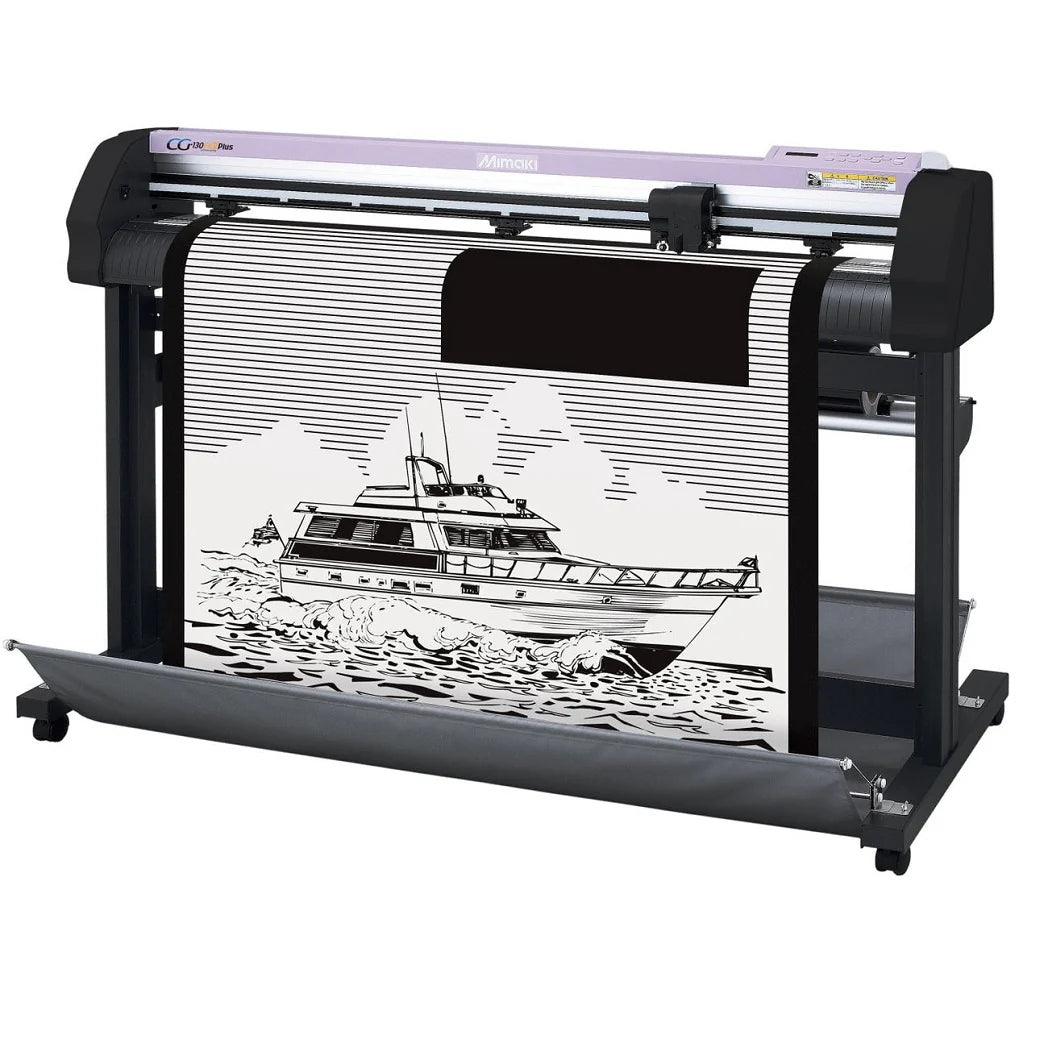

62" Mimaki CG-130FXII Vinyl Cutter with Stand

$6,995.00
$6,995.00
Shipping calculated at checkout.
    62" Mimaki CG-130FXII Vinyl Cutter with Stand

    Tech Specs

    62" Mimaki CG-130FXII Vinyl Cutter with Stand

    Acceptable Sheet Width: 62" (1580cm)

    Effective Cutting Area: 51.2" (130cm)

    Max. Cuttting Speed: 39.3" (100cm) / second

    High Speed Continuous Crop Mark Detection

    An optical sensor enables automatic consecutive detection of crop marks throughout the nested image which the Inkjet printer prints, in combination with the automatic adjustment function to obtain precise contour cutting.

    By continuously detecting a maximum of 4 points, nested images in both X axis and Y axis can be cut aligning each image automatically.

    Accurate Media Feeding Ensures Precise Contour Cutting

    Necessary media length is fed in advance to reduce tension during cutting. This functions increases the precision of long-length print media cutting.

    "HALF CUT" Mechanism, a Proprietary Technology of Mimaki

    With the original half cut function, the backing sheet can be cut leaving a little bit of half cut connecting points,which can be easily detached when necessary.Various media without backing sheets can be also cut.



    Other Functions

    • Selectable clamp pressure with high and low setting ensures accurate cutting of various media.
    • Selectable three jog speeds ensure proper and easy positioning of the head to the point.
    • Over-cut function makes the starting and ending points overlapped, which eliminates uncut portion of the media.
    • Media can be loaded from back or front.
    • Up to 6 roll media can be set at a time(1 set standard).
    • Plug-in cutting software for CorelDRAW and Illustrator is included.
    • A special adaptor to use commercially available pens and USB interface are included.



     Features

    The Mimaki CG-FXII Series roll-based cutting plotters include a number of features for producing a wide range of contour-cut pieces. High-speed continuous crop mark detection.

    An optical sensor enables automatic, consecutive detection of crop marks throughout the nested image, in combination with an automatic adjustment function for precise contour cutting.

    Half cut mechanism with the proprietary half cut function where the backing sheet can be cut leaving behind a small connecting point that can be easily detached when necessary. This enables easier handling when removing the contour cut piece from the sheet.

    Over cut function  - An over cut function makes a cross cut at the start and end positions, resulting in sharp edges with no undercut fragments.



    Aplications



    • Cut-Vinyl Signage
    • Decals
    • Graphics
    • Labels
    • Logos
    • Signage
    • Stickers



    Specifications

      CG-60SRIII CG-100SRIII CG-130SRIII
    Acceptable sheet width 90 - 740 mm
    (3.5 - 29.1")    		 90 - 1,250 mm
    (3.5 - 49.2")    		 90 - 1,550 mm
    (3.5 - 61.0")
    Effective cutting area *1 606 mm × 51 M (23.9" x 167.3') 1,070 mm × 51 M (42.1" x 167.3') 1,370 mm × 51 M (53.9" x 167.3')
    Maximum speed Cutting: 70 cm/s, Moving: 100 cm/s
    Adjustable speed range 1 - 10 cm/s (1 cm/s step adjustment): 0.4 - 3.9"/s (0.4"/s step adjustment)
    1 - 70 cm/s (5 cm/s step adjustment): 0.4 - 27.6"/s (2.0"/s step adjustment)
    Mechanical resolution X direction: 2.5 μm、Y direction: 5 μm
    Command resolution 25 μm or 10μm（ MGL-IIc） / 100 μm, 50 μm（ MGL-Ic1）
    Repeatability *2 ± 0.2 mm / 2 M
    Effective Repeatability *3 586 mm × 2 M 1,050 mm × 2M 1,350 mm × 2M
    Maximum pressure 500g
    Range
    of down pressure    		 Cutter 10 - 20 g（2 g step）, 20 - 100 g（5 g step）, 100 - 500g（10g step）
    Pen 10 - 20 g（2 g step）, 20 - 100 g（5 g step）, 100 - 150g（10 g step）
    Acceptable sheet *3 Vinyl sheet, Fluorescent type vinyl sheet, Reflective sheet, Rubber sheet
    Acceptable tool *4 Cutter, Ball-point pen
    Type of command MGL-IIC / MGL-Ic1
    Interface USB2.0、RS-232C、Ethernet
    Receiver buffer size 27 MB Standard (When sorting, 17 MB)
    Operational environment 5 - 35 degC (41 - 95 degF), 35 - 75 ％ (Rh), Non-condensation
    Power requirement AC 100 V - 240 V, 145 VA or less
    Dimensions（W×D×H） 1,030 × 430 × 335 mm
    (40.6 × 16.9 × 13.2")
    1,030 × 430 × 1,185 mm *5
    (40.6 × 16.9 × 46.7") *5    		 1,530 × 580 × 1,150 mm
    (60.2 × 22.8 × 45.3")    		 1,830 × 580 × 1,150 mm
    (72.0 × 22.8 × 45.3")
    Weight 24kg (52.9 lb.) 41kg (90.4 lb.) 46kg (101.4 lb.)
    Stand Optional equipment Standard equipment Standard equipment



    *1: Maximum sheet feeding length differs depending on the software.
    *2: Except for media expansion and contraction due to temperature.
    *3: Operated with Mimaki specified media, cutter and cutting conditions.
    Thickness of rubber and its cutting speed are limited. Guaranteed accuracy environment: Temperature 12 - 25 degC (53.6 - 77 degF), Humidity 45-65%
    *4: Our dedicated cutter blade and specified commercial ball-point pens are available. (Drawing quality of ball-point pen is not warranted)
    *5: When equipped with the optional stand (OPT-0231)

    • Specifications are subject to change without notice (for technical improvements, etc).
    • All trademarks or registered trademarks are the property of their respective owners.
