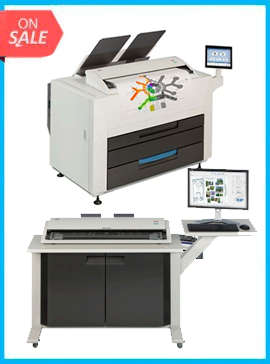

KIP 860 + KIP 720 SCANNER + 2 Years Warranty
- Regular price
-
$9,999.99 - Regular price
-
- Sale price
-
$9,999.99
Shipping calculated at checkout.
Couldn't load pickup availability
- 2 Roll Multi-Function System with Integrated Scanner
- 12” Smart System K Touchscreen
- Standard Front Stacking
- Optional Rear Stacking or KIPFold
- KIP System K Print Management Suite
- Windows and AutoCAD Drivers
- Workflow Automation
Specifications
| General | |
|---|---|
| 2/4 Roll Colour and Black & White Printer |
Colour and black & white printer with intelligent |
| 2/4 Roll Colour and Black & White Print/Copy/Scan | Colour and black & white printer with intelligent Print/Copy/Scan KIP System K touchscreen for Print/Copy and Scan functions |
| System Scanners | KIP 860: KIP 720 embedded |
| Stacking Systems (standard) | Front Stacking Print Tray |
| Description | High production colour and black & white wide format print/copy/scan |
| Type | LED Array Electro photography with organic photoconductor (OPC drum) Contact Development using non magnetic mono-component toner |
| Configurations | Printer or multi-function system (print/copy/scan) |
| Speed | Up to 268 sqm per hour in either black & white or colour regardless of image type or print resolution |
| Warm Up Time | Instant from standby, less than 6 minutes from power on |
| Toner | Four colour (CMYK), dry toner, print images are UV resistant and waterproof |
| Input Power | EU/UK: 220 – 240 V, 50/60 Hz, 20 A |
| Power Consumption | Ready: 0.6 kWh. Printing: 1.9 kWh, Warm Up: 3.4 kWh, Sleep Mode: 3 Wh |
| Acoustic Noise | < 65 db Printing |
| Ozone | < 0.05 ppm (average of 8 hours) |
| Dimensions (W x D x H) | KIP 860: 1500 x 1080 x 1155 mm |
| Weight | KIP 860: 510 kg |
| Printer | |
| Print resolution | 600 x 2,400 dpi |
| Paper capacity | 280 sqm ( 2 rolls + cut sheet ) 560 sqm ( 4 rolls + cut sheet ) |
| Output sizes width (roll media) | 297 mm – 914 mm |
| Output sizes length (roll media) | 210 mm minimum, 64 m maximum (actual length may be dependent on media type and file type limitations) |
| Paper weight (roll media) | Bond: 67 – 150 gsm, Film: 3 – 4 mil Double Matte Polyester, Tracing: 67 – 75 gsm Banner and Gloss: see KIP 800 Media Guide |
| Sheet Bypass | Up to 150 gsm bond / Maximum sheet size 914 mm x manageable length / Minimum sheet size A3 |
| Media types | Bond Paper: Economical Bond, Standard Bond. Specialty Bond paper: Presentation Bond, Heavy Weight Bond. Polyester Film: 3 mil Clear, 3 mil Double Matte, 4 mil White Opaque. Banner Media: Fusion Soft Polyester. Please see the KIP 800 Series Media Guide for details. |
| Scanner / Copier | |
| Resolution | 600 dpi (optical) |
| Original | Single Sheet, image viewable / face up |
| Widths | 210 mm – 914 mm (international standard page sizes to include ANSI, ARCH, ISO A & B, CHN, JPN) |
| Length | 210 mm – 6 m |
| Please see the KIP 2300 Scanner documentation for details on this optional scanner for the KIP 890 Colour System | |
| Controller | |
| Controller Type | System K Embedded, Windows Standard Embedded 7 – 64 bit, i5 Quad Cord (min) |
| Memory | 4 GB (min) |
| Compatible File Formats | Raster Colour: TIFF, JPG, JPG2000, PNG, BMP, GIF, TGA, RLE/RLC Vector Colour/B&W: HPGL, HPGL/2, HP-RTL, Postscript (PS/EPS), Adobe PDF, Autodesk DWF, Multipage PDF & DWF Raster B&W: TIFF Group 3 & 4, CALS Group 4, Grayscale TIFF Vector B&W: Calcomp 906/907 |
| Space, Electrical & Environmental Requirements | |
| Total Space (minimum) | 3350 x 2600 mm (W x D) 3350 x 5190 mm (W x D) (with optional rear print stacker) |
| Electrical Requirements | EU/UK: 220-240 V, 50/60 Hz, 16 A |
| Electrical Receptacle | Europe = CEE 7 UK = BS 546 All other regions = please refer to your local standards |
| Network Port | RJ-45 port-CAT5 or higher. LAN rated at least at 100 MB. Recommended is 1000 MB |
| Room Temperature | 10 – 30°C |
| Humidity | 15 – 80% RH |
| Site Survey | KIP 800 Colour Series site survey documentation is to be completed prior to system installation |
KIP 720 Scanner
KIP 720 Scanner includes Color Scan to File Keycode
