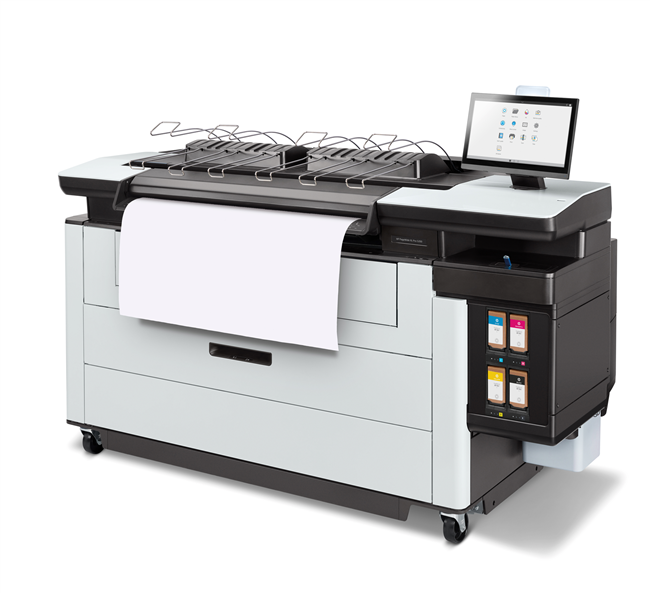

HP PageWide XL Pro 5200 40" Large-Format MFP Printer with Pro Stacker and 1-Year Warranty
- Regular price
-
$46,999.00 - Regular price
-
- Sale price
-
$46,999.00
Shipping calculated at checkout.
Couldn't load pickup availability
Tech Specs
Description
| Name | Value |
|---|---|
| OID | 2100116770 |
| Product Number | 4VW17A |
| Product Name | HP PageWide XL 5200 40-in Multifunction Printer |
| Product Line | GE |
| Acoustic Power Emissions (active, printing) | ≤7.8 B(A) (operating), ≤5.5 B(A) (idle), ≤3.5 B(A) (sleep) |
| Acoustic Pressure Emissions | ≤60 dB(A) (operating), ≤36 dB(A) (idle), ≤20 dB(A) (sleep) |
| Average Printhead Life | 32 L |
| Connectivity, Std | Gigabit Ethernet (1000Base-T), USB 2.0 host |
| Copyright Notice | © Copyright 2021 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
| Core Size (imperial) | 3 in |
| Core Size (metric) | 7.6 cm |
| Dynamic security | Dynamic security enabled printer |
| Electromagnetic Emission Standard | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KC) |
| Energy Star Certified | Yes |
| Environmental Certifications | ENERGY STAR, EPEAT Registered, UL 2801 ECOLOGO, CE marking (including RoHS, WEEE, REACH). In compliance with WW RoHS materials restriction requirements in China, Korea, India, Vietnam, Turkey, Serbia, and Ukraine |
| First Page Out | 20 sec (from USB) |
| Hard Disk | 1 x 128 GB SSD, 1 x 500 GB HDD, both self-encrypted with AES-256 |
| Imperial | 50 ft/min |
| Ink Types | Pigment-based (C, M, Y, K) |
| Interface | 15.6-inch (396-mm) TFT (LED blacklight) 16:9-format HD capacitive touchscreen |
| Line Accuracy | ±0.1%[1] |
| Linear Scan Speed (imperial) | Color: up to 6 in/sec; Grayscale: up to 10 in/sec |
| Linear Scan Speed (metric) | Color: up to 15.24 cm/sec; Grayscale: up to 25.4 cm/sec |
| Manufacturer Warranty | 90 days |
| Maximum Copy Length (imperial) | 374.5 in |
| Maximum Copy Length (metric) | 9.5 m |
| Maximum Scan Length (imperial) | 164 ft (PDF), 39 ft (TIFF), 26 ft (JPEG)[2] |
| Maximum Scan Length (metric) | 50 m (PDF), 12 m (TIFF), 8 m (JPEG)[2] |
| Media Sizes Standard (imperial Rolls) | 11 to 40 in |
| Media Thickness (by paper path) | Up to 15.7 mil |
| Media Thickness (imperial) | 0.01 in |
| Media Thickness (metric) | Up to 0.4 mm |
| Media Thickness Maximum (metric) | 0.26 mm |
| Media Types | Bond and recycled papers, poster papers, polypropylene, Tyvek papers, matte film |
| Media Weights Supported, By Paper Path (Imperial) | 19 to 53 lb |
| Media Weights Supported, By Paper Path (metric) | 70 to 200 g/m² |
| Media sizes standard (metric rolls) | 279 to 1016 mm |
| Metric | 15 m/min |
| Operating Humidity Range | 20 to 80% RH, depending on media type |
| Operating Temperature Range (celsius) | 5 to 40ºC |
| Operating Temperature Range (fahrenheit) | 41 to 104ºF |
| Package Dimensions (imperial) | 88.9 x 40.9 x 62.1 in |
| Package Dimensions (metric) | 2257 x 1040 x 1578 mm |
| Package Weight (imperial) | 1192 lb |
| Package Weight (metric) | 541 kg |
| Paper Handling Optional/output | Top stacker (up to 100-page capacity), high-capacity stacker (up to 500-page capacity), online folder |
| Paper Handling Standard/output | Basket |
| Power Consumption Description | 0.29 kW (typical); 0.9 kW (max printing); 100 W (ready); <18 W (sleep) |
| Power Supply Required | Input voltage (auto ranging) 100-127/200-240 V (±10%), 50/60 Hz (±3 Hz), 10/5 A |
| Print Cartridge Volume Delivered (metric) | AMS, China: 1 L; EMEA, APJ: 1 L (K), 500 ml (C, M, Y) APJ: 1 L (K), 500 ml (C, M, Y) |
| Print Cartridges, Number | 4 (C, M, Y, K) |
| Print Heads | 8 (C, M, Y, K) |
| Print Languages, Optional | Adobe PostScript 3, Adobe PDF 1.7 (with PostScript/PDF upgrade) |
| Print Languages, Standard | HP-GL/2, TIFF, JPEG |
| Print Resolution Color (best) | 1200 x 1200 dpi |
| Print Technology | HP PageWide Technology |
| Printer Description | Large-format color MFP or printer |
| Printhead Warranty | 10 L or 12 months |
| Printing Path | HP SmartStream software (optional), HP Click printing software, HP PageWide XL print drivers (PDF, HP-GL/2, and PCL3), Apple AirPrint |
| Processor Type | Intel Core i3 |
| Product Dimensions (imperial) | 77 x 30.9 x 55.7 in |
| Product Dimensions (metric) | 1955 x 785 x 1414 mm |
| Product Logos | Adobe PDF Print Engine; Adobe PostScript 3; Apple AirPrint; ColorPRO Technology; Energy Star; EPEAT green; Gold IPv6 Ready; Mac; UL 2801 ECOLOGO; Windows 10 Compatible |
| Product-specific Additional Information Pointer | http://www.hp.com/go/pagewidexl5200 |
| Recommended Media | HP Universal Bond Paper, 3-in Core (FSC® certified)[3] (recyclable)[4]; HP Production Matte Poster Paper, 3-in Core (FSC® certified)[3] (recyclable)[4]; HP Production Satin Poster Paper, 3-in Core (FSC® certified)[3] (recyclable)[4]; HP Universal Heavyweight Coated Paper, 3-in Core (FSC® certified)[3] (recyclable)[4]; HP Matte Polypropylene, 3-in Core |
| Remote Management Software | HP Partner Link, HP Embedded Web Server, HP Web Jetadmin, PrintOS |
| Roll External Diameter | Up to 177 mm |
| Roll External Diameter (imperial) | Up to 7 in |
| Roll Maximum Input | 2 rolls default with auto-switching, expandable to 4 rolls |
| Roll Media Maximum Output (imperial) | Up to 650 ft |
| Roll Media Maximum Output (metric) | Up to 200 m |
| Safety Approvals and Requirements | IEC 60950-1+A1+A2 and IEC 62368-1 2nd ed. compliant; USA and Canada (CSA listed); EU (LVD and EN 60950-1 and 62368-1 compliant); Russia, Belarus, and Kazakhstan (EAC); China (CCC) |
| Scan File Format | JPEG, TIFF, multi-TIFF, PDF, PDFA, multi-PDF, multi-PDFA (with PostScript/PDF upgrade) |
| Scan Input Modes | Printer storage, USB drive, network folder (SMB), My home folder, scan to email, scan to HP SmartStream software |
| Scan Resolution, Optical | 1200 dpi |
| Scan Size Maximum (flatbed, imperial) | Up to 36 in |
| Scan Size Maximum (flatbed, metric) | Up to 914 mm |
| Scan Type | 36-in (91-cm) CIS scanner |
| Scanner Advanced Features | Live preview, scan quicksets, smart background removal, black enhancement, automatic de-skew, reduce scan speed, post-edit settings (contrast, brightness, rotation, cropping and skew) |
| Standard Memory | 16 GB DDR4 |
| Subcategory (facet) | Large format |
| Supported Applications, Primary | Line drawings; Maps; Orthophotos; Posters |
| Taxonomy (facet) | Large Format Printers/ Plotters |
| Tech Spec Footnote 01 | [1] ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E printing material in Best or Normal mode with HP Matte Polypropylene and HP PageWide XL pigment ink. |
| Tech Spec Footnote 02 | [2] Scanned at 200 dpi. PDF scanning available on PostScript models only. |
| Tech Spec Footnote 03 | [3] BMG trademark license code FSC®-C115319, see http://www.fsc.org. HP trademark license code FSC®-C017543, see http://www.fsc.org. Not all FSC®-certified products are available in all regions. For information about HP large format printing materials, please visit http://www.HPLFMedia.com. |
| Tech Spec Footnote 04 | [4] Can be recycled through commonly available recycling programs. |
| Technical Documents (from roll) (imperial) | Up to 1100 ANSI D pages/hr, 20 ANSI D pages/min; Up to 603 ANSI E pages/hr, 11 ANSI E pages/min |
| Technical Documents (from roll) (metric) | Up to 1100 A1 pages/hr, 20 A1 pages/min; Up to 603 A0 pages/hr, 11 A0 pages/min |
| Theoretical Minimum Line Width (imperial) | 0.0008 in (HP-GL/2 addressable) |
| Theoretical Minimum Line Width (metric) | 0.02 mm (HP-GL/2 addressable) |
| UNSPSC Code | 43212104 |
| UPC Number | (ABG) 195122294267; (ACJ) 195122294274; (B19) 195122294281; (B1K) 195122294304; (BCD) 195122294328 |
| Warm-up Time | No warm up |
| Weight (imperial) | 908 lb |
| Weight (metric) | 412 kg |
