| OID |
2100116778 |
| Product Number |
4VW21A |
| Product Name |

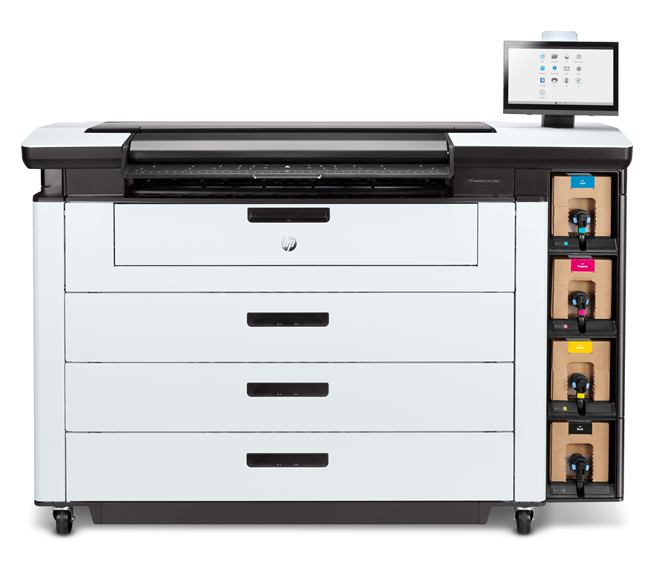

HP PageWide XL Pro 10000 40-in Printer |
| Product Line |
GE |
| Acoustic Power Emissions (active, printing) |
≤7.8 B(A) (operating), ≤5.8 B(A) (idle), ≤3.5 B(A) (sleep) |
| Acoustic Pressure Emissions |
≤60 dB(A) (operating), ≤38 dB(A) (idle), ≤20 dB(A) (sleep) |
| Average Printhead Life |
32 L |
| Connectivity, Std |
Gigabit Ethernet (1000Base-T), USB 2.0 host |
| Copyright Notice |
© Copyright 2021 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
| Core Size (imperial) |
3 in |
| Core Size (metric) |
7.6 cm |
| Dynamic security |
Dynamic security enabled printer |
| Electromagnetic Emission Standard |
Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KC) |
| Energy Star Certified |
Yes |
| Environmental Certifications |
ENERGY STAR, EPEAT Registered, UL 2801 ECOLOGO, CE marking (including RoHS, WEEE, REACH). In compliance with WW RoHS materials restriction requirements in China, Korea, India, Vietnam, Turkey, Serbia, and Ukraine |
| First Page Out |
18 sec (from roll and USB), 50 sec (from input tray and USB) |
| Hard Disk |
1 x 128 GB SSD, 1 x 500 GB HDD, both self-encrypted with AES-256 |
| Imperial |
75 ft/min |
| Ink Types |
Pigment-based (C, M, Y, K) |
| Interface |
15.6-inch (396-mm) TFT (LED blacklight) 16:9-format HD capacitive touchscreen |
| Manufacturer Warranty |
90 days |
| Media Sizes Custom (imperial) |
11.7 to 40.2 in (width), 17.7[1] to 30.1[2] in (length) |
| Media Sizes Custom (metric) |
297 to 1020 mm (width), 450[1] to 765[2] mm (length) |
| Media Sizes Standard (imperial Rolls) |
11 to 40 in |
| Media Thickness (by paper path) |
Up to 15.7 mil (roll); up to 3/8 in (sheet/board) |
| Media Thickness (metric) |
Up to 0.4 mm (roll); up to 10 mm (sheet/board) |
| Media Types |
Bond and recycled papers, poster papers, polypropylene, Tyvek papers, matte film |
| Media Weights Supported, By Paper Path (Imperial) |
19 to 53 lb (roll); 0.032 to 1.83 lb (sheet/board) |
| Media Weights Supported, By Paper Path (metric) |
70 to 200 g/m² (roll); 80 to 1050 g/m² (sheet/board) |
| Media sizes standard (metric rolls) |
279 to 1016 mm |
| Metric |
23 m/min |
| Operating Humidity Range |
20 to 80% RH, depending on media type |
| Operating Temperature Range (celsius) |
5 to 40ºC |
| Operating Temperature Range (fahrenheit) |
41 to 104ºF |
| Package Dimensions (imperial) |
88.9 x 40.9 x 62.8 in |
| Package Dimensions (metric) |
2257 x 1040 x 1595 mm |
| Package Weight (imperial) |
1444 lb |
| Package Weight (metric) |
655 kg |
| Paper Handling Optional/input |
Pro sheet feeder |
| Paper Handling Optional/output |
Pro stacker (500-page capacity) |
| Paper Handling Standard/input |
Roll, input tray |
| Paper Handling Standard/output |
Basket |
| Poster Full Coverage (from input tray) (imperial) |
Up to 1100 ft²/hr, 3 ISO B1 pages/min |
| Poster Full Coverage (from input tray) (metric) |
Up to 100 m²/hr, 3 B1 pages/min |
| Poster Full Coverage (from roll) (imperial) |
Fast: Up to 7500 ft²/hr, 1000 ISO B1 pages/hr, 24 ISO B1 pages/min; Normal: Up to 4300 ft²/hr; Best: Up to 3200 ft²/hr |
| Poster Full Coverage (from roll) (metric) |
Fast: Up to 700 m²/hr, 1000 B1 pages/hr, 24 B1 pages/min; Normal: Up to 400 m²/hr; Best: Up to 300 m²/hr |
| Power Consumption Description |
0.37 kW (typical); 1.2 kW (max printing); 120 W (ready); <16 W (sleep) |
| Power Supply Required |
Input voltage (auto ranging) 200-240 V (±10%), 50/60 Hz (±3 Hz), 8 A |
| Print Cartridge Volume Delivered (metric) |
5 L |
| Print Cartridges, Number |
4 (C, M, Y, K) |
| Print Heads |
8 (C, M, Y, K) |
| Print Languages, Optional |
Adobe PostScript 3, Adobe PDF 1.7 (with PostScript/PDF upgrade) |
| Print Languages, Standard |
HP-GL/2, TIFF, JPEG |
| Print Resolution Color (best) |
1200 x 1200 dpi |
| Print Technology |
HP PageWide Technology |
| Printer Description |
Large-format color printer |
| Printhead Warranty |
16 L or 12 months |
| Printing Path |
HP SmartStream software (optional), HP PageWide XL print drivers (PDF, HP-GL/2, and PCL3) |
| Processor Type |
Intel Core i5 |
| Product Dimensions (imperial) |
77 x 30.9 x 64.4 in |
| Product Dimensions (metric) |
1955 x 785 x 1637 mm |
| Product Logos |
Adobe PDF Print Engine; Adobe PostScript 3; ColorPRO Technology; Energy Star; EPEAT green; Gold IPv6 Ready; Mac; UL 2801 ECOLOGO; Windows 10 Compatible |
| Product-specific Additional Information Pointer |
http://www.hp.com/go/pagewidexlpro10000 |
| Recommended Media |
HP Universal Bond Paper, 3-in Core (FSC® certified)[4] (recyclable)[5]; HP Production Matte Poster Paper, 3-in Core (FSC® certified)[4] (recyclable)[5]; HP Production Satin Poster Paper, 3-in Core (FSC® certified)[4] (recyclable)[5]; HP Universal Heavyweight Coated Paper, 3-in Core (FSC® certified)[4] (recyclable)[5]; HP Matte Polypropylene, 3-in Core |
| Remote Management Software |
HP Partner Link, HP Embedded Web Server, HP Web Jetadmin, PrintOS |
| Roll External Diameter |
Up to 177 mm |
| Roll External Diameter (imperial) |
Up to 7 in |
| Roll Maximum Input |
2 rolls default with auto-switching, expandable to 6 rolls |
| Roll Media Maximum Output (imperial) |
Up to 650 ft |
| Roll Media Maximum Output (metric) |
Up to 200 m |
| Safety Approvals and Requirements |
IEC 60950-1+A1+A2 and IEC 62368-1 2nd ed. compliant; USA and Canada (CSA listed); EU (LVD and EN 60950-1 and 62368-1 compliant); Russia, Belarus, and Kazakhstan (EAC); China (CCC) |
| Standard Media Sizes Supported (imperial) |
Arch B[3], C, D, E, ANSI B[3], C, D, ISO B2, B1 |
| Standard Media Sizes Supported (metric) |
SRA3[3], A2, A1, B2, B1 |
| Standard Memory |
16 GB DDR4 |
| Subcategory (facet) |
Large format |
| Supported Applications, Primary |
Posters; Double-sided posters; Presentation boards; Wrapping paper |
| Taxonomy (facet) |
Large Format Printers/ Plotters |
| Tech Spec Footnote 01 |
[1] 420 mm (16.5 in) supported only in boards. |
| Tech Spec Footnote 02 |
[2] Longer lengths may be supported depending on the accessories installed. |
| Tech Spec Footnote 03 |
[3] A3 (Arch B and ANSI B) supported only in boards. |
| Tech Spec Footnote 04 |
[4] BMG trademark license code FSC®-C115319, see http://www.fsc.org. HP trademark license code FSC®-C017543, see http://www.fsc.org. Not all FSC®-certified products are available in all regions. For information about HP large format printing materials, please visit http://www.HPLFMedia.com. |
| Tech Spec Footnote 05 |
[5] Can be recycled through commonly available recycling programs. |
| UNSPSC Code |
43212104 |
| UPC Number |
(ABG) 195122610425; (ACJ) 195122610432; (B19) 195122610449; (B1K) 195122610456; (BCD) 195122610463 |
| Warm-up Time |
No warm up |
| Weight (imperial) |
1162 lb |
| Weight (metric) |
527 kg |
