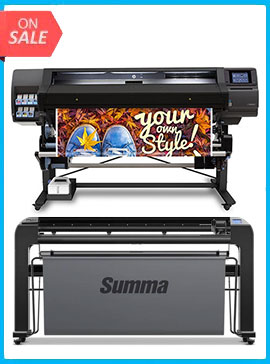

BUNDLE - HP Latex 560 64" Printer - Refurbished (1 Year Warranty) + Summa Class S2 T160 62" Cutter w/ Service - New
* Refurbished printers doesn't come with starter supplies, those are sold separately
This bundle includes:
- HP Latex 560 Printer 64" Wide Format - Refurbished (1 Year Warranty)
- Summa Class S2 T160 62" Cutter w/ Service - New
Description
Higher Productivity for Growing Businesses:
Manage a variety of print jobs and peaks in production at a low upfront investment. New features include:
- Load rolls in one minute or less with the spindleless pivot table and automatic skew adjustment
- Respond fast with quality—up to 23 m2 /hr (248 ft2 /hr) indoor quality mode
- Cut risk, eliminate delays—prints are dry and scratch resistant immediately after printing
- Easily produce high-quality double-sided banners—automation enables efficiency and speed
- Produce highly saturated prints with up to 50% more ink density using vivid print modes
- Consistent, day-one image quality over time—native 1200 dpi, user-changeable printheads, auto nozzle replacement
- Run unattended. Heavy-duty roll handling of rolls up to 121 lbs
- Status beacon for real-time production monitoring from a distance
- New wiper roller accessory for high-quality results on low cost banners and self-adhesive vinyl
- Easy integration into a larger HP Latex fleet with color emulation capabilities
Spread the Cost with Bulk Production:
- Get the high-quality results of high-cost materials on lower cost banners and vinyls with the wiper roller
- Cut 2 to 3 hours/month maintenance — automatic maintenance, OMAS media calibration save operator time
- Plan production in advance, optimize supplies usage, and save time—utilities predict how much ink is needed
The Latex Advantage:
- Latex prints have outdoor durability up to 5 years laminated, 3 years unlaminated
- Keep day-one image quality by replacing the printheads yourself in a few minutes, without a service call
- Prints are completely cured and dry inside the printer, and ready for immediate finishing and delivery
Advanced Features:
HP Optical Media Advance Sensor (OMAS)
- Precise and accurate motion control of media advance between print swaths
- Controls registration automatically including double-sided prints with automated registration across sides
HP Custom Substrate Profiling
- Simplified color management, directly from the front panel, 8-inch touchscreen
- Pre-installed generic and HP substrate online profile library
Spectrophotometer
- Create custom ICC profiles with the i1embedded spectrophotometer
- i1 embedded spectrophotomer enables automatic calibration
- Color emulation workflow
What's in the Box?
HP Latex 560 Printer, printheads, maintenance cartridge, ink collector, 775ml ink cartridges, output platen protector, printer stand, roll lifter, take-up reel, loading accessory, user maintenance kit, edge holders, quick reference guide, setup poster, documentation software, power cords.
SUMMA TANGENTIAL S2 T160 62" VINYL CUTTER
FIND EXCELLENCE IN TANGENTIAL CUTTING
The vinyl cutters of the T Series are part of Summa's top-level S Class 2 range. The T Series combines the precision of a flatbed cutter with the ease and speed of a roll-fed cutter. All of this by using our legendary True Tangential cutting head. The T Series simply cuts with more force and accuracy than any cutter in its class.
CUTTING TECHNOLOGY
Nowadays, information about cutting technology in cutting plotters is everywhere around us. It reaches us through professional trade magazines, brochures, social media or simply through word of mouth marketing. And perhaps a little bird might have told you about drag knife or tangential knife technology. But despite the overload of information from the above-mentioned channels, what exactly are these cutting technologies all about?
HOW DOES DRAG KNIFE TECHNOLOGY WORK?
The most frequently used cutting technology for plotters is the drag knife or swivel knife technology. To explain what it is and how it works I generally use the tractor plough as an analogy.
The first factor they have in common is that both tools, drag knife and plough, are being ‘dragged’ through their substrate. For the plough, this will be earth or dirt while for the drag knife this will be vinyl or foil.
The second factor they have in common is that both tools are controlled by external elements. For the plough, it will be the tractor, which makes a movement by literally ‘pulling’ the plough to orientate itself in the correct direction. For the drag knife, it will be a combination of the cutting head movement and the media movement. Both movements enable the knife facing in the right direction because the knife itself can rotate freely in the knife holder.
CUTTING TECHNOLOGY
Nowadays, information about cutting technology in cutting plotters is everywhere around us. It reaches us through professional trade magazines, brochures, social media or simply through word of mouth marketing. And perhaps a little bird might have told you about drag knife or tangential knife technology. But despite the overload of information from the above-mentioned channels, what exactly are these cutting technologies all about?
HOW DOES DRAG KNIFE TECHNOLOGY WORK?
The most frequently used cutting technology for plotters is the drag knife or swivel knife technology. To explain what it is and how it works I generally use the tractor plough as an analogy.
The first factor they have in common is that both tools, drag knife and plough, are being ‘dragged’ through their substrate. For the plough, this will be earth or dirt while for the drag knife this will be vinyl or foil.
The second factor they have in common is that both tools are controlled by external elements. For the plough, it will be the tractor, which makes a movement by literally ‘pulling’ the plough to orientate itself in the correct direction. For the drag knife, it will be a combination of the cutting head movement and the media movement. Both movements enable the knife facing in the right direction because the knife itself can rotate freely in the knife holder.
WHAT ARE THE ADVANTAGES?
While the drag knife technology has its limitations, it is still a powerful and widely used technology. That is why the SummaCut Series is one of the most popular series of vinyl cutters ever built. It offers powerful technology with a high-speed cutting head, legendary tracking and an optical positioning system at a very affordable price. Discover how you can have reliable and effortless vinyl cutting at a wallet-friendly rate with the SummaCut Series.
HOW DOES THE TANGENTIAL KNIFE TECHNOLOGY WORK?
In response to the limits of the drag knife technology and the user’s specific needs, Summa has developed the tangential knife technology. Instead of a freely rotating knife, the tangential knife will be controlled by a motor. This external motor will literally position the knife in the correct angle. Whereas the drag knife remains in the media all the time during cutting, this tangential technology will lift the knife up from the media, rotate it and lower it back into the media.
HOW DOES THE TANGENTIAL KNIFE RESPOND TO MEDIA?
The result of using the tangential knife technology will be perfectly shaped cut corners in thin media, but also in thick, rigid media. For there are no drag forces that will influence the knife’s trajectory. The tangential technology allows for much higher cutting pressures and enables you to use longer knives compared to the drag knife technology. As a result, the user will be able to cut thicker and harder substrates with the same detail and quality as if it would be cut in thin substrates. This technology is generally found on flatbed cutting machines, used to cut thick substrates. To achieve a high-quality cut in applications such as floor graphics, vehicle graphics, textile, sandblast, road and safety signs, and many more, we highly recommend using a cutting machine with the tangential knife technology.
SUMMA AND THE TANGENTIAL KNIFE TECHNOLOGY
And although bragging is not an attractive quality, honesty, for that matter, is! There is only one manufacturer that can develop cutting heads, with this remarkable True Tangential cutting technology: Summa with its S Class 2 T (Tangential) Series! Furthermore, these highly-engineered tangential cutting heads are small and light enough to fit on a roll plotter. The S Class 2 vinyl and contour cutters provide you with unrivalled, tangential technology and unmatched die-cutting precision as no other in its class.
The only other cutting device you will find with this high-end tangential technology are flatbed cutting machines. With a flatbed cutting machine, there will be no restriction in size or in weight of the cutting head. (If you are interested in a versatile flatbed cutting machine, Summa offers these in variable sizes.
WHAT ARE THE ADVANTAGES?
One of the many advantages the Summa knife technology offers is its accurate depth control. Many people think tangential cutting technology is only useful for processing thick substrates. However, the way Summa implemented this technology on their cutting plotters allows for the operator to set the cutting depth as accurately as the thickness of a human hair.
Another advantage of this technology is how easy it is to weed out the vinyl parts. As every corner is perfectly shaped and cut by means of an overcut feature, peeling away the excess material will be done in a breeze. Even cutting meticulous details in thickly laminated media becomes a child’s play.
Last but not least, I’d like to point out that perforating material and creating tear-off lines, using Summa’s FlexCut feature, is so reliable on a tangential machine, you can safely add this to your jobs, as well. While doing so, restrictions are limited to a bare, non-noticeable minimum and possibilities are as high as your imagination can take you! Taken into account all these benefits, tangential cutter users will all say the same thing: “Don’t hesitate and put all your trust into a tangential cutter. There’s nothing like it! You’ll never regret the choice!”
Make a choice you won’t regret.
