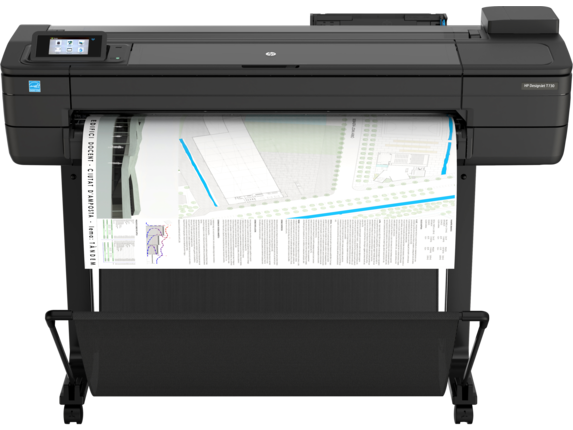

HP DesignJet T730 36" Large-Format Wireless Plotter Printer with Security Features (F9A29D)

Technical specifications

Print

Print speed 25 sec/page on D, 82 D prints per hour
Print resolution Up to 2400 x 1200 optimized dpi
Technology HP Thermal Inkjet
Margins Roll: 0.2 x 0.2 x 0.2 x 0.2 in (5 x 5 x 5 x 5 mm)
Sheet: 0.2 x 0.2 x 0.2 x 0.2 in (5 x 5 x 5 x 5 mm)
Ink types Dye-based (C, M, Y); pigment-based (mK)
Ink drop 6 pl (C, M, Y); 12.6 pl (mK)
Printheads 1 (C, M, Y, mK)
Printhead nozzles 1376
Line accuracy ±0.1%
Minimum line width 0.0008 in (0.02 mm) HP-GL/2 addressable
Max optical density 8 L* min/2.10 D

Media

Handling Sheet feed, roll feed, input tray, media bin, automatic horizontal cutter
Roll size 11 to 36 in (279 to 914 mm)
Sheet size Input tray: 8.3 x 11 to 13 x 19 in (210 x 279 to 330 x 482 mm)
Manual feed: 13 x 19 to 36 x 74.7 in (330 x 482 to 914 x 1897 mm)
Standard sheets Input tray: A, B
Manual feed: C, D, E
Grammage 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (input tray)
Thickness Up to 11.8 mil

Applications

Line drawings; Renderings; Presentations
Memory 1 GB
Hard disk None

Connectivity

Interfaces Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n
Native print languages HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, URF
Printing paths Wi-Fi Direct to enable mobile printing via HP ePrint, Apple AirPrint and HP Smart app for Android and iOS devices, Windows and
macOS printer drivers, printing support for Chrome OS, print from USB pen drive
Drivers HP-GL/2, HP-RTL drivers for Windows
Raster driver for macOS and Windows

Dimensions (W x D x H)

Printer 55.2 x 23.4 x 45.5 in (1403 x 605 x 1155 mm)
Shipping 62.5 x 22.6 x 25.4 in (1578 x 575 x 646 mm)

Weight

Printer 96.3 lb (43.7 kg)
Shipping 144.8 lb (65.7 kg)

HP Software and Solutions

HP Click, HP Smart app, HP Support Assistant, HP Print Preview for Windows, HP DesignJet Utility for macOS and Windows

Environmental Ranges

Operating temperature 41 to 104ºF (5 to 40ºC)
Operating humidity 20 to 80% RH
Storage temperature -13 to 131ºF (-25 to 55ºC)

Acoustics

Sound pressure 48 dB(A) (operating), <16 dB(A) (idle)
Sound power 6.5 B(A) (operating), <3.4 B(A) (idle)

Power

Consumption 35 watts (printing), 3.5 watts (sleep), 0.2 watts (standby)
Requirements Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1.2 A max

Certification

Safety USA and Canada (CSA certified)
Electromagnetic Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES)
Environmental ENERGY STAR, EPEAT Silver, CE marking

More Information

36-inch, robust and compact Wi-Fi printer for CAD and general-purpose applications

Robust, compact, and professional—this printer fits your business and gives you space to work. The DesignJet T730 Printer produces prints up to 3 times faster than previous HP models—see A1/D-size with prints delivered in 25 seconds. Users can choose between 40- to 300-ml HP ink cartridges to fit your print volume, large supplies can reduce interventions. The T730 has an easy to use interface on the front panel and users have no need for a LAN with the printers wireless capabilities.

A smart investment for architects, engineers, and construction professionals, this robust, compact 36-inch printer easily fits your business. You can reduce time/waste with convenient features. Print conveniently on-the-go with HP Mobile Printing.

AEC, GIS, and MCAD professionals who want to print maps, technical drawings, posters, and renders with precise, accurate line quality and crisp text

FCC Class A emissions device for use in commercial environments, not residential environments

Dynamic security enabled printer. Only intended to be used with cartridges using an HP original chip. Cartridges using a non-HP chip may not work, and those that work today may not work in the future.
