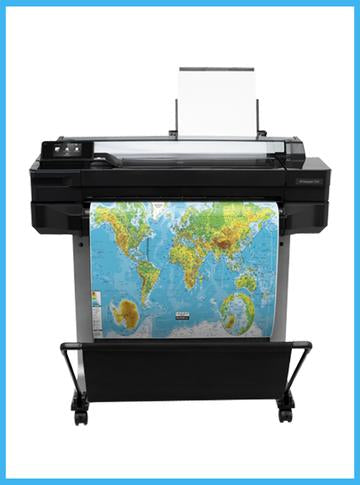

HP Designjet T520 24-in ePrinter - New
This printer is no longer available as new. Please order the replacement:
HP DesignJet T630 Large Format Wireless Plotter Printer - 24", with Mobile Printing (5HB09A)
Product specifications
HP Data Sheet View Document Functions Print Mechanical print time, b&w line drawing, draft mode, plain 70 D prints per hour Mechanical print time, line drawing, economode, plain 70 D prints per hour Resolution (black) Up to 2400 x 1200 optimized dpi from 1200 x 1200 input dpi and Optimization For Photo Paper selected Resolution (color) Up to 2400 x 1200 optimized dpi Print Technology HP Thermal Inkjet Number of print cartridges 4 (cyan, magenta, yellow, black) Compatible ink types Dye-based (C, M, Y); pigment-based (K) Print languages HP-GL/2, HP-RTL, HP PCL 3 GUI, JPEG, CALS G4 Connectivity, standard Fast Ethernet (100Base-T); Hi-Speed USB 2.0 certified; Wi-Fi Connectivity, optional Compatible HP Jetdirect print servers Network ready Standard Minimum system requirements Mac OS X v 10.6: Mac computer with Intel® Core™ Processor; 1 GB RAM; 2 GB available hard disk space Microsoft® Windows® 7: 32-bit (x86) or 64-bit (x64) processor (1 GHz); 1 GB RAM (32-bit) or 2 GB RAM (64-bit); 1 GB available hard disk space; Windows Vista® Ultimate/Business/Home Premium: 32-bit (x86) or 64-bit (x64) processor (1 GHz); 1 GB RAM; 1 GB available hard disk space; Windows® XP Professional/Home (SP3 or higher): Intel® Pentium® family or AMD K6™/Athlon™/Duron™ family (1 GHz); 512 MB RAM; 1 GB available hard disk space Compatible operating systems Microsoft Windows 7 Ultimate/Professional/Home Premium, Windows Vista Ultimate/Business/Home Premium, Windows XP (32-bit, 64-bit) Professional/Home, Windows Server 2008 (32-bit, 64-bit), Windows Server 2008 R2, Windows Server 2003 (32-bit, 64-bit); Mac OS X v 10.6, v 10.7, v 10.8; Citrix XenApp; Citrix XenServer Memory, standard 1 GB Memory, maximum 1 GB Print speed, color (draft) Mechanical printing time. Hard disk None Non-printable area (cut-sheet) 0.2 x 0.67 x 0.2 x 0.2 in Guaranteed minimum line width 0.0028 in (ISO/IEC 13660:2001(E)) Line accuracy +/- 0.1% Maximum optical density (black) 8 L* min/2.10 D Finished output handling Sheet feed; roll feed; input tray; media bin; automatic cutter Media sizes supported Input tray: A4, A3; manual feed: A2, A1 Media sizes, custom Input tray: 8.3 x 11 to 13 x 19 in; manual feed: 13 x 19 to 24 x 74.7 in; roll: 11 to 24 in Media types Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene) Media sizes, standard 8.3 to 24-in wide sheets; 11 to 24-in rolls Roll maximum output 150 ft Roll external diameter 3.9 in Media thickness Up to 11.8 mil Power Input voltage (auto ranging): 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 1200 mA max Power consumption < 35 watts (printing), < 4.5 watts (sleep), < 0.3 watts (standby) Operating temperature range 41 to 104ºF Dimensions (W X D X H) 38.9 x 20.9 x 36.7 in Weight 75 lb Package weight 110.2 lb What's in the box HP Designjet T520 ePrinter; printhead; introductory ink cartridges; printer stand; spindle; quick reference guide; setup poster; startup software; power cord Warranty One-year limited hardware warranty Software included HP Designjet Utility for Mac and Windows, HP Designjet ePrint & Share for Windows Mechanical print time, US D color image, best mode, glossy 16.3 min/page Mechanical print time, US D color image, normal mode, glossy 9.3 min/page Mechanical print time, US D color image, draft mode, coated 1.3 min/page Mechanical print time, US D color image, normal mode, coated 4.1 min/page Mechanical print time, color line drawing, draft mode, plain 35 sec/page US D color line drawings/hr, draft mode, plain 70 D prints per hour
