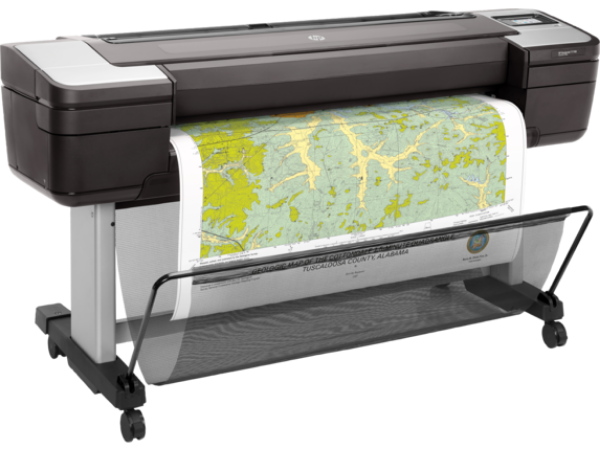

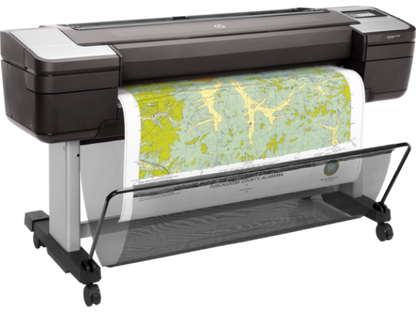

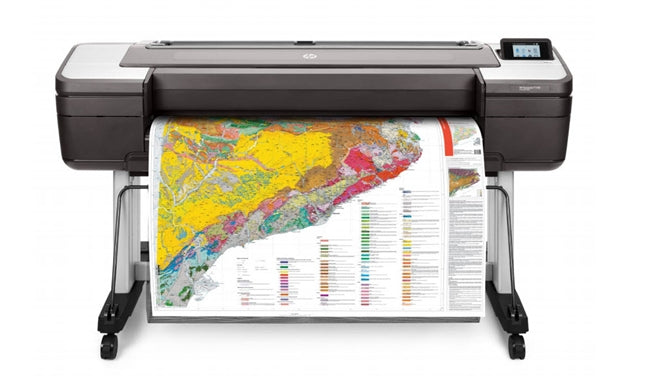

HP DesignJet T1700 44" Large-Format Inkjet Printer (Single Roll) - New

Description

Secure, Empowering Printer for CAD/GIS Workgroups

Confidently take CAD, GIS color reproduction to the next level with a 44-in HP DesignJet printer that delivers powerful security features, high productivity on even the most complex files, and bright and precise colors. Dynamic security: Cartridges with non-HP chips might not work today or in the future.

• Advanced Security Features
• Adobe PDF Print Engine
• 6HP Bright Office Inks

• Protect printers/data from unauthorized access with HP Secure Boot, whitelisting, encrypted hard disk
• Protect documents, preserve confidentiality with authentication solutions like PIN printing, card readers
• Secure your printers with HP JetAdvantage Security Manager; manage your fleet remotely with HP Web Jetadmin
• Control and optimize printing costs with accounting solutions - or with your reseller through HP Partner Link

• Adobe PDF drivers free up your computer immediately after sending to print - even for the most complex files
• No interruptions - dual-roll options reduce roll changes; two rolls double capacity, help switch paper types
• Handle complex files - powerful processing architecture, 128 GB memory, 500 GB HDD at 116 A1/D pgs/hr.
• Easily print project sets and PDF documents with HP Click printing software

• Get bright color and bold image quality - even on plain papers - with HP Bright Office Inks
• Reproduce transparencies, layers, color palettes, and gradients with embedded Adobe PDF Print Engine
• Tuned profiles reproduce distinct shades of color; color/gray/photo black inks make soft colors, dark tones
• Accurately display data - high-density printheads provide 2400 nozzles per inch, enabling 0.1% line accuracy

Specifications

Print

Print speed 116 D/hr, 26 sec/D
Print resolution Up to 2400 x 1200 optimized dpi
Technology HP Thermal Inkjet
Margins Roll: 0.12 x 0.12 x 0.12 x 0.12 in
Sheet: 0.12 x 0.67 x 0.12 x 0.12 in
Ink types Dye-based (C, M, Y, PK, G); pigment-based (MK)
Ink drop 6 pl
Printheads 3 universal printheads, 2 colors each
Printhead nozzles 2112 each color
Line accuracy ±0.1%
Minimum line width 0.0008 in (PDF addressable @ 1200 dpi)
Max optical density 2.15 maximum black optical density (6 L*min)

Media

Handling Single-roll: Sheet feed, roll feed, automatic horizontal cutter
Dual-roll: Sheet feed, two automatic roll feeds, automatic roll-switching, media bin, automatic horizontal cutter
Roll size 11 to 44-in
Sheet size 8.3 x 11 to 44 x 66 in
Standard sheets A, B, C, D, E
Grammage 60 to 328 g/m²
Thickness Up to 31.5 mil

Applications

Line drawings; Maps; Orthophotos; Presentations; Renderings
Memory 128 GB (virtual)
Hard disk 500 GB self-encrypting

Connectivity

Interfaces Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab); USB Type-A host port
Native print languages PostScript Printer: Adobe PostScript 3, Adobe PDF 1.7 ext 3, HP-GL/2, TIFF, JPEG, URF, CALS G4
Non-PostScript Printer: HP-GL/2, TIFF, JPEG, URF, CALS G4
Print languages (optional) Non-PostScript Printer: Adobe PostScript 3, Adobe PDF 1.7 ext 3
Printing paths Direct printing from USB flash drive, email printing, HP driver for Windows, HP Print Service for Android, Apple AirPrint for MacOS
and for iOS, HP Print for Chrome OS, HP Click, HP Smart App for iOS and Android
Drivers PostScript Printer: Raster, PostScript and PDF drivers for Windows and macOS
Non-PostScript Printer: Raster drivers for Windows and macOS

Security Features

HP Secure Boot, Whitelisting, Role Based Access Control, SNMPv3, HTTPS, Secure-IPP, IPsec/Firewall, Certificates management,
802.1X, TLS 1.0/1.1/1.2, HP Web Jetadmin compatible, HP JetAdvantage Security Manager compatible, Secure Disk erase (DoD
5220.22-M), Secure File erase, self-encrypting HDD, PIN printing

Dimensions (W x D x H)

Printer 70.9 x 27.4 x 39.3 in
Shipping 77 x 30.3 x 28 in

Weight

Printer Single-roll: 159 lb, dual-roll: 163 lb
Shipping Single-roll: 278 lb, dual-roll: 282 lb

HP Software and Solutions

HP Click, HP Utility for Mac and Windows, HP WebJet Admin, HP Embedded Web Server, HP JetAdvantage Security Manager, HP
Partner Link, HP MPS

Environmental Ranges

Operating temperature 41 to 104ºF
Operating humidity 20 to 80% RH
Storage temperature -13 to 131ºF

Acoustics

Sound pressure 45 dB(A) (operating), 32 dB(A) (idle), <15 dB(A) (sleep)
Sound power 6.1 B(A) (operating), 5.0 B(A) (idle), <3.1 B(A) (sleep)

Power

Consumption < 100 W (printing); < 24 W (ready); < 0.3 W (< 6.5 W with embedded Digital Front End) (sleep); 0.1 W (off)
Requirements Input voltage (auto ranging) 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max
