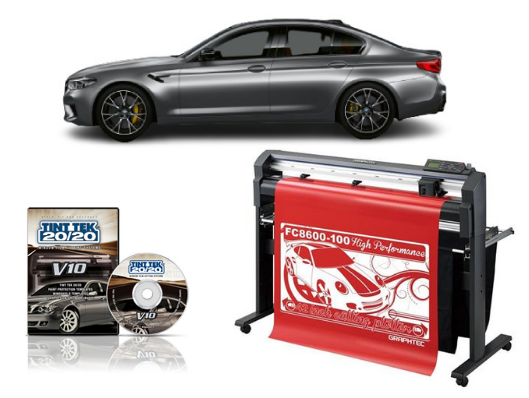

42" Graphtec FC8600-100 High Performance Vinyl Cutting Plotter - Refurbished (90 Days, 1, 2, 3 or 4 Years Warranty) + Tint Tek 20/20 Window Film Cutting Software V10 - 1 Year Subscription
This Package includes:
- 42” Graphtec FC8600-100 High Performance Vinyl Cutting Plotter - Refurbished (90 Days, 1, 2, 3 or 4 Years Warranty)
- Tint Tek 20/20 Window Film Cutting Software V10 - 1 Year Subscription
Description:
The FC8600 series high performance cutting plotter is an industry leader for sign makers, graphic artists, automotive aftermarket professionals, countertop installers and other related users. The FC8600 series features a maximum cutting speed of 58.5 in/sec, 4.0G maximum acceleration, and 20 to 600g selectable cutting forces, allowing users to process diamond grade, high-intensity reflective film, sandblast resist rubber, automotive window & paint protection films, self-adhesive vinyl, Amberlith™ and Rubylith™ , among other media types.
Features:
• 3 inch wide user-friendly LCD control Panel, a Dual configuration function (two-user set and save customized conditions), included Ethernet capability (run multiple machines from one location), and an option for additional push rollers with 3 tension settings and the new 5th Generation ARMS system (automatically detects registration marks with color variants).
• Graphtec’s next generation ARMS system adjusts for several types of potential print distortions, allowing for accurate contour cutting of pre-printed images and decals.
New Features of the New ARMS
• Optical Sensor for Auto Alignment
• Sensitivity adjustment for registration mark detection on various media and colors.
PERF CUT ENABLED high performance cutters finish the job!
• With its included perf cut enabled custom tool settings—you have the ability to perforate cut all the way through your pre printed vinyl media for pop-out full-color stickers and decals without damaging your blade or cutting plotter machine.
• New manufacturing technologies, along with the latest engineering advancements, have allowed Graphtec to make an unprecedented move forward in the industry. High performance features have been added to the new series yet its competitive pricing remains.
• With the world’s fastest throughput performance and superb accuracy, the new FC8600 series accommodates the most demanding cutting and plotting projects and provides users with the versatility needed for a wide variety of applications.
Price Includes:
Floor stands, media roll rack, media catch basket, Graphtec Studio standalone software, and also includes Cutting Master 3 plug-in software for Adobe Illustrator and CorelDraw.
• Perf Cut Through Vinyl Media
• Cut Window Tint Film
• Cut Paint Protection Film
• Cut Etching and Sandblast Resist Stencils
• Cut High-Intensity Reflective
• Cut Diamond Grade Media
|
Specifications
|
||
|
Model
|
CPM-FC8600-100
|
|
|
CPU
|
32-Bit
|
|
|
Configuration
|
Digital Servo Friction feed with MicroGritroll™ drive
|
|
|
Contour Cutting
|
Automatic
|
|
|
Class
|
Pro Vinyl Cutters
|
|
|
Intended Use
|
Professional
|
|
|
Max. cut width |
1067 mm (42 in)
|
|
|
Max Cutting Length |
15,240mm (600 in)
|
|
|
Mountable media
|
Max. width
|
1224 mm (48.2 in)
|
|
Min. width
|
50 mm (2 in)
|
|
|
Max. cross cut area
|
1191 mm (46.9 in)
|
|
|
Max. cutting speed (Axial)
|
1485 mm / sec (58.5 in/s) at a 45° angle
|
|
|
Max. axial acceleration
|
4.0 G (39.2 m/s2)
|
|
|
Cutting pressure
|
20 g to 600 g (0.196 N to 5.88 N) in 48 steps
|
|
|
Min. character size*1
|
3 mm (0.125 in) alphanumeric Helvetica med. Font
|
|
|
Mechanical resolution
|
0.005 mm (0.0002 in)
|
|
|
Programmable resolution
|
GP-GL : 0.1 / 0.05 / 0.025 / 0.01 mm , HP-GL™ : 0.025 mm
|
|
|
Repeatability*2
|
Max. 0.1 mm / 2 m (0.0039 in / 80in)
|
|
|
Tools
|
Accepts (1) cutting blade, (1) plotting pen, or (1) pouncing tool ; Second penholder (optional)
|
|
|
Motor Type
|
Servo
|
|
|
Blade types
|
Supersteel (0.9 mm or 1.5 mm), Sapphire(1.5 mm)
|
|
|
Pen types
|
Water-based fiber-tip, oil-based ballpoint, and disposable ink pens
|
|
|
Pouncing tool type
|
Requires optional pouncing tool : (PPA33-TP12, 1.2-mm pin diameter)
|
|
|
Media types
|
Self-adhesive vinyl film, diamond grade, fluorescent film, reflective film, AmberlithTM , RubylithTM , window film, high-intensity reflective film*3 , paint protection film, up to 0.25 mm tick , sandblast resist rubber up to 1 mm thick, etc.
|
|
|
Compatible paper for pouncing
|
Regular paper from 0.06 to 0.13 mm thick
|
|
|
Standard interfaces
|
RS-232C / USB2.0 (Full speed), Ethernet
|
|
|
Buffer memory
|
2 MB
|
|
|
Command sets
|
GP-GL / HP-GLTM*4
|
|
|
LCD display Graphic type
|
3 inches LCD backlight type
|
|
|
Power supply
|
100 to 240 VAC/50 to 60 Hz (Auto switching)
|
|
|
Power consumption
|
160 VA max.
|
|
|
Operating environment
|
Temperature: +10°C to +35°C
|
|
|
Humidity: 35 % to 75 % (non-condensing)
|
||
|
Guaranteed accuracy environment
|
Temperature: +16°C to +32°C
|
|
|
Humidity: 35 % to 70 % (non-condensing)
|
||
|
External dimensions (W x D x H) including stand*5
|
1578 x 715 x 1219 mm
|
|
|
62.1 x 28.1 x 48 in
|
||
|
Weight including stand
|
46 kg (101.4 lbs)
|
|
|
Compatible OS
|
Windows 2000 / Windows XP / Windows Vista Macintosh OS 10.2 or later
|
|
|
Certifications
|
UL, CUL, CE marking, RoHS, China RoHS
|
|
