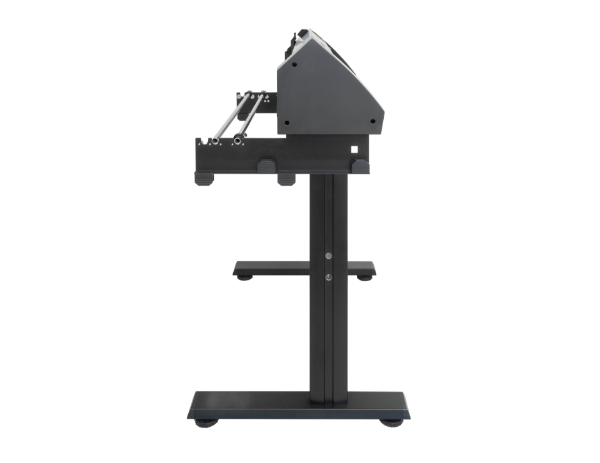

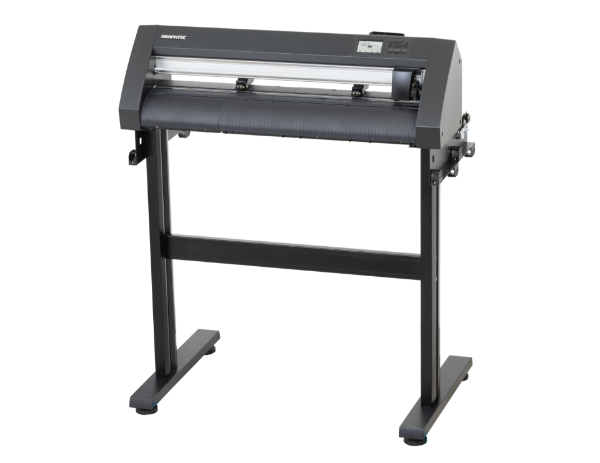

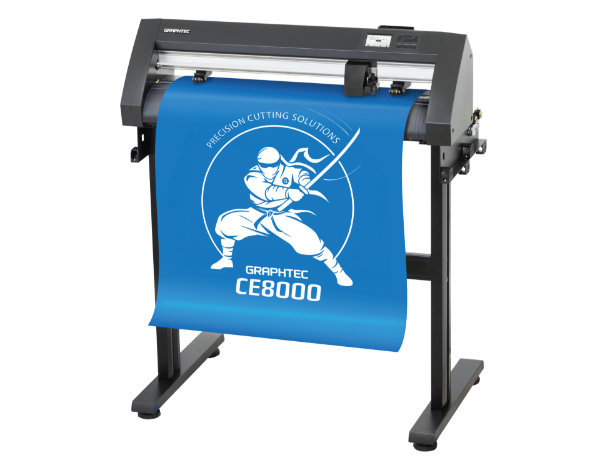

• GRAPHTEC CE8000-60 24" Wide "E-Class" Cutter with Stand with Ethernet
  • GRAPHTEC CE8000-60 24" Wide "E-Class" Cutter with Stand with Ethernet
  • GRAPHTEC CE8000-60 24" Wide "E-Class" Cutter with Stand with Ethernet
  • GRAPHTEC CE8000-60 24" Wide "E-Class" Cutter with Stand with Ethernet
1 4

Wide Image Solutions

GRAPHTEC CE8000-60 24" Wide "E-Class" Cutter with Stand with Ethernet

$2,075.00
$2,075.00
Shipping calculated at checkout.
    GRAPHTEC CE8000-60 24" Wide "E-Class" Cutter with Stand with Ethernet
    GRAPHTEC CE8000-60 24" Wide "E-Class" Cutter with Stand with Ethernet
    GRAPHTEC CE8000-60 24" Wide "E-Class" Cutter with Stand with Ethernet
    GRAPHTEC CE8000-60 24" Wide "E-Class" Cutter with Stand with Ethernet

    Tech Specs

    Description

    Introducing the NEW Graphtec CE8000 Series, the go-to solution for boosting production efficiency for Signage and Vinyl Graphics, DTF Apparel, PRINT & CUT,  POP & Packaging, Automotive Markets, and more.

    Compared to its predecessor, the CE7000, the CE8000 boasts Enhanced Rigidity for better feeding and cutting performance.

    New Wireless LAN capability adds convenience and flexibility, allowing seamless connectivity in various work settings. Plus, it's equipped with the reliable Registration Mark Sensing System (ARMS) carried over from the CE7000 for precise operation.

    Supercharge your Production Capabilities with the Graphtec CE8000 Series—the perfect solution for streamlined workflows with exceptional results.

    New Feature Highlights:

    A NEW TOUCH PANEL with MECHANICAL KEYS gives users more flexibility with its Blind Touch Operation enabling the operator to continually keep eyes on media while feeding.

    NEW Wireless LAN: The CE8000 includes a wireless connection module which improves flexibility of installation locations.

    NEW Tool Holder: Improved design makes it easier to change tools and blade position by sliding the stopper forward and back.

    Pressure Adjustable Push Rollers along with newly developed Media Set Assist Function help to hold your media stable and prevent feeding problems.

    Email Notification: Job Completion and Error Notifications can be sent to users by email.

    New Fan Media Assist: The CE8000 internal fan automatically turns on as sensors recognize media to support feeding.

    Tool Compartment: Now has a magnetic base making it easy to move location, giving you the option to remove if needed.

    Separate Tool Positions for contour and die cutting ensures the longevity of your blades and cutting strip when creating decals and graphics that are effortlessly popped out of sheet and roll media.

    Data Link Barcode System allows cutting different jobs with different data sequentially. By reading the Graphtec barcode, the CE8000 automatically detects its linked data from a PC or USB Drive.

    The CE8000 Series barcode data management system allows the Continuous Cutting of multiple jobs with different data sequentially by detecting the Start Mark of each new job.

    Advanced Registration Mark Sensing system delivers precise Print & Cut results using sensors to detect registration marks and perform axis alignment. Efficiency boosting functions improve productivity for Print & Cut applications such as labels and decals.

    Expanded Contour Cutting Area expands the Print & Cut area to include objects outside of the registration marks. Production efficiency is enhanced and media waste is reduced.

    CAPABILITIES

    450 gf Cutting Force

    39"/s Cutting Speed

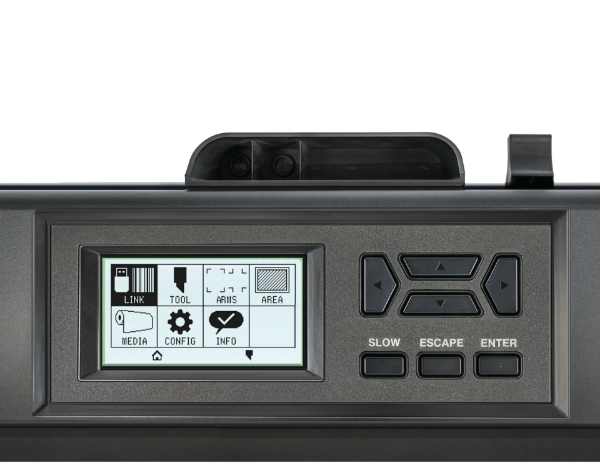

    NEW Control Panel

    • Touch Screen AND Mechanical Keys
    • New Menu Structure
    • Integrated Firmware Updates

    MORE INTUITIVE MENU STRUCTURE

    Revisions to the menu are more intuitive and efficient utilizing the New Touch Screen Feature with icons that allow for easier operation

    EASY FIRMWARE UPDATING

    Check and download firmware via GS2 or CM5 and install directly using a USB Flash Drive or USB cable (not supplied).

    HOLD DOWN FORCE CONTROL

    CE8000-130 center push roller can engage / disengage

    ACCESSORIES

    UPDATED BLADE HOLDER DESIGN





    Optional Accessories Available for Purchase:

    • Media Basket
    • Blade Loupe
    • Roll Media Tray
    • Carrier Sheet Table
    • Fiber-tip Pen / Holder
    • USB Cable

    Included Design Software and Plugin:

    Dedicated design software and plug-ins provide all of the tools necessary to create elegant and professional products.

    • Cutting Master 5 Plug-in: Adobe Illustrator (PC / MAC) CorelDRAW (PC)
    • Graphtec Studio 2: Design Software - PC / MAC
    • Windows Driver

    Technical Specifications

    Item CE8000-40 CE8000-60 CE8000-130
    Configuration Grit roller with digital servo drive system
    Maximum cutting area (W x L)

    15" x 164'

    24" x 164'

    50" x 164'
    Cutting area of guaranteed accuracy

    14" x 79"

    		 23” × 79” / 23”× 16.4’ *1 / *2 50”×79” / 49”×16.4’ *1 / *2
    Mountable media width 2"
    19"     		2"
    30"     		2"
    54"
    Number of push rollers 2 rollers 3 rollers
    Maximum cutting speed 24"/s, in all directions 36"/s, at 45º direction 39"/s, at 45º direction
    Maximum acceleration Max. 21.2 m/s2 (2.2G) at 45º direction 45.60' (13.9 m/s2), at 45º direction
    Maximum cutting force 4.41 N (450 gf)
    Minimum character size Approx. 5 mm (0.016") alphanumeric (depending on character font and type of media)
    Programmable resolution GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm
    Repeat-ability Max. 0.1 mm in plot up to 2 m (*1)
    Mountable number of tools 1 tool
    Blade type Supersteel
    Pen type Oil-based ballpoint, Water-based fiber-tip pen
    Media type Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 25 mil (.63mm) Stencil material
    Interface USB 2.0 (Full Speed) • Wireless LAN • 10BASE-T/100BASE-TX
    Buffer memory 2 MB
    Command sets GP-GL / HP-GL™ (Set by command or auto-detect)
    Display Touch Panel Screen (240-dot x 128-dot), supports 10 languages
    Registration Mark
    Sensing System     		Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation, 4-points axis alignment, Auto mark detection
    Alignment accuracy Maximum 0.3 mm with printed image (when reading specified registration marks)
    Power source 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz
    Power consumption 120 VA
    Operating environment 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
    Guaranteed accuracy environment 16 to 32 ºC, 35 to 70 % R.H. (non-condensing)
    External dimensions (W x D x H) Approx. 26.65" x 17.76" x 10.5" Approx. 35.5" x 23" x 42.4" Approx. 65" x 32" x 42.3"
    Weight (Approx.) 24.25 lbs (11kg) 46.3 lbs (21kg) 106 lbs (40kg)
    Compatible OS (*2) Windows 11 /10 / 8.1 / 64-bit editions
    Mac OS 10.2 (Sierra) to 13 (Ventura)
    Included software (download) Graphtec Studio 2, Cutting Master 5 for Windows, and Mac
    Compatibility Standards Safety PSE, UL/cUL, CE mark
    EMC VCCI Class A, FCC Class A, CE mark

    *1: Varies depending on the type of Graphtec-authorized film and the cutting conditions.

    *2: When using basket.

    *3: HP-GL is a registered trademark of the US Hewlett Packard Company.

    *4: Roll-medium tray or stand is included.

    *5: Option provided at the factory.
