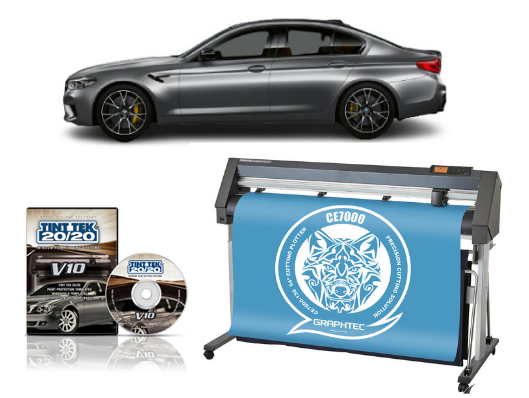

Graphtec CE7000-130 50" - Refurbished + Tint Tek 20/20 Window Film Cutting Software V10 1 Year Subscription

$7,891.99
$7,891.99
Shipping calculated at checkout.
    GRAPHTEC CE7000-130 50 INCH - Refurbished + TINT TEK 20/20 WINDOW FILM CUTTING SOFTWARE V10 1 YEAR SUBSCRIPTION www.wideimagesolutions.com CUTTER 7891.99

    Tech Specs

    Introducing the CE7000 series cutting plotter. The Graphtec CE7000 is the perfect solution for SIGNAGE Graphics • PRINT & CUT Graphics • Garment Decoration • Automotive Markets and many more….

    GRAPHTEC CE7000 FEATURES:

    • New 8.0 ARMS for Fast and Accurate Print & Cut Applications with XY Compensation Feature
    • Data Link Bar Code Feature for Maximum Productivity
    • NEW Easy-to-use USB Thumb Drive Connectivity - NO Computer Needed!

    The New CE7000 Series boasts our Popular Cutting Channel to allow easy perforated cut or through cut operations. The NEW CE7000 Series comes complete with our full complement of Graphtec Software along with our NEWLY ADDED Ethernet Connectivity.

    Graphtec makes everything EASY, so contact your nearest Graphtec Authorized Reseller today!

    A BROAD-BASED CUTTER FOR MANY APPLICATIONS

    APLICATIONS FOR CE7000



    Item CE7000-40 CE7000-60 CE7000-130
    Configuration Grit roller with digital servo drive system
    Maximum cutting area (W x L)

    15" x 164'

    24" x 164'

    50" x 164'
    Cutting area of guaranteed accuracy(W x L)
    (when using the basket)

    14" x 79"

    23" x 79"

    50" x 79"
    Mountable media width 2"
    19"    		 2"
    28"    		 2"
    60"
    Number of push rollers 2 rollers 4 rollers
    Maximum cutting speed 24"/s, in all directions 36"/s, at 45º direction 39"/s, at 45º direction
    Maximum acceleration 69.6' (21.2 m/s2), at 45º direction 45.60' (13.9 m/s2), at 45º direction
    Maximum cutting force 4.41 N (450 gf) in 38 steps
    Minimum character size Approx. 5 mm (0.016") alphanumeric (varies depending on character font and type of media)
    Programmable resolution GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm
    Repeat-ability Max. 0.1 mm in plot up to 2 m (*1)
    Mountable number of tools 1 tool
    Blade type Supersteel
    Pen type Oil-based ballpoint, Water-based fiber-tip pen
    Media type Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film,
    up to 25 mil (.63mm) cutting Graphtec Rhinestone Stencil material GRS1510-m
    Interface USB 2.0 (Full Speed), Ethernet
    10BASE-T/100BASE-TX
    Buffer memory 2 MB
    Command sets GP-GL / HP-GL™ (Set by command or auto-detect)
    Display Graphic type LCD with back-light (240dots x 128dots), supports 10 languages
    Registration mark sensing system Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation,
    4-points axis alignment, Auto mark detect
    Alignment accuracy Maximum 0.3 mm with printed image (when reading registration marks specified by this machine)
    Power source 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz
    Power consumption 120 VA
    Operating environment 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
    Guaranteed accuracy environment 16 to 32 ºC, 35 to 70 % R.H. (non-condensing)
    External dimensions (W x D x H)
    (with Basket)

    Approx. 30.4" x 11.5" x 12.3"

    Approx. 39.6" x 23" x 43"

    (39.6" x 36.9" x 43")

    Approx. 67" x 32" x 48"

    (67" x 45.2" x 48")
    Weight (Approx.)
    (with Basket)    		 27.7 lbs (13kg)

    51 lbs (23 kg)
    55.6 lbs (25.2 kg)

    		 112.4 lbs (51 kg)
    121 lbs (54.9 kg)
    Compatible OS (*2) Windows 10 / 8.1 / 7
    Mac OSX 10.6 - 10.11 - 10.12 - 10.15

    Compatibility Standards

    		 Safety PSE, UL/cUL, CE mark
    EMC VCCI Class A, FCC Class A, CE mark
