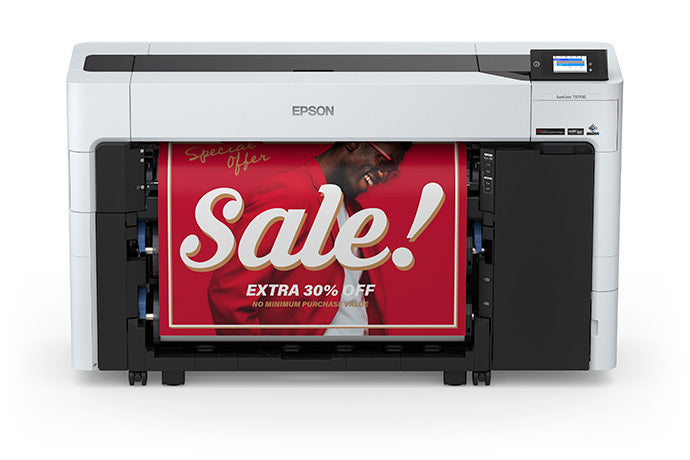

Epson SureColor T5770DR 36" Dual Roll Printer - New

Original price $6,395.00 - Original price $6,395.00
Original price
$6,395.00 - $6,395.00
Current price $6,395.00


Epson delivers a first-of-its-kind design that shatters expectations and redefines capability, versatility and efficiency for its class: the SureColor® T5770DR. With a compact footprint and all-front operation, the T5770DR fits where other printers don’t. It’s designed for outstanding quality, sharpness and speed, producing technical drawings at production-class speeds with A1/D-size prints in as little as 16 seconds. Its innovative six-ink set with dedicated Red Ink opens the door to an extraordinary color gamut for a production printer as well as rich red branding colors. And simple, carefree operation combined with new levels of media flexibility helps users do more using less space—all with a low total cost of ownership (TCO). Add it all up, and this is not just a one-of-a-kind printer—it’s the new benchmark in high-speed CAD and graphics.

Note: This printer is designed for use with Epson cartridges only, not third-party cartridges or ink*. See Important Ink Info

  • Incredible speed and performance — delivers crisp, detailed, colorful prints using a reliable 2.64" PrecisionCore® MicroTFP printhead, producing remarkable A1/D-size prints in as little as 16 seconds
  • Innovative design fits almost any workflow — unique flattop design with complete front operation, simple automatic roll loading and dual roll/take up reel integrated
  • Stunning image quality and precise line detail — vivid UltraChrome® XD3 Ink with Red Ink produces crisp lines and vibrant colors for graphics, signage, blueprints, documents and more
  • Includes Adobe® Embedded Print Engine as a standard option — natively process PDF and PostScript® files for fast and reliable printing
  • Print on a wide range of media for various applications — print on a variety of media, including glossy, technical, bond, matte and specialty medias, and rigid poster board up to 1.5 mm thick
  • Seamless, dual-roll productivity — accommodates two media types or sizes, or use second roll as a take-up reel for roll-to-roll production
  • Easy to use and maintain — configurable 4.3" touchscreen control panel for simple operation, automated routine maintenance and convenient user self-service for long-term operation
  • No assembly required — be up and printing in as little as 30 minutes
  • Versatile connectivity — high-speed USB 3.20 Gigabit Ethernet or Wi-Fi® connectivity (2.4 GHz and 5 GHz) options to fit virtually any production workflow
  • IT and security features — over 28 IT security features for office or remote office locations, including IC card option for user control and tracking, SSD Encryption and IEEE 802.1x
  • Maximize productivity with included Epson® Software Suite and Epson Cloud Solution PORT — remotely manage and monitor your printer fleet from convenience of your laptop or smart device

Designed for use exclusively with Epson ink cartridges.

Eco Features

  • RoHS compliant
  • Recyclable product
  • Epson America, Inc. is a SmartWay™ Transport Partner

Technical Specifications

Printing Technology PrecisionCore MicroTFP 6-channel drop on demand
Ink Type UltraChrome XD3 pigment ink; 6-color with Red (Cyan, Magenta, Yellow, Red, Matte Black, Photo Black)
Nozzle Configuration 9,600 nozzles (1,600 x 6 channels)
Droplet Technology Smallest Droplet Size: 3.5 picoliters; Variable Droplet Technology can produce up to 3 different sizes per nozzle
Maximum Resolution 2400 x 1200 dpi
Real-Time Black Ink Selection Dedicated Photo and Matte Black Ink channels selected automatically based on media type
Print Speed
A1/D Size (Plain Paper): 16 sec
A1/D-Size (Glossy): 65 sec (Speed Mode)
Printer Language/Drivers
Epson Professional Print Drivers (included), Epson ESC/P® raster, HP-GL/2, HP RTL), Adobe PostScript 3, Adobe PDF 1.7, Adobe Embedded Print Engine (included)
Memory (Built-In)
4 GB

Epson Intelligent Ink Cartridges

In-Box Cartridge Fill Volume
Colors (C, M, Y, R) 240 mL each
Black (MK, PK) 240 mL each
Retail Cartridge Fill Volume
Colors (C, M, Y, K, R) 110 mL, 350 mL or 700 mL
Black (MK, PK) 110 mL, 350 mL or 700 mL
Ink Cartridge Shelf Life
2 years from printed production date or 6 months after opened.
Printer is designed for use with Epson cartridges only, not third-party cartridges or ink*.

Roll Media Handling

Number of Input Rolls 2 (Input Roll #1 can be used optionally as a take-up reel)
Take-Up Reel Included
Take-Up Reel Configuration Roll print-side in or print-side out (selectable)
Minimum Roll Width Minimum 10"
Maximum Roll Width Up to 36"
2" or 3" Core Diameter User-adjustable roll media spindles
Roll Cutting High-speed internal rotary cutter; auto or manual (replaceable)
Maximum Roll Diameter Up to 6.69"
Maximum Roll Weight 27 lb
Roll Media Thickness 0.07 mm to 0.8 mm
Roll Paper Remaining Printable barcode tracking. The amount of remaining paper can be controlled and monitored automatically from the control panel.

Sheet Media Handling

Single Sheet, Front or Rear Loading Up to 36" wide
Minimum Sheet Width 8"
Minimum Sheet Length 8"
Sheet Media Max. Thickness Up to 1.5 mm (rigid posterboard)

Printable Area and Accuracy

Line Accuracy ±0.1% or ±0.26 mm (whichever is greater)
Left/Right: 3 mm per side (standard) or 0 mm at BorderFree® widths
Roll Paper: Min. 3 mm top / 3mm bottom
Cut Sheet: Min. 3 top / 12.7 mm bottom
BorderFree Sizes 10", 13", 16", 17", 20" or 24" wide
Maximum Printable Length 298 ft
Minimum Line Width 0.08 mm


Articulating LCD Display 4.3" touchscreen
USB Expansion Port Optional RFID card reader

Printer Interfaces

SuperSpeed USB 3.0, 100BASE-TX/1000BASE-T/IEEE
802.11b/g/n/ac, USB memory stick, 960 GB (SSD) optional, Adobe Embedded Print Engine

Operating Systems Supported

Mac® OS X® 10.9.5 or later, macOS® 11 or later
Windows® 10, Windows 8.1, Windows 8, Windows 7,
Windows Vista®, Windows XP® 32-bit/64-bit, Windows Server®
2019/2016/2012 R2/2012/2008 R2/2008/2003 R2/2003 SP2 or later


Dimensions (W x D x H) 65" x 20" x 39" (storage and operating)
Dimensions (W x D x H) 65" x 33" x 39" (paper basket extended)
Weight 302 lb
Acoustic Noise Level
Operating: 49.6 dBA
Sleep: 6.6 dBA


Operating: 50 ˚F to 95 ˚F (10 ˚C to 35 ˚C)
Storage: -4 ˚F to 104 ˚F (-20 ˚C to 40 ˚C)

Relative Humidity

Operating: 20%–80% (no condensation)
Storage: 5%–85% (no condensation)

Safety Standards

USA and Canada (NRTL Certified, CSA/UL 62368-1)
Compliant with FCC Class B Requirements

Electrical Requirements

Voltage: AC 110 V–240 V
Frequency: 50 Hz–60 Hz
Current: 3.4 A

Power Consumption

Printing: Approx. 80 W
Ready: Approx. 32 W
Sleep: 2 W
Power Off (Stand By): 0.3 W

Available Software

Software and Firmware Updaters, EpsonNet Setup, EpsonNet Print, Windows and Mac Print Drivers, LFP Accounting Tool, Epson Cloud Solution PORT, Epson Edge® Dashboard, Epson Media Installer, Epson Device Admin, Epson Print Admin, EpsonNet Config SE, Epson Manuals, ESC/P, HP-GL2, HP RTL, Adobe PostScript 3™, Adobe PDF 1.7

Eco Features

ENERGY STAR® qualified
RoHS compliant
Recyclable product
Epson America, Inc. is a SmartWay® Transport Partner

Ordering Information

SureColor T5770DR SCT5770DR
Replacement Printer Cutter Blade C13S210117
Additional Roll Feed Spindle (36") C12C937671
Maintenance Box C13S210115
Borderless Maintenance Box C13S210116
Cleaning Stick C13S090013
960 GB SSD Memory Unit C12C936671

UltraChrome XD3 Ink (110 mL)

Cyan Ink Cartridge T51A220
Magenta Ink Cartridge T51A320
Yellow Ink Cartridge T51A420
Matte Black Ink Cartridge T51A820
Photo Black Ink Cartridge T51A120
Red Ink Cartridge T51AF20

UltraChrome XD3 Ink (350 mL)

Cyan Ink Cartridge T50S220
Magenta Ink Cartridge T50S320
Yellow Ink Cartridge T50S420
Matte Black Ink Cartridge T50S820
Photo Black Ink Cartridge T50S120
Red Ink Cartridge T50SF20

UltraChrome XD3 Ink (700 mL)

Cyan Ink Cartridge T50L220
Magenta Ink Cartridge T50L320
Yellow Ink Cartridge T50L420
Matte Black Ink Cartridge T50L820
Photo Black Ink Cartridge T50L120
Red Ink Cartridge T50LF20

Epson Preferred Plus Extended Service Plans

1-Year Next-Business-Day On-Site Repair EPPT5700S1
2-Year Next-Business-Day On-Site Repair EPPT5700S2
4-Year Next-Business-Day On-Site Repair EPPT5700S4
(Plans are stackable for up to 5 continuous
years of coverage)
