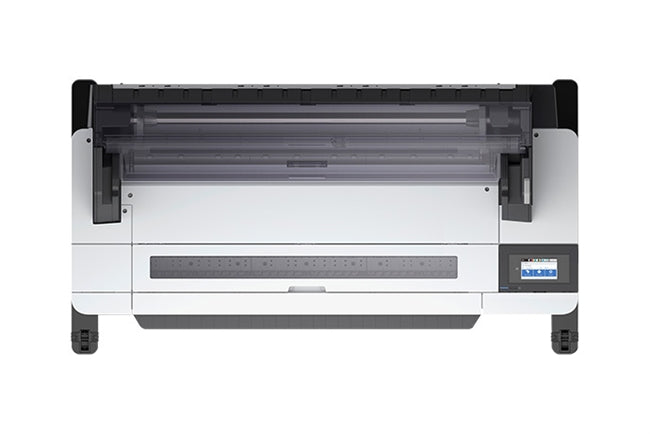

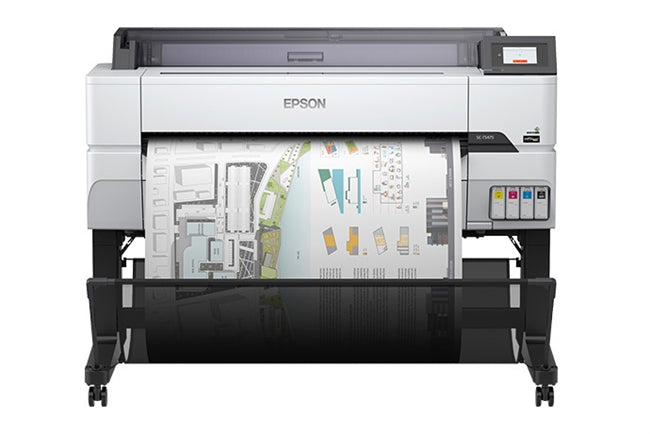

Epson SureColor T5475 36" Wide-Format Wireless Printer - New

Original price $2,395.00 - Original price $2,395.00
Original price
$2,395.00
$2,395.00 - $2,395.00
Current price $2,395.00

Note: Epson printers don't come with Inks, those are sold separated

Print:

Printing Technology:
PrecisionCore MicroTFP 4-channel, drop-on-demand printhead

Minimum Ink Droplet Size:
4 picoliters; Variable Droplet Technology can produce up to three different sizes per line

Maximum Print Resolution:
2400 x 1200 dpi

Print Speed:
A1/D-sized print: 22 seconds

Nozzle Configuration:
Color and monochrome heads; 800 nozzles x 4 channels

Ink:

Ink Type:
UltraChrome XD2 pigment ink; 4-color (C, M, Y, K)

Replacement Ink:
  • Ink Cartridge (110 ml)
  • Cyan T41W220
  • Magenta T41W320
  • Yellow T41W420
  • Black T41W520

Ink Cartridge (350 ml)
  • Cyan T41P220
  • Magenta T41P320
  • Yellow T41P420
  • Black T41P520

Ink Cartridge (700 ml)
  • Cyan T41N220
  • Magenta T41N320
  • Yellow T41N420
  • Black T41N520

General:

Operating Systems:
macOS® 10.13.x, Mac® OS X® 10.12.x, 10.11.x, 10.10.x, 10.9.x, 10.8.x and 10.7.x Windows® 10, 8.1, 7 (32-bit, 64-bit), Windows Vista® and Windows XP

Temperature:
  • Operating: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C)
  • Operating (Recommended): 65 ˚ to 75 ˚F (18 ˚ to 24 ˚C)
  • Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C)

Humidity:
  • Operating: 20–80% (no condensation)
  • Operating (Recommended): 45–60% (no condensation)
  • Storage: 5–85% (no condensation)

Sound Level:
  • Operating: Approx 50 dB(A)
  • Sleep: Approx 32 dB(A)

Dimensions:
With Stand: 55" x 28" x 42" (1385 x 696 x 1060 mm)

Weight:
With Stand: 168 lb (76 kg)

Eco Features:
  • ENERGY STAR® qualified
  • RoHS compliant
  • Recyclable product
  • Epson America, Inc. is a SmartWay® Transport Partner

Safety Approvals:
UL (MET), FCC (Class A), CSA, CE, EMC

Country of Origin:
Indonesia

Printable Area and Accuracy:

Maximum Paper Width:
36"

Minimum Paper Width:
Roll: 10"/Sheet: 8.27"

Maximum Printable Length:
Limited by application, OS and driver/RIP used

Sheet Media Handling:

Single Sheet, Top-loading:
Up to 36" wide

Left/Right Margins:
0 to 3 mm each (0.36" total)

Roll Media Handling:

Single Roll-to-Roll / Top-loading Roll:
Up to 36" wide

Media Core:
2” or 3" User-adjustable roll media adapters

Maximum Roll Diameter:
Up to 6.6"

Media Thickness:
Up to 11.8 mil

Roll Cutting:
High-speed internal rotary cutter; auto or manual

Roll Paper Remaining:
The amount of remaining paper can be controlled from the control panel

BorderFree Print Widths:
10.0", 11.8", 13.0", 16.0", 17.0", 19.7", 20.3", 23.0", 24.0", 36.0"

Printer Details:

Display:
4.3" Touchscreen

Printer Language:
Epson ESC/P® Raster, HP-GL/2, HP RTL

Interfaces:
SuperSpeed USB (compatible with USB 3.0 specification), USB Direct, Wireless LAN IEEE (802.11 b/g/n), Wired Ethernet (1000 Base-T/100 Base-TX/10 Base-T), Wi-Fi Direct

Power:

Rated Voltage:
AC 110–240 V

Rated Frequency:
50–60 Hz

Power Consumption:
  • Printing: Approx. 34 W
  • Ready: Approx. 13 W
  • Sleep: approx. 1.3 W
  • Power Off (Stand By): 0.25 W

Rated Current:
2.8 A

Epson Intelligent Ink Cartridges:

In-box Cartridge Fill Volume:
C, M, Y, K: 110 mL

Retail Cartridge Fill Volume:
C, M, Y, K: 110, 350, or 700 mL

Ink Cartridge Shelf Life:
2 years from printed production date or 6 months after opened Printer is designed for use with Epson cartridges only, not third-party cartridges or ink. *


Specification Notes:

* This printer is designed for use with Epson genuine cartridges and ink only, not third-party cartridges or ink. For more information, see www.epson.com/wideformatink

1) Print speeds are based on the print engine speed only. Total throughput time for any print depends on workstation configuration, file size, print resolution, ink coverage, networking, etc. Actual print speeds will vary.

2) Product size excluding optional stand.

3) Most features require an Internet connection to the printer, as well as an Internet- and/or email-enabled device. For a list of Epson Connect™ enabled printers and compatible devices and apps, visit www.epson.com/connect

4) Wi-Fi CERTIFIED™; level of performance subject to the range of the router being used. Wi-Fi Direct may require printer software.

5) Cartridge yields vary considerably based on images printed, print settings, paper type, frequency of use and temperature. For print quality, a variable amount of ink remains in the cartridge after the “replace cartridge” indicator comes on. The printer ships with full set of initial cartridges (CMY – 26 mL/Black – 50 mL) and part of the ink from the first cartridges is used for priming the printer.

6) High-volume cutting of canvas and heavy media stocks may require frequent cutter replacement.

7) Allowed by printer driver for Mac and PC. Application, version of application and operating system version may limit maximum length.

8) For the latest drivers, visit www.epson.com/support

9) For convenient and reasonable recycling options, visit www.epson.com/recycle

10) SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency
