Better Performance. More Profit. How do you reinvent the dye-sublimation transfer printer? You start by specially designing, from the ground up, every component to work together as one system - from the print head and ink technology, to the printer engine and software. The result? A high-performance dye-sublimation transfer printer designed with extreme reliability for true industrial-level production.

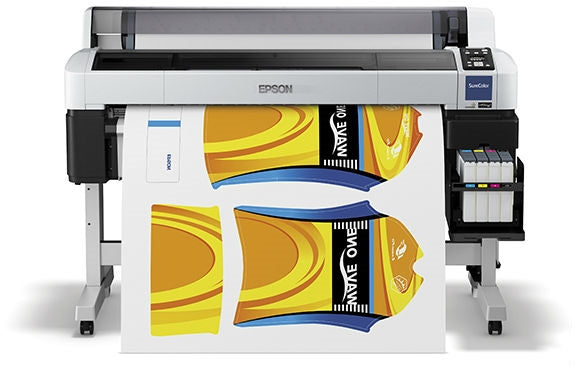

Introducing the all-new Epson SureColor® F6200. Developed using the latest advancements in performance imaging, this innovative versatile solution includes our exclusive PrecisionCore™ TFP® print head, along with our latest dye-sublimation ink technology - Epson UltraChrome® DS with High Density Black.
The Epson SureColor F6200 Printer leverages Epson's UltraChrome® DS ink with an all new high density Black ink to deliver improved ink efficiency and black density with better tonal transitions and grayscale for high quality results in the Roll-to-Roll fabric production, customized promotional production, soft signage, and cut-and-sew sports apparel, fashion, and home décor markets.
More about the SureColor F-Series Printers
Engineered from the ground up, the Epson SureColor F-Series offers a range of productivity features, including:
- Epson PrecisionCore TFP Printhead: Offers high-performance and consistency, along with variable size ink droplet technology for remarkable photographic print quality and accuracy.
- Epson UltraChrome DS Ink: Epson-exclusive UltraChrome DS ink with all-new high density Black produces an extreme color gamut with improved black density for rich blacks and better tonal transitions and gray scale; provides fast drying times and improved ink efficiency for a low total cost of ownership. The SureColor F-Series printers are designed to be used exclusively with Epson UltraChrome DS inks and not with any other brands of cartridges or inks.
- Continuous High-Speed Roll-to-Roll Productivity: Highly accurate take up reel and substrate system deliver winding accuracy within ±2.5mm on transfer paper Rolls.
- Workflow: Wasatch SoftRIP enables users to print sellable output immediately out of the box with specialty features designed for textile printing.
- Epson DS Transfer Papers: Compatible with Epson's dye-sublimation transfer papers, including the DS Transfer Production paper for high-volume customers (up to 575 feet per Roll); DS Transfer Adhesive Textile for high-end cut-and-sew fabric and apparel production; and the DS Transfer Multipurpose for transfer applications with soft or rigid surfaces.
Engineered from the ground up for Dye-Sublimation industrial-level production, designed to run all day, every day, the Epson SureColor F6200 printer offers a range of features, including:
Epson SureColor F6200 Dye Sublimation Transfer Industrial-Level Printer Overview
- All new Epson UltraChrome DS inks with High-Density Black formulated for exceptional dye-sublimation transfer
- Photographic print quality with resolution up to 1440x720 dpi
- Revolutionary Epson PrecisionCore TFP print head designed to work exclusively with Epson UltraChrome DS inks (will not function with other ink systems)
- Outstanding everyday production speeds up to 634 ft2 per hour
- High Reliability - Developed to Run 24/7
- High-Capacity refillable ink tanks for increased productivity
- Includes workflow software by Wasatch®
- Built-in Auto Sheet Cutter for industrial Roll to cut-sheet media handling
- Ideal for flatbed heat transfer press application
- One year limited on-site warranty with product registration (warranty coverage is lost if any non-Epson ink system is used)
Epson UltraChrome DS Ink Cartridges
- High-Capacity refillable ink tanks hold 1.5 liters per color
- Designed to work exclusively with SureColor F-Series printers
- Four color - featuring a High Density Black ink formulation
- Vibrant colors, intense blacks, sharp contours, and smooth gradations
- Extremely fast drying times
- New ink refill packs reduce total cost of ownership
MicroPiezo Print Head
- Efficient, precise and repeatable performance and excellent image quality
- Low vibration meniscus control for highly accurate dot shape and placement
- One-inch wide print head with 720 nozzles per color
- Ink repelling coating technology for reduced print head maintenance
- Optimized specifically for UltraChrome DS dye-sublimation inks improving the print head life
Printer Specifications
Base Printing Technology
- Advanced PrecisionCore TFP Print Head
- 8-channel, drop-on-demand, ink jet head
- Continuous Ink Supply System, 1.5L High-Capacity Tanks
- 4 Color (Cyan, Magenta, Yellow, High Density Black)
- Epson UltraChrome DS ink with High Density Black
- Industrial-level dye-sublimation ink technology
Printer Nozzle Configuration
720 nozzles per Color with Variable Droplet Size
Minimum drop size is 5.3 picoliters
Resolution
1440x720 dpi; 720x720 dpi; 720x360 dpi
Dimensions
Dimensions and weights include printer and stand
63"(W)x36"(D)x45"(H)
SureColor F6200 - 207 lbs (Does not include Ink)
Print Engine Speeds
Speed (720x360 dpi) |
634 SFPH |
Production (720x720 dpi) |
239 SFPH |
High Quality (1440x720 dpi) |
119 SFPH |
Acoustic Noise Level
Approximately 55 dB(A) according to ISO 7779
Wasatch SoftRip® Requirements
Minimum
Windows 7, Windows 8, or Windows 10
2GHz CPU
2GB RAM
120GB hard drive
DVD-ROM drive
Recommended
Windows 7, Windows 8, or Windows 10
3GHz or higher quad core CPU
4GB RAM
500GB or larger solid state drive
DVD-ROM drive
File Format Compatibility
PostScript Level 3, PDF, EPS, Tiff, JPG, GIF, PNG, PSD, BMP, PCX, PPM, TGA, DCS2, and MrSID
Epson UltraChrome DS Ink
Pack |
(1000ml) |
High Density Black |
T741X00 |
Cyan |
T741200 |
Magenta |
T741300 |
Yellow |
T741400 |
Oeko-Tex 100 (Product Class 1)
The four color Epson dye sublimation inks used in the Epson SureColor F6200 printer, when applied to polyester fabrics, pass the requirements of Oeko-Tex Standard 100 for human ecological requirements of Class 1 products for adults, children, and babies up to 36 months. Oeko-Tex Standard 100 specifies testing criteria for the presence of harmful substances within a textile product. The standard belongs to the International Association for Research and Testing in the field of Textile Ecology (Oeko-Tex)
Limited Warranty and Service
- Printer comes with one year limited on-site warranty with product registration. For details or product registration, visit (http://www.onlineregister.com/epson/app/). Registration also enRolls the printer in Epson's loyalty program.
- Registration also entitles customer to purchase an extended on-site service plan at a favorable price, plus use loyalty points against the purchase. Coverage is for one year or two service calls, whichever occurs first. Up to two plans may be purchased, for a maximum total coverage period (including warranty period) of three years.
- Warranty and extended service coverage are lost if any non-Epson cartridges, inks or ink delivery system is used
- Epson offers fee-based parts and labor service for problems not covered under warranty or extended service. Please be aware that the fee for a print head replacement may greatly exceed the cost of an extended service plan. To ensure availability of replacement print heads for our loyal F-Series users, Epson will not make print heads available to parts distributors or servicers generally.
Printable Area
Maximum paper width |
44-inch |
Minimum paper width |
10-inch Roll |
Left and right margins |
0 to 3 mm each side (0.24" total) |
Maximum printable width |
43.77-inches |
Maximum printable length
limited by application, OS, and driver/RIP used
Media Handling
Epson Genuine Ink Supply System
Ink Supply Tank fill volume |
1500 ml, eachx4 colors total |
Ink Pack Capacity |
1000 ml, eachx4 colors total |
Shelf life of Ink Pack |
2 years from printed production date |
The printer is designed exclusively for use with Epson ink packs for greater reliability.
Environmental Characteristics
Temperature Operating Recommended |
59° to 95°F (15° to 35°C) 59° to 77°F (15° to 25°C) |
Relative Humidity Operating Recommended |
20 to 80% 40 to 60% |
Installation Requirements |
Virtually any location with a typical air conditioning or other good air ventilation system. |
Electrical Requirements
Printer |
|
Voltage |
AC 100-240 V |
Frequency |
50-60Hz |
Current |
0.5-1A |
Power consumption |
|
Printer |
|
Operating |
Approx. 65W |
Ready |
Approx. 20 |
Sleep |
Less than 3W |
Power Off |
Less than 0.4W |
Products and Accessory Part Numbers
SureColor F6200 Production Edition |
SCF6200PE |
Additional Roll Media Adapters |
C12C811391 |
Replacement Printer Cutter Blade |
S902006 |
Additional Waste Ink Bottle |
C13T724000 |
Additional Head Maintenance Kit |
C13S210042 |
Additional Year Epson Preferred Plus Service |
EPPF60SB1 |
What's In The Box
- SureColor F6200 Printer
- Printer Stand
- Epson Genuine Ink Supply System
- Spindle-free Roll Media Adaptors
- Initial Ink Pack - Set of 4 - 1000ml ink packs
- User Guide Kit (Documentation and Software)
- AC Power Cable
Included Software
- Epson Professional Communication Driver for Windows
- Epson LFP Remote Panel 2
- Epson Net Config
- Wasatch SoftRIP® Epson F6200 Edition
