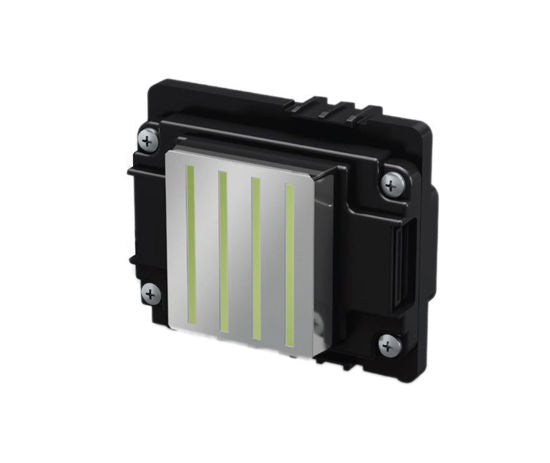

Epson I3200-S1 HD Solvent Printhead - I3200-S1 HD

The Epson I3200-S1 Solvent is a cost-effective 1.33 inch-wide providing higher nozzle resolutio with up to 1200 nozzles per inch. This printhead is suitable for solvent based inks.  We recommend to change the head cables when installing a new printhead.

Specifications:

• Ink Type : UV / Eco Solvent / Oil / Solvent
• Type : PrecisionCore MicroTFP printhead

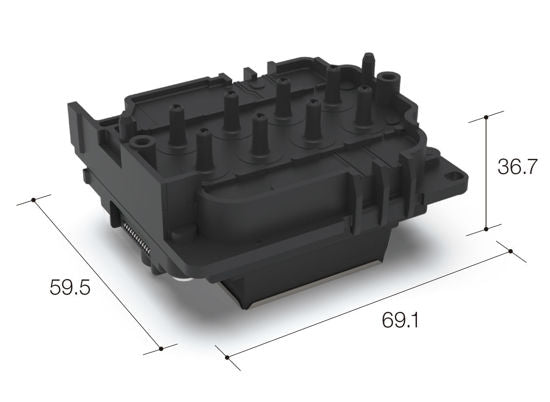

• Width x Depth x Height: 69.1 x 59.4 x 35.6 mm
• Weight : 82g
• Number of nozzle : 3200
• Nozzle pitch/nozzle row : 1/300 inch
• Nozzle rows: 8 rows
• Nozzle Resolution : 300 npi/row, 600 npi/2 rows, 1200 npi/4 rows
• Max. number of colour inks : 8 colours
• Effective print width : 33.8 mm (1.33 inches)
• Droplet ejection performance :
  Binary : 5 pl at 43.2 kHz
  3 levels grey scale : 6, 12.5 pl at 21.6 kHz
  4 levels grey scale 3.5, 6.3, 12 pl at 12 kHz
• Viscosity range : 6.0 - 7.0 mPa·s
• This printhead carries a manufacturer warranty.
