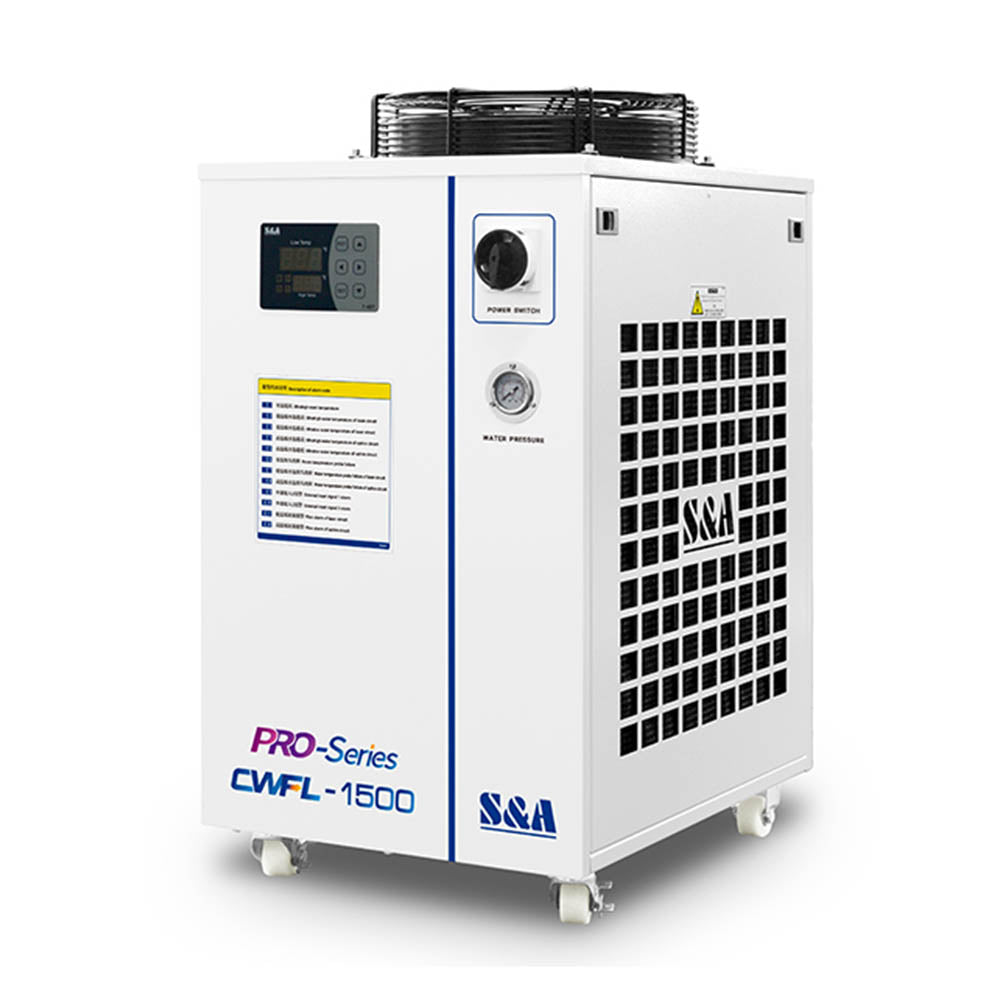

CW-FL-1500BN Industrial Water Chiller for Cooling 1500W Fiber Laser, 2.30HP, AC 1P 220V, 60Hz

Original price $3,043.00 - Original price $3,043.00
Original price
$3,043.00
$3,043.00 - $3,043.00
Current price $3,043.00

Description

CWFL-1500 water chiller developed by S&A is made especially for fiber laser applications up to 1.5KW. This industrial water chiller is a temperature control device featuring two independent refrigeration circuits in one package. Therefore, separate cooling from just ONE chiller can be provided for the fiber laser and the laser head, saving considerable space and cost at the same time.
Two digital temperature controllers of the chiller are designed with built-in alarms so that your fiber laser machine can always be well protected against circulation problems or overheating. This laser water chiller is also designed with easy-to-read level check, caster wheels for easy mobility, high performance cooling fan and intelligent temperature control function which suggests water temperature can adjust itself automatically as the ambient temperature changes.

Features
1. Dual cooling circuit
2. Active cooling
3. Temperature stability: ±0.5°C
4. Temperature control range: 5°C ~35°C
5. Refrigerant: R-410a
6. User-friendly controller interface
7. Integrated alarm functions
8. Back mounted fill port and visual water level
9. Optimized for high performance at low temperatures
10. Ready for immediate use

Specification
Model CW-FL-1500BNPTY
Voltage AC 1P 220~240V
Frequency 60Hz
Current 3.9~17.5A
Power consumption 4.09KW
Heater power 400W+600W
Refrigerant R-410a
Refrigerant charge 1200g
Precision ±0.5℃
Reducer Capillary
Protection Overcurrent protection for compressor, flow alarm, over temperature alarm
Pump power 0.75 KW
Tank capacity 14 L
Inlet and outlet Rp1/2”+Rp1/2”
Max. Pump pressure 5.3bar
Rated Flow 2L/min+>15L/min
N.W 70Kgs (154.3lb)
G.W 82Kgs (180.8lb)
Dimension 700mm x 470mm x 890mm(27.6" x 18.5" x 35")
Package dimension 730mm x 560mm x 1050mm(29" x 22" x 41")

The max. pump flow is obtained by testing the pump individually on test criteria GB/T 3216-2005.criteria GB/T 3216-2005.

Note:
1. The working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product;
2. Clean, pure, impurity free water should be used. The ideal one could be purified water, clean distilled water, deionised water, etc.;
3. Change out the water periodically (every 3 months is suggested or depending on the actual working environment);
4. Location of the chiller should be well ventilated environment. There must be at least 50cm from the obstacles to the air outlet which is on the top of the chiller and should leave at least 30cm between obstacles and the air inlets which are on the side casing of the chiller.
