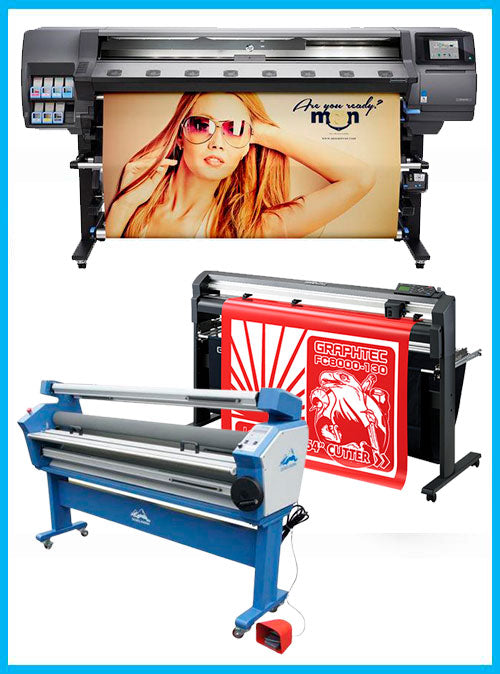

COMPLETE SOLUTION - HP Latex 360 64in Printer - Refurbished (90 Days, 1, 2, 3 or 4 Years Warranty) + 54" Graphtec FC8000-130 Vinyl Cutting Plotter - Refurbished (1 Year Warranty) + 55in Full-auto Wide Format Cold Laminator with Heat Assisted

HP Latex inks have many benefits over even eco-solvent inks, as they are odourless, of a high-quality and have significant health advantages. You don’t need to specially ventilate this printer, or attach hazard labels to it – the water-based inks are nickel-free, non-flammable and non-combustible.

The versatility makes the HP Latex 360 ideal for print companies providing a range of different services for their clients. As well as the ability to print on various substrates, including textiles, users have access to an intuitive 8-inch touchscreen, through which they can save print profiles and fine-tune jobs to achieve the best possible results every time.

Key features

---

• Maximum printing speed is 91m²/hr (980ft²/hr).
• Print up to 64 inches.
• Print a wider variety of signage and graphics, including billboards, hoardings, taxi wraps, outdoor banners, and more.
• Achieve high-quality, 1200 dpi images with six colours.
• No additional ventilation, hazard labels or HAPs are required, and the ink is nickel-free.
• Perfect for producing outdoor prints, as they last up to five years when laminated, three when not.

Technical specifications

Printing

Printing modes

91 m²/hr (980 ft²/hr) - Max Speed (1 pass)
31 m²/hr (334 ft²/hr) - Outdoor High Speed (4 pass)
23 m²/hr (248 ft²/hr) - Outdoor Plus (6 pass)
17 m²/hr (183 ft²/hr) - Indoor Quality (8 pass)
14 m²/hr (151 ft²/hr) - Indoor High Quality (10 pass)
6 m²/hr (65 ft²/hr)- Backlits, Textiles, and Canvas (16 pass)
5 m²/hr (54 ft²/hr) - High Saturation Textiles (20 pass)

Print resolution

Up to 1200 x 1200 dpi

Margins

5 x 5 x 0 x 0 mm (0.2 x 0.2 x 0 x 0 in) (without edge holders)

Ink types

HP Latex Inks

Ink cartridges

Black, cyan, light cyan, light magenta, magenta, yellow, HP Latex Optimizer

Cartridge size

775 ml

Printheads

6 (2 cyan/black, 2 magenta/yellow, 1 light magenta/light
cyan, 1 HP Latex Optimizer)

Color consistency

<= 2 dE (95% colors)
<= 1 dE average22

Media

Handling

Roll feed; take-up reel; automatic cutter (for vinyl, paperbased media, backlit polyester film)

Media types

Banners, self-adhesive vinyls, films, fabrics, papers, wallcoverings, canvas, synthetics, mesh, textiles

Roll size

254 to 1625-mm (10 to 64-in) rolls (580 to 1625-mm (23 to 64-in) rolls with full support)

Roll weight

42 kg (92.6 lb)

Roll diameter

250 mm (9.8 in)

Thickness

Up to 0.5 mm (19.7 mil)

Applications

Banners, Displays, Double-sided banners, Exhibition, Event graphics,
Exterior signage, Indoor posters, Interior decoration, Light boxes – film,
Light boxes – paper, Murals, POP/POS, Posters, Textile, Vehicle graphics

Connectivity

Interfaces (standard)

Gigabit Ethernet (1000Base-T)

Dimensions (w x d x h)

Printer

2561 x 840 x 1380 mm (101 x 33 x 54 in)

Shipping

2795 x 760 x 1250 mm (110.1 x 30 x 49.3 in)

Weight Printer

207 kg (456 lb)

Shipping

301.5 kg (665 lb)

64" Graphtec FC8000-160 High Performance Vinyl Cutting Plotter

Highest cutting force in its class

600gf maximum cutting force for cutting wider variety of materials.

Fastest cutting speed in its class

1485mm/s maximum cutting speed for the higher productivity.

Reliable long-length tracking

Stronger internal structure for improved media handling. The Optional flange set, new designed media basket and 3 different pressure push rollers provides more control on long length cutting for guaranteed 50 feet tracking.

Five sizes choose from

The series come in cutting width of 24”, 30”, 42”, 54” and 64” to fit your requirements.
*When Using with Graphtec specified media and cutting condition.

Ease-of-use operation

Cutting Plotter Controller Software enables remote control via a Pc. 3 inch LCD display with interactive operation panel.
ARMS4.0, Advanced Registration Mark Sensing system for improved handling.

3 inch LCD display with interactive operation and icon menu enables easy-to-use key operation. Further more, plotter conditions are displayed by icons, so the setting conditions can be checked without key operations.

PERF CUT ENABLED high performance cutters finish the job!
• With its included perf cut enabled custom tool settings—you have the ability to perforate cut all the way through your pre printed vinyl media for pop-out full-color stickers and decals without damaging your blade or cutting plotter machine.

 FC8000 series Graphtec's Flagship Grit-rolling cutter
Providing the high performance and functions and greater ease of use.

Family of 5 sizes with superior specifications and Enhanced functions.

Highest cutting force in its class.
600gf maximum cutting force for cutting wider range of materials.

Fastest cutting speed in its class.
1485mm/s maximum cutting speed for the highest productivity.

Reliable long-length tracking capability.
The 3 step push roller provides a more stable long length cutting for 15m (50feet) tracking guarantee for cutting wider range of materials.
*When Using with Graphtec specified media and cutting condition.

Wide range of cutting areas.
Up to 24”, 30”, 42”, 54” and 64” width media can be cut by each size of models.



FC8000 Series

Model		FC8000-60	FC8000-75	FC8000-100	FC8000-130	FC8000-160
CPU		32-Bit
Configuration		Digital Servo Friction feed with MicroGritroll™ drive
Max. cut width (expanded mode)		610 mm (24 in)	762 mm (30 in)	1067 mm (42 in)	1372 mm (54 in)	1626 mm (64 in)
Mountable media	Max. width	770 mm (30.3 in)	920 mm (36.2 in)	1224 mm (48.2 in)	1529 mm (60.2 in)	1850 mm (72.8 in)
	Min. width	50 mm (2 in)
Max. cross cut area		734 mm (28.9 in)	886 mm (34.9 in)	1191 mm (46.9 in)	1496 mm (58.9 in)	1750 mm (68.9 in)
Max. cutting speed (Axial)		1485 mm / sec (58.5 in/s) at a 45°angle
Max. axial acceleration		4.0 G (39.2 m/s2)
Cutting pressure		20 g to 600 g (0.196 N to 5.88 N) in 48 steps
Min. character size *1		3 mm (0.125 in) alphanumeric Helvetica med. Font
Mechanical resolution		0.005 mm (0.0002 in)
Programmable resolution		GP-GL : 0.1 / 0.05 / 0.025 / 0.01 mm , HP-GL™ : 0.025 mm
Repeatability *2		Max. 0.1 mm / 2 m (0.0039 in / 80in)
Tools		Accepts (1) cutting blade, (1) plotting pen, or (1) pouncing tool ; Second penholder (optional)
Blade types		Supersteel (0.9 mm or 1.5 mm), Sapphire(1.5 mm)
Pen types		Water-based fiber-tip, oil-based ballpoint, and disposable ink pens
Pouncing tool type		Requires optional pouncing tool : (PPA33-TP12, 1.2-mm pin diameter)
Media types		Self-adhesive vinyl film, diamond grade, fluorescent film, reflective film, AmberlithTM , RubylithTM , window film, high-intensity reflective film*3 , paint protection film, up to 0.25 mm tick , sandblast resist rubber up to 1 mm thick, etc.
Compatible paper for pouncing		Regular paper from 0.06 to 0.13 mm thick
Standard interfaces		RS-232C / USB2.0 (Full speed) Option:Ethernet (10 BASE-T / 100 BASE-TX)
Buffer memory		2 MB
Command sets		GP-GL / HP-GLTM *4
LCD display Graphic type		3 inches LCD backlight type
Power supply		100 to 240 VAC/50 to 60 Hz (Auto switching)
Power consumption		160 VA max.
Operating environment		Temperature: +10°C to +35°C
		Humidity: 35 % to 75 % (non-condensing)
Guaranteed accuracy environment		Temperature: +16°C to +32°C
		Humidity: 35 % to 70 % (non-condensing)
External dimensions (W x D x H) including stand *5		1128 x 715 x 1219 mm	1278 x 715 x 1219 mm	1578 x 715 x 1219 mm	1878 x 715 x 1219 mm	2138 x 715 x 1219 mm
		44.4 x 28.1 x 48 in	50.3 x 28.1 x 48 in	62.1 x 28.1 x 48 in	73.9 x 28.1 x 48 in	84.2 x 28.1 x 48 in
Weight including stand		38 kg (83.8 lbs)	42 kg (92.6 lbs)	46 kg (101.4 lbs)	54 kg (119 lbs)	59 kg (130 lbs)
Compatible OS		Windows 2000 / Windows XP / Windows Vista   Macintosh OS 10.2 or later
Certifications		UL, cUL, CE marking, RoHS, China RoHS

*1

The CB15UB cutter blade is recommended when cutting characters which size is 10 mm or smaller.

*2

When operated with Graphtec specified media and conditions.

*3

The CB15UA cutter blade and a reinforced backing sheet must be used when cutting high-intensity reflective film.

*4

HP-GLTM is a registered trademark of Hewlett-Packard Company.

*5

Tolerance : +/- 5 mm

63" Full-auto Low Temp. Wide Format Cold Laminator, with Heat Assisted

Qomolangma 55in full-auto wide format roll to roll top heat assist laminator and mounting machine. No wrinkle, no silvering, no slidding!
Equipped with heat on the top roller to activate the adhesive on your pressure sensitive lamination film, you can rest assured that you will achieve the perfect finish every time.
WA series designed for wide format laminating or mounting application use. Entry level Full-auto roll to roll model with metal sheet construction.

Used for:
A perfect fit for entry level customer, who is looking for an affordable and professional cold laminator for projects. This new model can be widely used for pre - masking vinyl graphic, mount prints on substrate, over laminating inkjet prints and so on.
Cold roll laminators are the perfect option for someone looking to enter the wide format graphics market. Equipped with all of the features needed to produce most applications, Qomolangma cold roll laminator promises quality, performance and safety – at an affordable price.
• Great for mounting prints to boards
• Over laminating digital prints
• Applying application tapes, applying double side adhesives and vinyl
Remark: Trimmer cutting function for your option, if you want this function, please choose "with trimmer"

Features:
• Good color reducibility and light transmittance, free of bubbles and snowflake point!
• Free heavy duty floor stand with caster wheels
• Laminates graphics up to 55in wide
• Drop in type interchangeable 3 inches aluminum shaft
• Manual nip adjustment up to 1.38 inch for handling of most substrates
• 102mm (4in) bigger rollers for best quality laminating control
• Safety eyes for increased operator safety
• Foot switch for hands free operation
• Removable front worktable for easy film setup
• Adopt new - style aluminum alloy supporting roller.
• One side hand crank lift up system
• Button type control panel
• Variable speed control
• Forward and reverse direction control
• E-stop and photocell installed for safety
• Both auto and foot pedal switch mode
• Removable pressure plate
• Stand assembled at customer site

Specification:
Electrical Requirements: AC110V / 50 - 60Hz, AC230V / 50 - 60Hz
Heated Rollers: Heat Assist
Maximum Roller Temperature: 140F (60C)
Maximum Speed: 19.685 ft / min (6m / min)
Maximum Substrate Thickness: 1.38in (35mm)
Maximum Working Width: 55in (1400mm)

Usage:

Qomolangma Laminator's Advantages:
Hand crank and electric lifting: compared with pneumatic lifting structure, the roll parallel setting is more stable, meet the needs of high end customers with high laminating quality request, and there are fewer after-sales problems;
Rubber roller: the original raw rubber roller has good elasticity and durability compared with the recycled rubber;
Mechanical installation: the sheet metal is cut by laser to ensure the correct installation of the mounting hole, so as to ensure that the unwind/rewind shaft is parallel and finishing lamination is without wrinkle and air-bubble;
Electric wiring: the design of electrical structure is humanized and easy to operate.

Application:
Sign & display, window graphics, banner, poster, POP, vehicle wrapping, wallpaper, cutting sheet sticker, labels & decals, proof, POS display, package, sign board,  flyer, document finishing, floor graphics, rigid and flexible indoor displays, board and many more.
