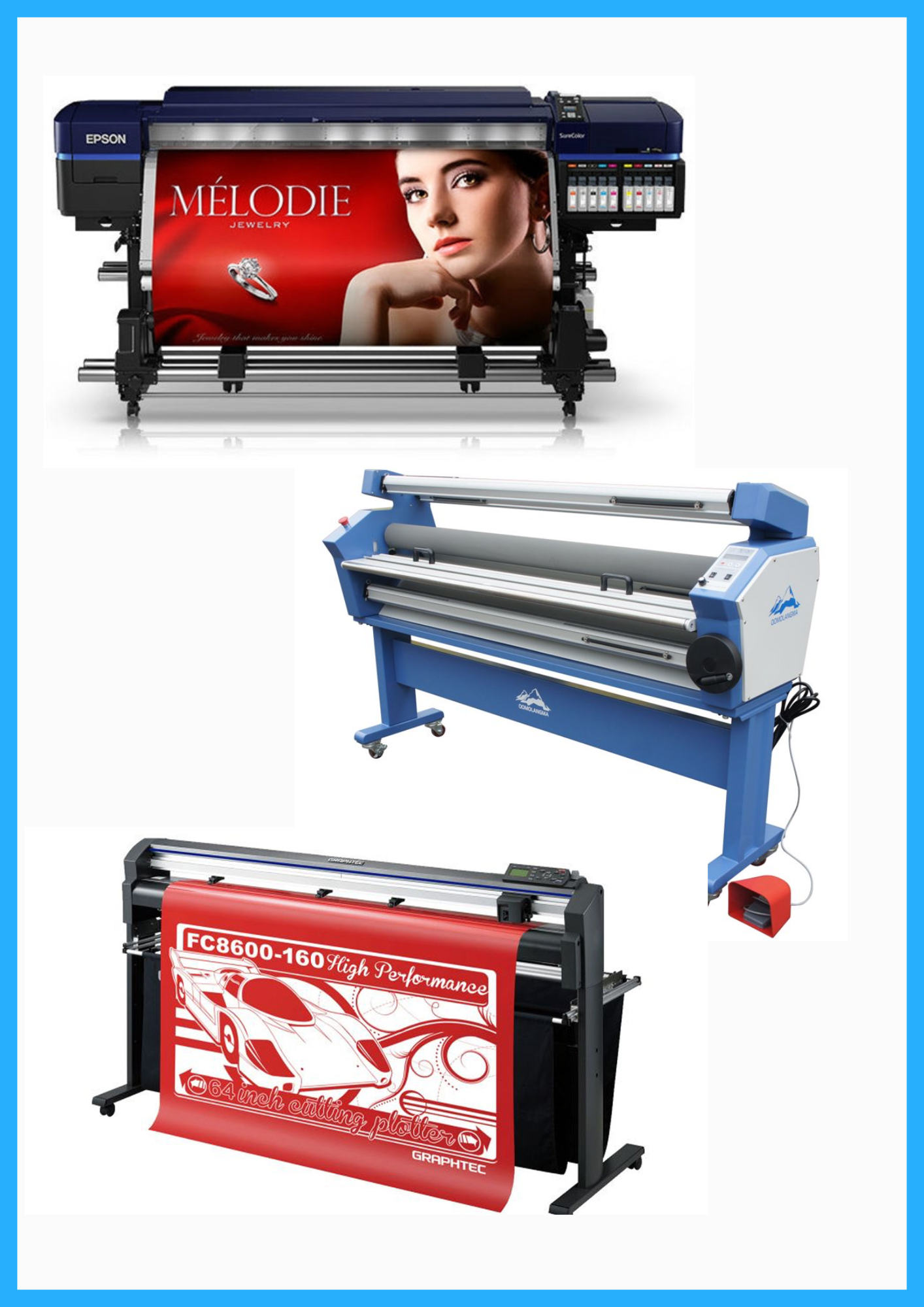

COMPLETE SOLUTION - Epson Surecolor S80600 Production Edition 64" Solvent Printer (Refurbished) + 64" Graphtec FC8600-160 Vinyl Cutting Plotter (Refurbished) + 55" Full-Auto Wide Format Cold Laminator with Heat Assisted (New)
Original price
$16,697.99
-
Original price
$18,297.99
Original price
$16,697.99
$16,697.99
-
$18,297.99
Current price
$16,697.99
This complete solution includes:
-
Epson Surecolor S80600 Production Edition 64" Solvent Printer - Refurbished (Choose between 90 Days, 1 or 2 Years Warranty)
-
64" Graphtec FC8600-160 Vinyl Cutting Plotter - Refurbished (Choose between 90 Days, 1 or 2 Years Warranty)
-
55" Full-Auto Wide Format Cold Laminator with Heat Assisted (New)
Note: Epson printers don't come with Inks or starter supplies, those are sold separately
Epson Surecolor S80600 Production Edition 64" Solvent Printer - Description
Features & Benefits
At Epson, our goal was to develop a line of solvent-based printers that would significantly outperform anything that has come before them. Working closely with sign-makers, Epson Engineers developed all-new imaging technology to address the everyday problems associated with lesser sign printers.
As a result, our all-new line of solvent printers have dramatic improvements to overall printer reliability, speed and print quality - allowing for incredible levels of everyday productivity. This new line of signage printers from Epson represent a significant leap forward, helping sign-makers on any budget to get their work done right and on time.
Printer Overview
Printer Overview
- Value affordable 64" roll-to-roll signage printer
- High-speed performancephotographic-quality print speeds up to 290 sq ft/hr
- UltraChrome GS3 Inkproven 10-color solvent-based ink system with unique Red, White and Metallic Silver inks
-
Productivity Epson Precision DotTM technology allows for band-free printing at high speeds
- Easy media setup set up new media in minutes
- Simple maintenance fabric wiper and air filtration system to ensure continuous, reliable production
Epson UltraChrome GS3 Inks
- Production capacity - high-capacity ink cartridges at 700 ml per color
- Extreme color gamut - photographic image quality with the largest color gamut in its class
- Superior media compatibility - print on virtually any media type from adhesive vinyl to banner material
- Same day lamination - first solvent printers to offer same day lamination
- Environmentally responsible - no special ventilation or air purification is required.
PrecisionCore TFP Print Head
- Consistent Color - efficient, precise and repeatable performance with excellent image quality
- Precision - low vibration meniscus control for highly accurate dot shape and placement
- PrecisionCore TFP printhead - one-inch wide print head with 720 nozzles per color
- Epson Precision Dot - delivers best-in-class image quality at commercial-level print speeds
- Robust Print Head Design - designed specifically for the high-demands of production environments
| Base Printing Technology | |
| Advanced PrecisionCore TFP Print Head 10-channel, drop-on-demand, ink jet head 11-cartridge (C, M, Y, K, LC, LM, LK, Or, R with optional WT or MS) Epson Ultrachrome GS3 ink Professional-level solvent-based ink technology |
|
| Printer Nozzle Configuration | Color and Monochrome; 720 nozzles per Color Smallest droplet size is 4.2 picoliters |
| Resolutions | 1440 x 1440 dpi; 1440 x 720 dpi; 720 x 720 dpi; 720 x 360 dpi |
| Dimensions | 103" (W) x 34" (D) x 54" (H) |
| Printer Weight | 635 lbs |
|
Printer Engine Speeds Banner Draft Production Quality Vinyl Draft Production Quality White Silver |
1020 sq ft/hr 290 sq ft/hr 195 sq ft/hr N/A 195 sq ft/hr 142 sq ft/hr 135 sq ft/hr 46 sq ft/hr |
|
Media Handling Media Input Cut Sheet Size Media Core Compatibility Input roll media diameter Input roll media weight Media Weight/Thickness Roll media take-up reel Output roll media weight |
Single roll-to-roll minimum 12" wide up to 64" wide 17" x 22" up to 64" wide 2" or 3" cored media Up to 9.8" Up to 95 lbs. from 45 gsm up to 1.0 mm thick Fully automatic "wind in" or "wind out" with tension bar Up to 95 lbs. |
| Acoustic Noise Level | Approximately 59 dB(A) according to ISO 7779 |
|
Front-End RIP Workflow by ONYX |
|
| GammaPrint Pro PANTONE licensed PostScipt Language Level 3 compatible RIP by ONYX. Includes full workflow software with layout, nesting, tiling, custom media support and RIP queue functionality. The Epson SureColor S80600 is also supported by most leading third-party RIPs and workflows |
|
| Onyx GammaPrint Pro RIP Requirements |
|
| Server Workstation: Windows 7, 8 or 10 (64-bit only) 3.2 GHz Intel i7 or better 8 GB memory recommended Client Workstation Macintosh 10.5+, Windows 7, 8 or 10 (64-bit only) |
|
| Printer Interfaces | Includes as standard one Hi-Speed USB 2.0 (1.1 compatible) and one Gigabit Ethernet port |
| Epson Ultrachrome GS3 Ink | Black, Cyan Magenta, Yellow, Lt Cyan, Lt Magenta, Lt Black, Orange, Red, White, Metallic Silver |
|
Printable Area Maximum Paper Width Minimum Paper Width Left and right margins Maximum printable width |
64-inch 12-inch 0.20: (0.40" total) 63.6 -inches * The printer is designed exclusively for use with EPSON cartridges for grater reliability. |
|
Media Heating System Pre Heater Platen Heater Post Heater |
Off or 86 to 122 F (off or 30 to 50C) Off or 86 to 122 F (off or 30 to 50C) Off or 86 to 131 F (off or 30 to 55C) *Independently controlled via control panel or front- end RIP |
|
Epson Intelligent Ink Cartridge Cartridge fill volume Ink cartridge shelf life (recommended) |
700 ml each x 8 colors total 600 ml white 350 ml Silver Metallic 2 years from printed production date or 6 months after open The printer is designed exclusively for use with EPSON cartridges for greater reliability |
|
Image Permanence Ratings Full Color White Metallic |
Currently In Testing Currently in Testing Currently in Testing |
| Test Results based upson Epson Testing Labs using the ISO 18930 print surability standard. All print results are upon un-laminated prints printed on adhesive back vinyl. Durability numbers above are estimates of maximum image permanence. Your actual results may vary depending upson media type used. environmental display conditions and other factors. Epson does not warrant durability. |
|
|
Environmental Characteristics Temperature Operating Storage Relative Humidity Operating Recommended Storage Installation Requirements |
50 to 95F (10 to 35C) -4 to 104F (-20 to 40C) 20 to 80% (40 to 60% recommended) 5 to 85% (no condensation) Virtually any location with a typical air conditioning or other air ventilation system. No forced ventilation or air purification systems required. |
|
Electrical Requirements Printer Voltage Frequency Current Voltage Frequency Current Power Consumption Printer Operating Standby Heaters ON Standby Heaters OFF Sleep Power Off Operating Sleep Power Off |
Requires Two 110v Outlets AC 100-120 V, AC 200-240 V 50-60 Hz 20A at AC 110-120 V or 10A at AC 200-240 V AC 100-120 V, AC 200-240 V 50-60 Hz 1A at AC 110-120 V or 0.5A at AC 200-240 V Approx. 650W or Less Approx. 520W Approx. 30W or less Less than 3.5W Less than 0.6W or less Approx. 45W Approx. 0.3W Less than 0.6W |
