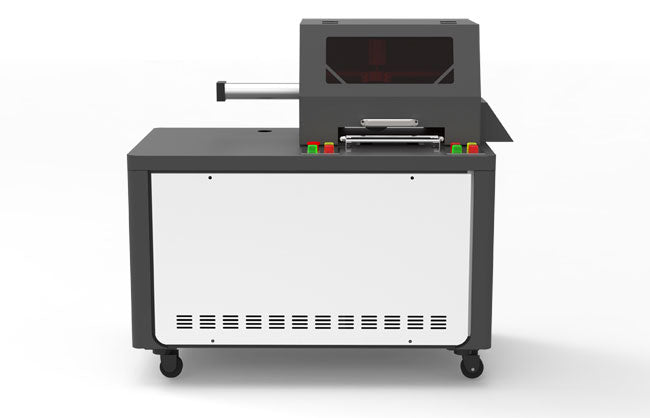

CNC Metal Automatic Angle Grinder Slotting Machine for Channel Letter

Original price $2,167.00 - Original price $2,167.00
Original price
$2,167.00
$2,167.00 - $2,167.00
Current price $2,167.00

Description:
The G20N with fully new appearance inherited all the good quality, stability and precision processing as always. Cooperated with our self-developed operation software, the practicability and durability are greatly enhanced.
The software system is independently developed by the software engineering department of Jinyuan. Based on many years of industry experience and customer feedback, and constantly improve the software's own control and human-computer interaction. Built-in closed-loop detection and common materials library can be used to compensate the length and angle according to elasticity and flexibility of different materials.

Features:
The processing length and slotting depth is precised controlled, the grinder disc abrasion is auto-detected and compensated by the software.
Solved the problem of low precision slot, low work efficiency, material waste, low safety for manual slotting, is the indispensable equipment for Channel Letter industry.
Adopted double feeding shelf design, cut down the producing time for mass production.

Specifications

Model MBM-JY-A20N
Slotting Method Angle Grinder Slot
Suitable Material All kinds of metal plate material, Aluminum Profile, Acrylic
Width of Material 20-200mm (0.79-7.87in)
Thickness of Material Metal 0.3~1.5mm; Acrylic 3mm
Beginning Distance of Bending ±0.1mm
File Format .plt .dxf
Power AC220V, 50Hz, 1.2KW
